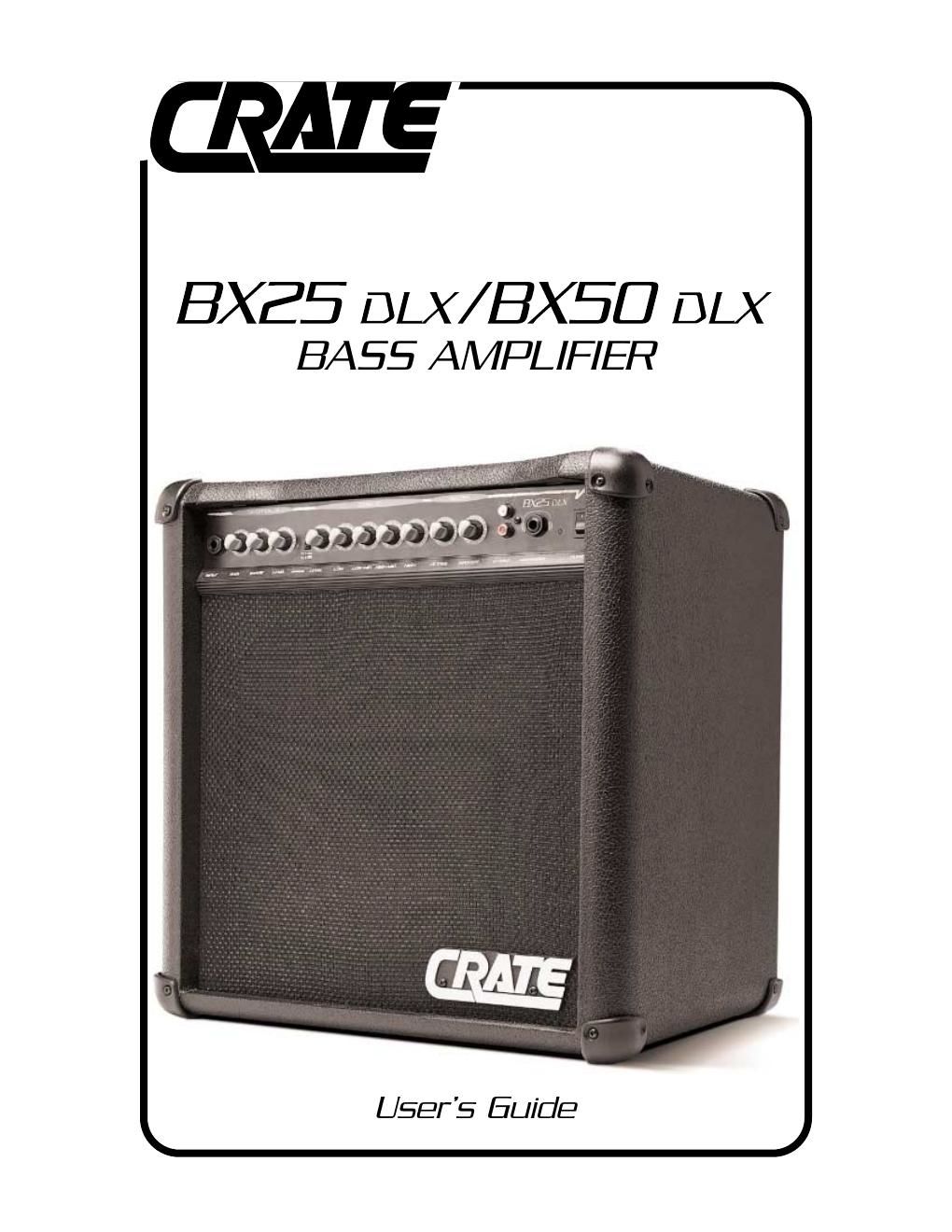

Crate bx 50DLX manual en

This is the 8 pages manual for crate bx 50DLX manual en.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 8
left right
crate bx 50DLX manual en

Extracted text from crate bx 50DLX manual en (Ocr-read)


Page 1

BASS AMPLIFIER 2 Table Of Contents: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 The Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . .4,5 Some Suggested Settings: . . . . . . . . . . . . . . . . . . . . .6 System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . .7 Technical Specifications . . . . . . . . . . . . . . . .back cover IMPORTANT SAFETY INSTRUCTIONS -˘READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS. -˘DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. FOR PROPER OPERATION, THIS UNIT REQUIRES 3-ť (75mm) OF WELL VENTILATED SPACE AROUND HEATSINKS AND OTHER AIR FLOW PROVISIONS IN THE CABINET. -˘DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS. -˘CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS. -˘ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS. -˘PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED. -˘UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME. -˘ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERA- TION AND TO AVOID INJURY. -˘THIS APPARATUS DOES NOT OPERATE NORMALLY AND REQUIRES SERVICE WITH ANY PHYSICAL DAMAGE FROM IMPACT OR ANY EXPOSURE TO MOISTURE. -˘SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL. -˘OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PRO- TECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOIS- TURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" -śES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES.-ť "REFERREZ-VOUS AU MANUAL D'UTILISATION" EXPLANATION OF GRAPHICAL SYMBOLS: EXPLICACION DE SIMBOLOS GRAFICOS: EXPLICATION DES SYMBĂ-LES GRAPHIQUES: "DANGEROUS VOLTAGE" -śVOLTAJE PELIGROSO-ť "DANGER HAUTE TENSION" == PRECAUCIONRIESGO DE CORRIENTAZO NO ABRA PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS ELECTRICAS, NO PERMITA QUE ESTE APARATO QUEDE EXPUESTO A LA LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO. NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE.

Page 2

BASS AMPLIFIER 3 Congratulations! You are now the proud owner of the compact but powerful Crate BX25DLX/BX50DLX Bass Amplifier. The BX25DLX/BX50DLX features two different channels: a distortion channel, featuring Crate-™s exclusive Shape control for quick and easy access to the tone you need, and a clean channel with a four-band rotary EQ. Another unique and valuable feature of this amplifier is the Octave control. This feature electronically creates a second signal that is one octave lower than the original signal. An active electronic tuner, conveniently located on top of the amplifier, allows you to get in tune and stay in tune -śon the fly.-ť Front panel jacks are provided for connecting a CD player and a pair of headphones, thereby optimizing your practice time. Like all Crate products, your BX25DLX/BX50DLX is designed by musicians and built using only the best components. Extensive testing at the hands (and ears) of skilled technicians and musicians insures you that this amplifier is the absolute best it can be. In order to get the most out of your new bass amp, we urge you to check out the information in this manual before you begin playing. And thank you for choosing Declaration Of Conformity #28, Effective 01-01-2001 Manufacturer-™s Name:SLM Electronics Production Facility:11880 Borman Drive, St. Louis, MO 63146, USA Production Facility:700 Hwy 202 W, Yellville, AR 72687, USA Shipping Facility:1400 Ferguson Ave., St. Louis, MO 63133, USA Office Facility:1400 Ferguson Ave., St. Louis, MO 63133, USA Product Type:Audio Amplifier Complies with Standards: LVD:92/31/EEC, 93/68/EEC, & 73/23/EWG Safety:EN60065 EMC:EN55013, EN55020, EN55022, EN61000-3-2, & EN61000-3-3 Supplementary information provided by your local Sales & Services Office or: SLM Electronics - R & D Engineering 1901 Congressional Drive, St Louis, MO 63146, USA Tel.: 314-569-0141, Fax: 314-569-0175
