Extracted text from crate bt 50 Parts List Chassis Assembly 16 703 PL 1 (Ocr-read)

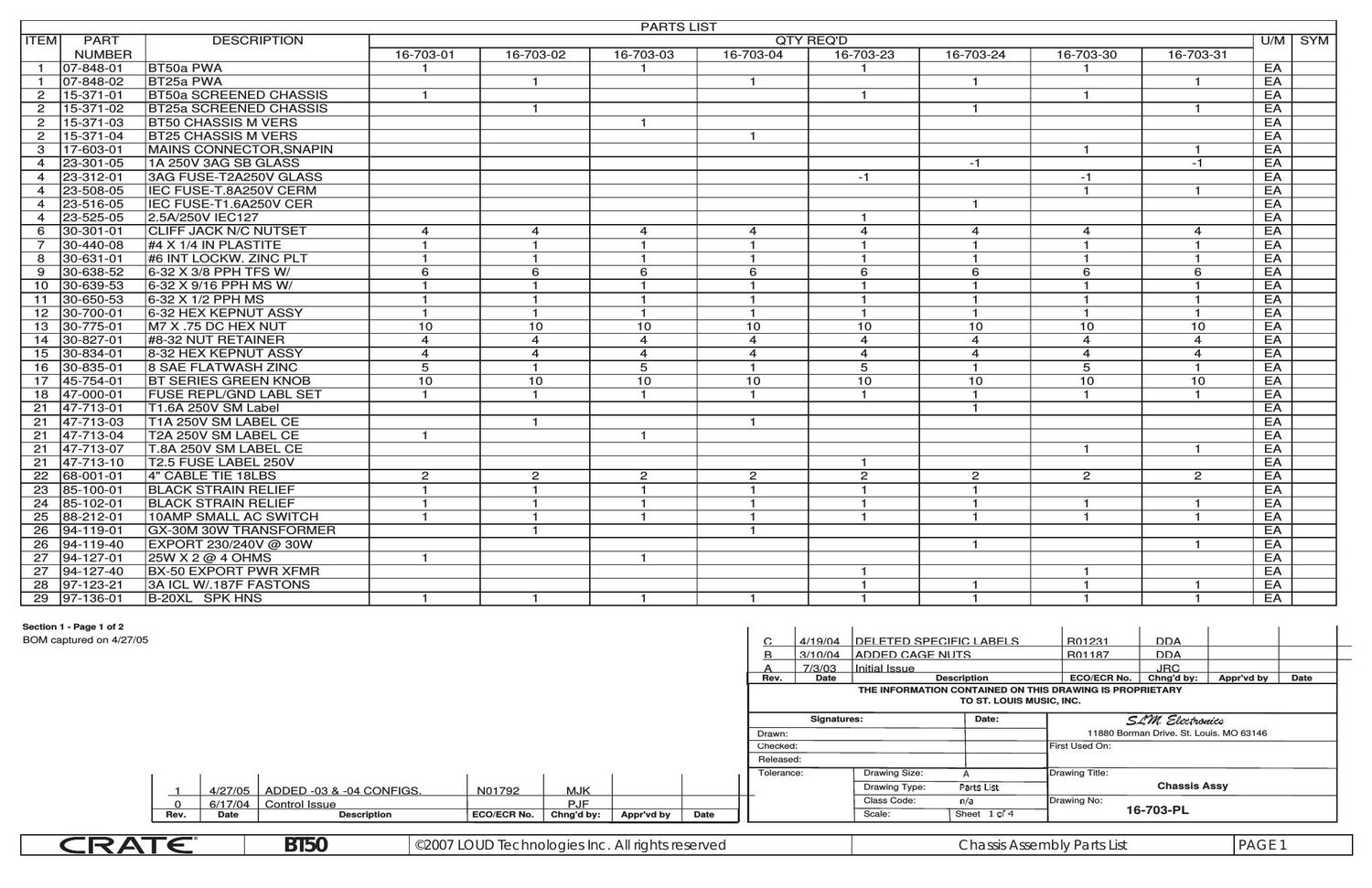

Page 1
PARTS LIST
ITEM PART DESCRIPTION QTY REQD U/M SYM
NUMBER 16-703-01 16703-02 16-703-03 16-703-04 16703-23 16-703-24 16-703-30 16703431
1 07-848-01 BT50a PWA 1 1 1 1 EA
1 07-848-02 BT25a PWA 1 1 1 1 EA
2 15-371-01 BT50a SCREENED CHASSIS 1 1 1 EA
2 15-371-02 BT25a SCREENED CHASSIS 1 1 1 EA
2 15-371-03 BT50 CHASSIS M VERS 1 EA
2 15-371-04 BT25 CHASSIS M VERS 1 EA
3 17-603-01 MAINS CONNECTOR,SNAPIN 1 1 EA
4 23-301-05 1A 250V 3AG SB GLASS -1 -1 EA
4 23-312-01 3AG FUSE»T2A250V GLASS >1 -1 EA
4 23-508-05 IEC FUSE-T.8A250V CERM 1 1 EA
4 23-516-05 IEC FUSE-T1.6A25OV CER 1 EA
4 23-525-05 2.5A/250V IECI27 1 EA
6 30-301-01 CLIFF JACK N/C NUTSET 4 4 4 4 4 4 4 4 EA
7 30-440-08 #4 X 1/4 IN PLASTITE 1 1 1 1 1 1 1 1 EA
8 30-631-01 #6 INT LOCKW. ZINC PLT 1 1 1 1 1 1 1 1 EA
9 30-638-52 6-32 X 3/8 PPH TFS W/ 6 6 6 6 6 6 6 6 EA
1O 30-639-53 6-32 X 9/16 PPH MS W/ 1 1 1 1 1 1 1 1 EA
11 30-650-53 6-32 X 1/2 PPH MS 1 1 1 1 1 1 1 1 EA
12 30-700-01 6-32 HEX KEPN UT ASSY 1 1 1 1 1 1 1 1 EA
13 30-775-01 M7X.75 DC HEX NUT 10 10 1O 10 10 10 10 10 EA
14 30-827-01 #8»32 NUT RETAINER 4 4 4 4 4 4 4 4 EA
15 30-834-01 8-32 HEX KEPN UT ASSY 4 4 4 4 4 4 4 4 EA
16 30-83501 8 SAE FLATWASH ZINC 5 1 5 1 5 1 5 1 EA
17 45-754-01 BT SERIES GREEN KNOB 1O 10 1O 1O 10 10 10 10 EA
18 47-000-01 FUSE REPL/GND LABL SET 1 1 1 1 1 1 1 1 EA
21 47-71301 T1 .6A 250V SM Label 1 EA
21 47-71303 T1A 250V SM LABEL CE 1 1 EA
21 47-71304 T2A 250V SM LABEL CE 1 1 EA
21 47-71307 T.8A 250V SM LABEL CE 1 1 EA
21 47-71310 T2.5 FUSE LABEL 250V 1 EA
22 68-001-01 4" CABLE TIE 18LBS 2 2 2 2 2 2 2 2 EA
23 85-100-01 BLACK STRAIN RELIEF 1 1 1 1 1 1 EA
24 85-102-01 BLACK STRAIN RELIEF 1 1 1 1 1 1 1 1 EA
25 88-21201 10AMP SMALL AC SWITCH 1 1 1 1 1 1 1 1 EA
26 94-119-01 GX»30M 30W TRANSFORMER 1 1 EA
26 94-119-40 EXPORT 230/240V @ 30W 1 1 EA
27 94-127-01 25W X 2 @ 4 OHMS 1 1 EA
27 94-127-40 BX-5O EXPORT PWR XFMR 1 1 EA
28 97-123-21 3A ICL W/.187F FASTONS 1 1 1 1 EA
29 97-136-01 B»2OXL SPK HNS 1 1 1 1 1 1 1 1 EA
Section 1 - Page 1 of 2
BOM captured on 4/27/05 C 4/19/04 DELETED SPECIFIC LABELS R01231 DDA
R 3/10/04 ADDFI) CAGF NUTS R01187 DDA
A 7/3/03 Initial Issue .IRC
Rev. Date Description ECO/ECR No. Chng'd by: Appr'vd by Date
THE INFORMATION CONTAINED ON THIS DRAWING IS PROPRIETARY
TO ST. LOUIS MUSIC, INC.
Signatures: Date: 3m 5W
Drawn: 11880 Borman Drive. St. Louis. MO 63146
Checked: First Used On:
Released:
Tolerance: Drawing Size: A Drawing Title:
1 4/97/05 ADDED .03 x. .04 CONFIGS N01799 MJK DaWing Type: Parts 5 ChaSSis ASSY
0 6/17/04 Control Issue PJF Class Code: n/a Drawing No: 16 703 PL
Rev. Date Description ECO/ECR No. Chng'd by: Appr'vd by Date Scale: I Sheet 1 of 4 ' '
C RAT-‚¬W
B150
@2007 L0 UD Tec hnologies Inc . All rig hts reserved
ChassisAssembly Pa rts List
PAGEl
Page 2
PARTS LIST
ITEM PART DESCRIPTION QTY REQD U/M SYM
NUMBER 16-703-01 16-703-02 16-703-03 16-70304 16703-23 16-703-24 16-703-30 16703-31
30 97-152-04 4" .187/.187 BLK WIRE 1 1 1 1 EA
31 97-153-80 8" .187/.250 18GA WHT 1 EA
32 97-15381 8" .187/.250 18GA BLK 1 EA
33 97-169-02 8" GRN/YEL .187/RING 1 EA
34 99-07901 9' AC CORD ASSY EA
34 99-249-10 9' NON-DETATCH JAPAN EA
Section 1 - Page 2 of 2
BOM captured on 4/27/05
1 4/27/05 See sheet 1 for revision historv
Rev. Date Description ECO/ECR No. Chng' d by: Appr' vd by Dale
THE INFORMATION CONTAINED ON THIS DRAWING IS PROPRIETARY
TO ST. LOUIS MUSIC, INC.
Signatures: Dale: 5m 5W
Drawn: 11880 Borman Drive. St. Louis. MO 63146
Checked: First Used On:
Released:
Tolerance: Drawing Size: A Drawing Title:
Drawing Type: Parts List Chassis Assy
Class Code: n/a Drawing No:
Scale: I Sheet 2 of 4 1 6'703'PL
CRAT-‚¬ B150 @2007 LOUD Technologies |nc.A|| rights reserved ChassisAssembly PartsList PAGE2
