Crate bt 50 Parts List Bass Amplifier 00 560 PL 1

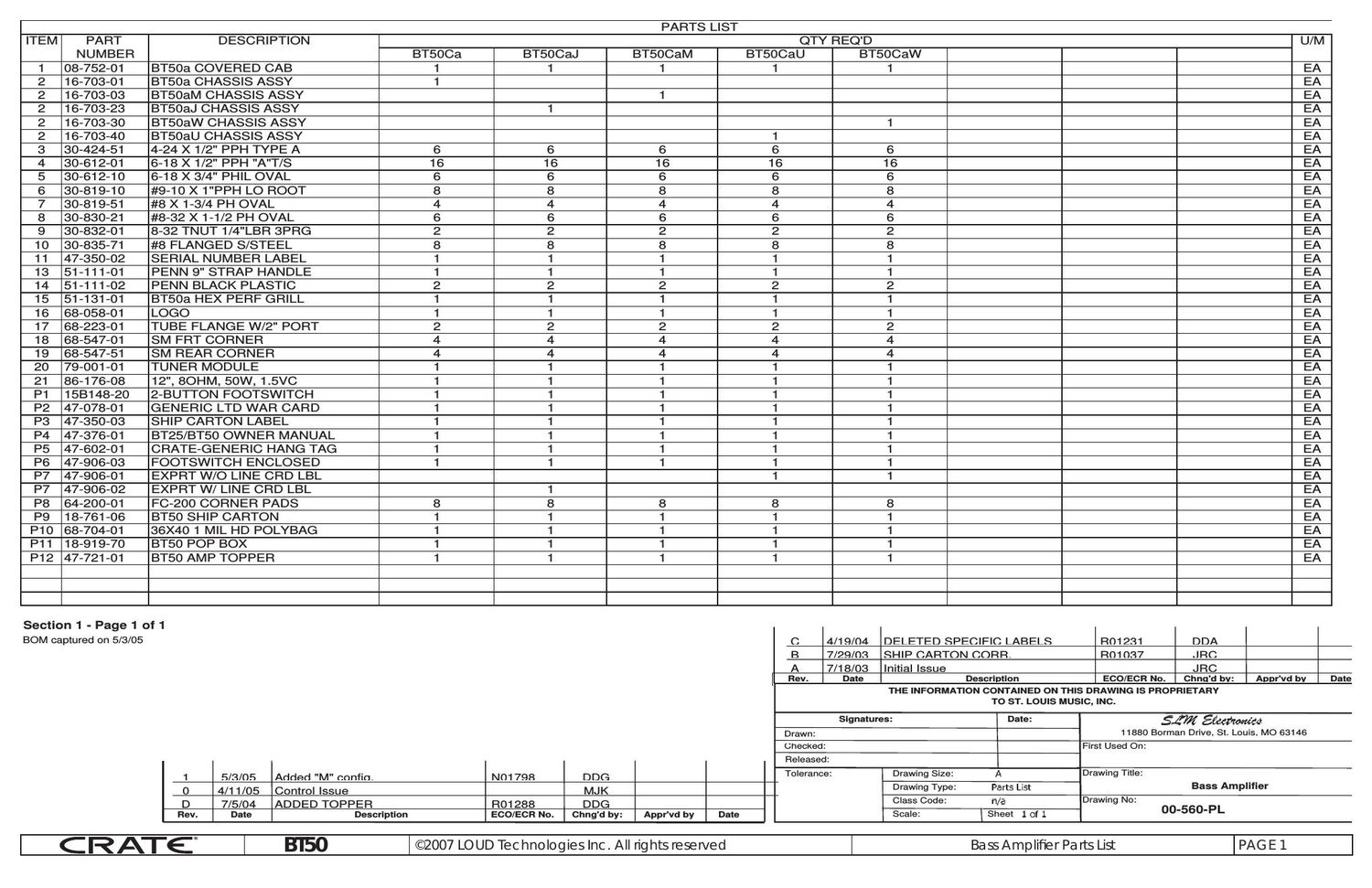

Page 1

PARTS LIST

ITEM PART DESCRIPTION QTY REQD U/M
NUMBER BT500a BT50CaJ BTSOCaM BTSOCaU BTSOCaW
1 08-75201 BTSOa COVERED CAB 1 1 1 1 1 EA
2 16-703-01 BT50a CHASSIS ASSY 1 EA
2 16-703-03 BTSOaM CHASSIS ASSY 1 EA
2 16-70323 BTSOaJ CHASSIS ASSY 1 EA
2 16-703-30 BT50aW CHASSIS ASSY 1 EA
2 16-70340 BT50aU CHASSIS ASSY 1 EA
3 30-424»51 4-24 X 1/2" PPH TYPE A 6 6 6 6 6 EA
4 30-612»01 6-18 X 1/2" PPH "A"T/S 16 16 16 16 16 EA
5 30-612-10 6-18 X 3/4" PHIL OVAL 6 6 6 6 6 EA
6 30-819»10 #940 X 1"PPH LO ROOT 8 8 8 8 8 EA
7 30-819»51 #8 X 143/4 PH OVAL 4 4 4 4 4 EA
8 30-830»21 #8432 X 1»1/2 PH OVAL 6 6 6 6 6 EA
9 30-832-01 8432 TNUT 1/4"LBR 3PRG 2 2 2 2 2 EA
10 30-835-71 #8 FLANGED S/STEEL 8 8 8 8 8 EA
11 47-35002 SERIAL NUMBER LABEL 1 1 1 1 1 EA
13 51-111-01 PENN 9" STRAP HANDLE 1 1 1 1 1 EA
14 51-111-02 PENN BLACK PLASTIC 2 2 2 2 2 EA
15 51-131-01 BTSOa HEX PERF GRILL 1 1 1 1 1 EA
16 68-05801 LOGO 1 1 1 1 1 EA
17 68-223-01 TUBE FLANGE W/2" PORT 2 2 2 2 2 EA
18 68547-01 SM FRT CORNER 4 4 4 4 4 EA
19 68647-51 SM REAR CORNER 4 4 4 4 4 EA
20 79-001-01 TUNER MODULE 1 1 1 1 1 EA
21 861 76-08 12", BOHM, 50W, 1.5VC 1 1 1 1 1 EA
P1 158148-20 2-BUTTON FOOTSWITCH 1 1 1 1 1 EA
P2 47-O78»01 GENERIC LTD WAR CARD 1 1 1 1 1 EA
P3 47-350-03 SHIP CARTON LABEL 1 1 1 1 1 EA
P4 47-376-01 BT25/BT50 OWNER MANUAL 1 1 1 1 1 EA
P5 47-602-01 CRATE-GENERIC HANG TAG 1 1 1 1 1 EA
P6 47-90603 FOOTSWITCH ENCLOSED 1 1 1 1 1 EA
P7 47906-01 EXPRT W/O LINE CRD LBL 1 1 EA
P7 47-906-02 EXPRT W/ LINE CRD LBL 1 EA
P8 64-200-01 FC-200 CORNER PADS 8 8 8 8 8 EA
P9 18-761 -06 BT50 SHIP CARTON 1 1 1 1 1 EA
P10 68-704-01 36X4O 1 MIL HD POLYBAG 1 1 1 1 1 EA
P11 18-919»7O BT50 POP BOX 1 1 1 1 1 EA
P12 47-721 01 BT50 AMP TOPPER 1 1 1 1 1 EA
Section 1 - Page 1 of 1
BOM captured on 5/3/05 C 4/19/04 DELETED SPECIFIC LABELS R01231 DDA
R 7/99/02 SHIP CARTON CORR Rm n37 .IRC
A 7/18/03 Initial Issue .IRC
Rev. Date Description ECO/ECR No. Chnq'd bv: ADpr'vd bv Date

TO ST. LOUIS MUSIC, INC.

THE INFORMATION CONTAINED ON THIS DRAWING IS PROPRIETARY

Signatures: Date: 5% 53W

Drawn: 1 1880 Borman Drive. St. Louis. MO 63146
Checked: First Used On:
Released:

1 5/3/05 Added "M" confia. NO1798 DDG Tolerance: Drawing Size: A Drawing Title:

0 4/1 1 ms Cnnlrnl Issue M.IK Drawing Type: Parts LIst Bass Amplifier

D 7/5/04 ADDED TOPPER RO1288 DDG Class Code: n/a Drawing No:

Rev. Date Description ECO/ECR No. Chngd by: Appr'vd by Date Scale: I Sheet 1 of 1 00-56043!-

B150

©2007 LO UD Tec hnologies Inc . All rig hts reserved

BassAmpIifier Pa ItS Ust

PAGEl

Page 2

C 4/19/04 DELETED SPECIFIC LABELS R01231 DDA
B 7/29/03 SHIP CARTON CORR. R01037 JRC
A 7/18/03 Initial Issue JRC
Rev. Date Description ECO/ECR Na. Chnq' d bv: Annr' vd bv Dale
THE INFORMATION CONTAINED ON THIS DRAWING IS PROPRIETARY
TO ST. LOUIS MUSIC, INC.
Signatures: Date: 5% 556W
Drawn: 11880 Borman Drive. St. Louis. MO 63146
Checked: First Used On:
Released:
Tolerance: Drawing Size: A Drawing Title:
Drawing Type: part5 List Bass Amplifier
Class Code: n/a Drawing No:
I by Date Scale: I Sheet 1 of 1 OO'SGO'PL

CRAT-�� B150 @2007 LOUD Technologies |nc.A|| rights reserved BassAmplifierParts Ust PAGE2
