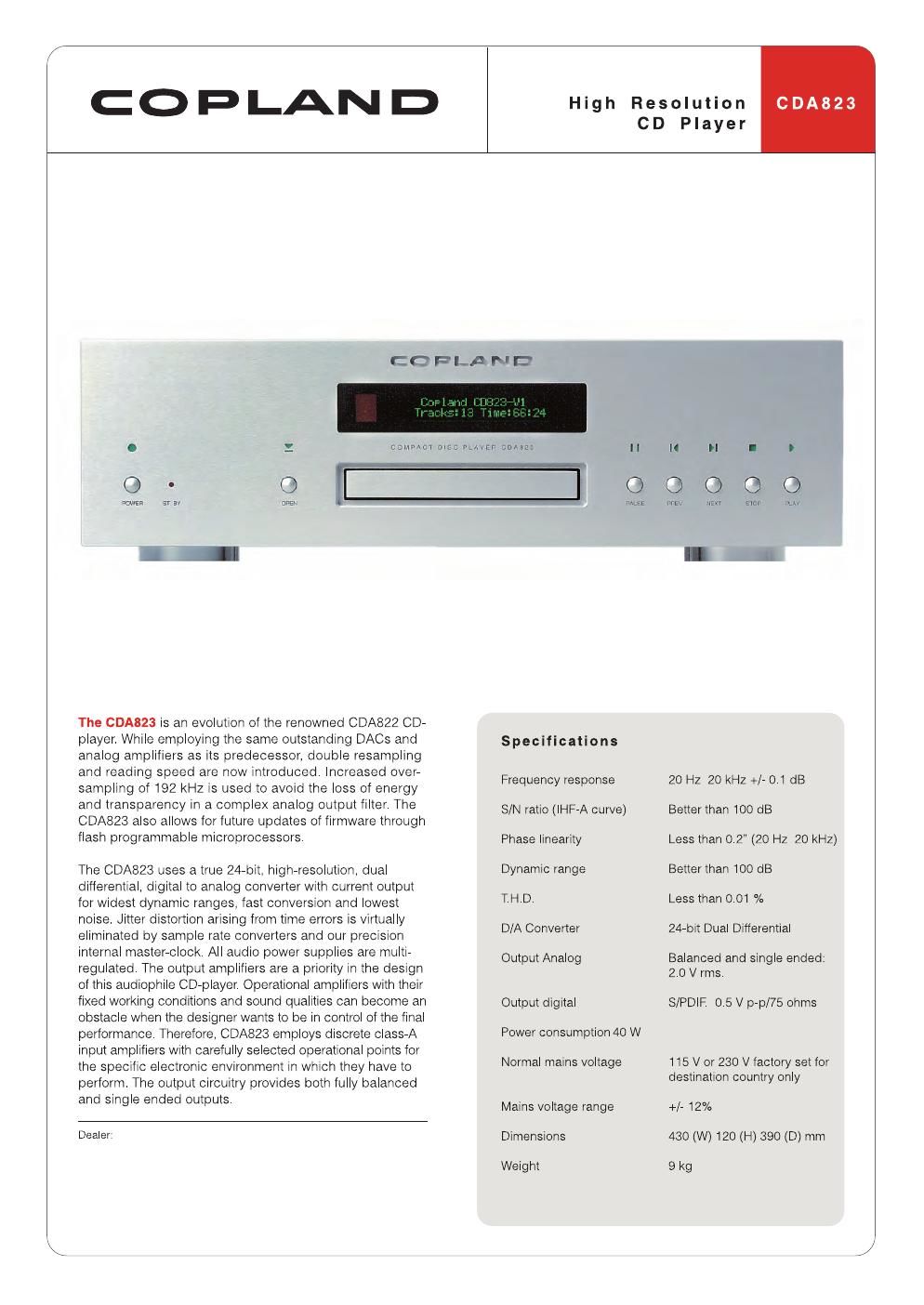

CCPLAND

High Resolution
CD Player

CDA823

The CDA823 is an evolution of the renowned CDA822 CD7
player While employing the same outstanding DACs and
analog amplifiers as its predecessor, double resampling
and reading speed are now introduced. Increased over,
sampling of 192 kHz is used to avoid the loss of energy
and transparency in a complex analog output filter. The
CDA823 also allows for future updates of firmware through
flash programmable microprocessors.

The CDA823 uses a true 24bit, higheresolution, dual
differential, digital to analog converter with current output
for widest dynamic ranges. fast conversion and lowest
noise. Jitter distortion arising from time errors is virtually
eliminated by sample rate converters and our precision
internal mastereclock. All audio power supplies are multie
regulated. The output amplifiers are a priority in the design
of this audiophile (JD-player. Operational amplifiers with their
fixed working conditions and sound qualities can become an
obstacle when the designer wants to be in control of the final
performance. Therefore. CDA823 employs discrete class-A
input amplifiers with carefully selected operational points for
the specific electronic environment in which they have to
perform. The output circuitry provides both fully balanced
and single ended outputs

Dealer:

Specifications

Frequency response
S/N ratio (lHF-A curve)
Phase linearity
Dynamic range

T H D.

D/A Converter

Output Analog

Output digital
Power consumption 40 W

Normal mains voltage

Mains voltage range
Dimensions

Weight

20 Hz 20 kHz +/* 0.1 dB
Better than 100 dB

Less than 0 2" (20 Hz 20 kHz)
Better than 100 dB

Less than 0 01 %

24-bit Dual Differential

Balanced and single ended:
2.0 V rms.

S/PDIF 0 5 V pep/75 ohms

115 V or 230 V factory set for
destination country only

+/712%
430 (W) 120 (H) 390 (D) mm

9kg
