coby cx 9 owners manual

Extracted text from coby cx 9 owners manual (Ocr-read)

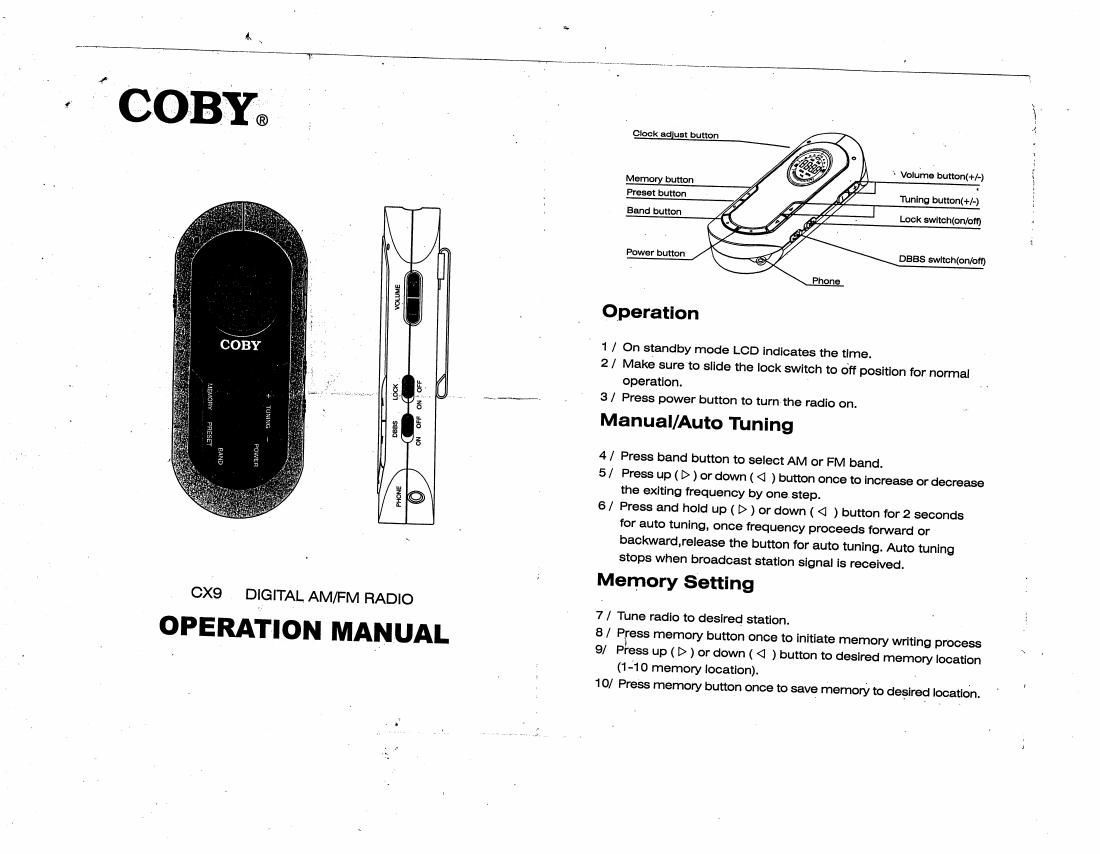

Page 1

on OFF ON OFF

0X9

OPERATION MANUAL

DIGITAL AM/FM RADIO


Volume button(+/-)

Tuning button(+/-)

Lock swlrch(on/ofr)

Deas switcmon/ofl')

Operation

1 / On standby mode LCD Indicates the time.

2 / Make sure to slide the lock switch to off position for normal
operation.

3 / Press power button to turn the radio on.

Manual/Auto Tuning

4/ Press band button to select AM or FM band.

5/ Press up ( I> ) or down (<1 ) button once to increase or decrease
the exiting frequency by one step.

6/ Press and hold up ( I> ) or down ( <1 ) button for 2 seconds
for auto tuning, once frequency proceeds forward or
backward,release the button for auto tuning. Auto tuning
stops when broadcast station signal is received.

Memory Setting

7 / Tune radio to desired station.
8/ Press memory button once to initiate memory writing process \
9/ Press up ( l> ) or down ( <1 ) button to desired memory location

(1 410 memory location).

10/ Press memory button once to save memory to desired location.

Page 2

n . r.
m _._

11/ To recall the 'memory ,press preset button.
12/ Last AM/FM frequency and memory can be preserved, if the

time of replacing the batteries Is not more than 30 seconds(
radio off mode).

Time Setting .

13/ Turn off the power .

14/ Press clock-adjust button for 2 seconds, LCD hours digit will
bllnk. Press up ( D ) or down ( 4 ). button to adjust hour
setting. then press clock-adjust button once, LCD minutes digit

will blink. Press up ( i> )or down (<1 )button to adjust
minute time setting.

Volume level setting

15/ Press volume button (+) or (-) once to Increase or decrease
the output level by one step.

DBBS switch .

1 6/ Slide the DEBS switch on or off for dynamic bass boost system
function on or off.

Other function

17/ Lock switch is designed to prevent any unwanted function
change during radio on or off mode. No other function buttons
operate on lock mode, except DBBS function. Switching on
lock mode LCD displays the locker symbol. .

Specification

FM frequency coverage .
AM frequency coverage .
10 AM and 10 FM memories in 2 separate band
Maximum output (stereo headphone)
Dc 3V with 2pcs 1.5V AAA size batteries.

. 37.3 -108.1Mhzv
520 - 172!)an

. 20mw + 20mw(320hm)

Dimension '
Weight ..
Accessories Included

(D)21.5mm (wynfsrnm (H)l 06.5mm
. 709 (Main unit only)
...Profeeslonel»hlph performance earphone

COBY® 90 DAY LIMITED WARRANTY

COBV ELECTRONICS CORP.(COBY) warrants this product to the original ,purchaser to be free from
defects in material or workmanship under normal use for 90 DAYS from the date of original purchase.
COBY agrees under this warranty, to repair or replace it with a new or reconditioned product at no
additional charge. Our warranty does not cover any product which has been subject to neglect.
unreasonable use. accident, violation of operating instruction or any product that has been repaired
or modified by an unauthorized service agent. To obtain factory servlce, return this unltfreight-prepaid
to the address shown below within the duration of this warranty. Enclose $6.00 for each item in the
form of money order made payable to obey ELECTRONICS cone. to cover the cost of shipping and
handing. Also, include a copy of the sales receipt to show proof of purchase and a detailed description
of the problem. The unit(s) must be packaged In such a way as to reasonably protect it frompossible
shipping damage. For further information write to.

COBY ELECTRONICS CORP.
Customer Service Dept
56-65 Rust street. 1
Maspeth, N.Y. 1131a

COBV s liability under any legal theory for any loss damage in any way related to this product shall
not exceed the sales price-of this product. In no event shall COBY be liable for any incidental or
consequential damages resulting from the use of this product, or inability to use this product. Repair
or replacement as provided under this warranty is the exclusive right of the consumer.'Except to the
extent prohibited by law. no express or implied warranty of merchant ability or fitness for a particular
purpose on this product shall be extended beyond the period of this warranty. Some States prohibit
the exclusion or limitation of Incidental or consequential damages, so that the above limitation or
exclusion may not apply to you.Thls warranty gives you specific rights, and you may also have other
rights which may vary from State to State.
