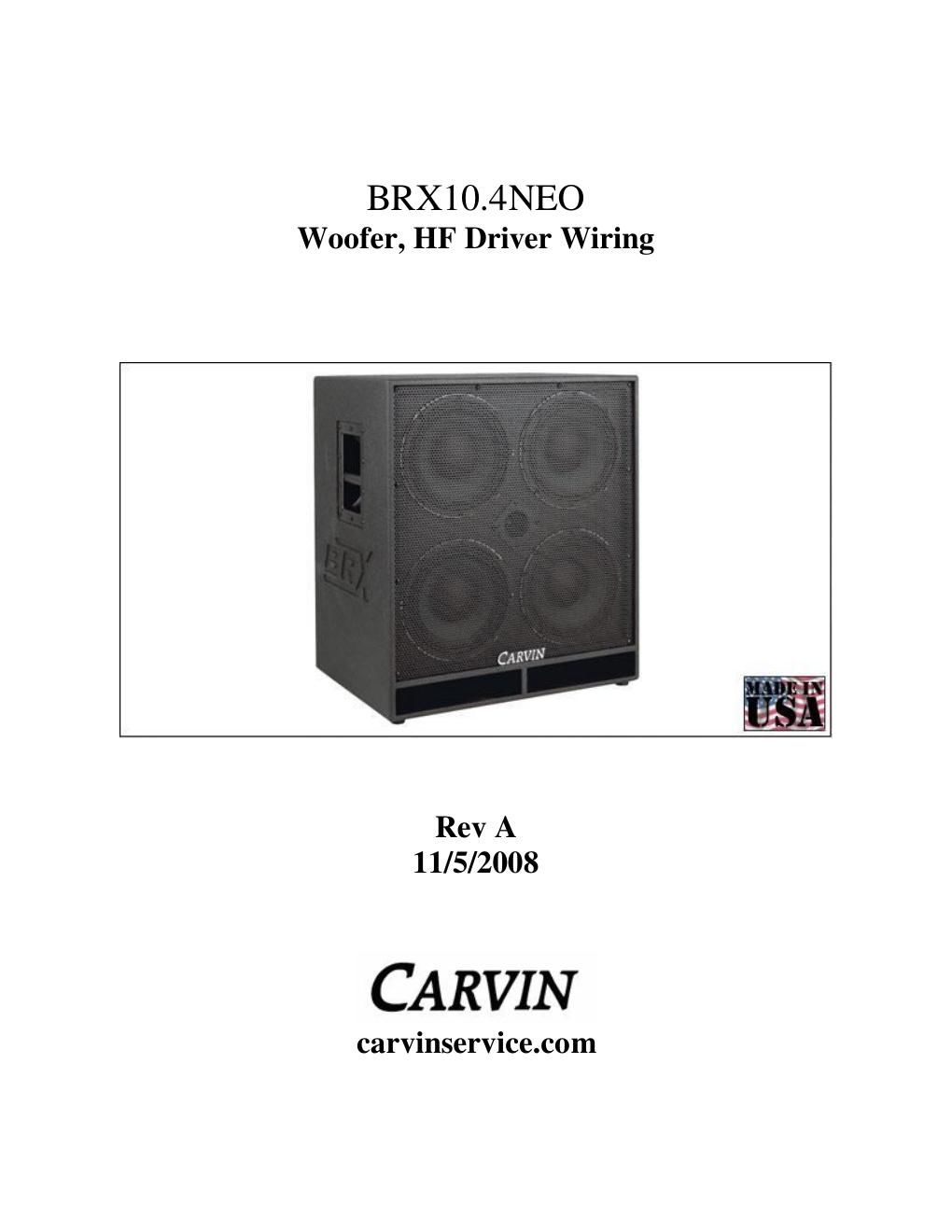

Page 1
Front of Crossover BRX10.4
BRX10.4
Under Jack Plate
Back Under
Connect to HF Driver
Blue (+)
White ( -)
HFD10
Connect the Blue and White wir es to the HF driver. I am holding the wires in my
hand to ma ke it easier for you to see wh ich wire to connect to the speaker .
Connect to Woofer s (4 )
White (2) ( -)
Red (2) (+)
NE10 -4 (4 speakers)
Comments or questions email us at carvinservice@carvin.com
