CARVER C-SOO

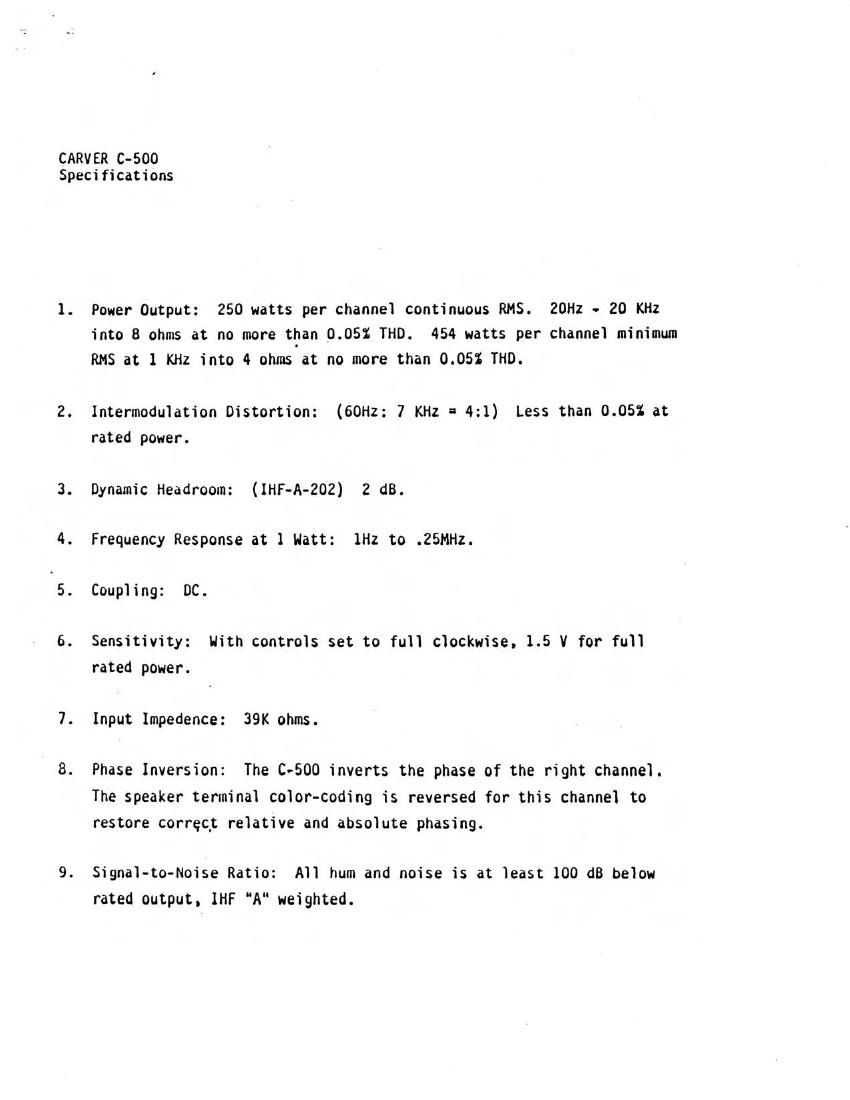

Specifications
Power Output: 250 watts per channel continuous RMS. 20Hz - 20 KHz
into 8 ohms at no more than 0.051 THD. 454 watts per channel minimum
RMS at 1 KHz into 4 ohms at no more than 0.05% THD.
Intermodulation Distortion: (60sz 7 KHz = 4:1) Less than 0.05% at
rated power.
Dynamic Headroom: (INF-A-ZOZ) 2 dB.
Frequency Response at 1 Matt: 1H2 to .ZSMHZ.
Coupling: DC.
Sensitivity: Hith controls set to full clockwise. 1.5 V for full
rated power.
Input Impedance: 39K ohms.
Phase Inversion: The C-500 inverts the phase of the right channel.
The speaker terminal color-coding is reversed for this channel to
restore correct relative and absolute phasing.
Signal-to-Noise Ratio: All hum and noise is at least 100 dB below
rated output. IHF A weighted.
C-SOO Supply Fusing and Protection
Protection is accomplished by the following:
1) Thermal switch on heatsink: will turn unit off (LEDS go off)
if heatsink exceeds temp. threshold. Will stay off usually
about 5 minutes. Install 'b0xer' fans on heatsink if thermal
switch cuts out.
2) Input Clampers: Will cut signal off if it exceeds clamper
threshold. Flashers will come on, sound will go off, for
about 3-5 seconds.
3) Supply Fuses: Primary and secondary are fused. Fuses are
as follows:
ffifififil
ééé
1: Line fuse (primary)
- AGC 10 (long. 10 amp) (5 amp for 220V)
- Only blows if bridge rectifier shorted.
2: Negative supply fuse (secondary)
- AGX 5 (short, 5 amp) for 8 ohm loads
AGX 8 (short, 8 amp) for 4 ohm or mono.
May blow on musical peaks, indicated by badly
distorted output after clamper lets go.
- Hill blow if output transistor is shorted.
3: Positive supply fuse (secondary)
- Same as #2.
