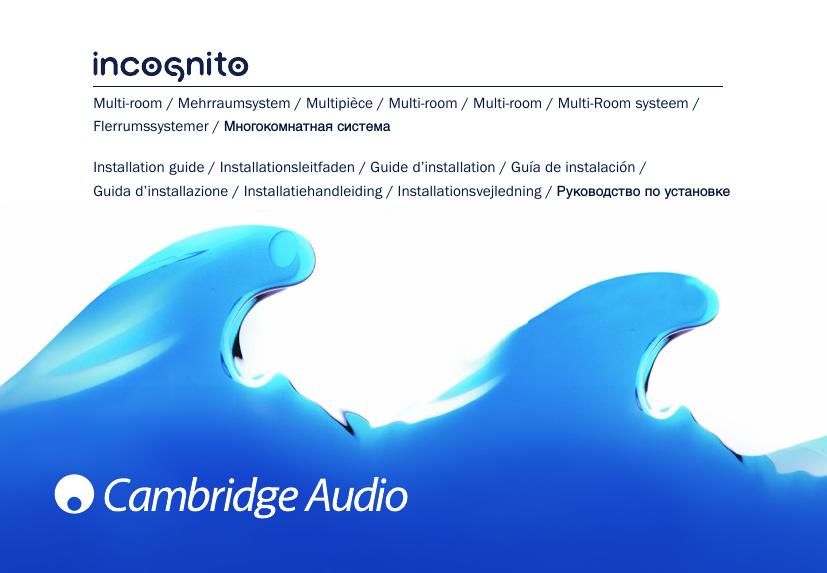

Page: 1 / 194
left right
cambridgeaudio incognito owners manual

Extracted text from cambridgeaudio incognito owners manual (Ocr-read)


Page 1

2 Incognito multi-room Introduction...................................................................................3 Safety precautions ........................................................................4 Audio connections .........................................................................6 Video connections .........................................................................7 Source connections ......................................................................8 Sub-zones ......................................................................................9 Advanced system options ............................................................10 Local source connections ........................................................10 AS10 active speakers...............................................................11 Connecting an external amplifier / active subwoofer to your system ..........................................................................12 C C T V .......................................................................................12 Larger systems ............................................................................13 Planning your system ...................................................................14 Pre-installation notes...................................................................16 System specifications..................................................................19 F A Q s ............................................................................................22 Limited warranty ..........................................................................23 System details .............................................................................24 Installer details ............................................................................25 CONTENTS English .........................................................................................................2 Deutsch .....................................................................................................26 Français .....................................................................................................50 Español ......................................................................................................74 Italiano .......................................................................................................98 Nederlands .............................................................................................122 Dansk ......................................................................................................146 Русский ....................................................................................................170

Page 2

Incognito Multi-Room Incognito multi-room 3 Incognito multi-room The IIncognito mmulti-rroom ssystem iis aa wwhole-hhouse eentertainment system ccapable oof ddistributing aaudio aan d vvideo* tthroughout aa hhome. The system consists of KP10 keypads with built-in amplifiers connected to a central AH10 audio hub unit by Cat-5 /5e cable. Source components (CD players, DVD players etc) from almost any manufacturer can be used and are connected to the AH10 hub unit by standard stereo RCA /phono leads. Sources connected to the central hub are distributed to the remote rooms (throughout the guide referred to as main and sub-zones), so that different rooms may listen to different things at the same time. The KP10 keypads are mounted in-the-wall in standard back-boxes and connected to in-wall, in-ceiling or conventional speakers with standard speaker cable. The keypads do not require local power and are powered via the cable from the hub. The AH10 hub and KP10 keypad utilize A-BUS TMtechnology, and can be switched between Incognito A-BUS or standard A-BUS mode (switches located on the underside of the AH10 and rear of KP10 respectively). A-BUS is a standard which provides compatibility between systems from various manufacturers. When using Incognito A-BUS mode and our own keypads, some extra features are possible such as changing sources from the keypad itself and the fitment of local input modules. When used with other A-BUS keypads it should be set to standard A-BUS mode or they will not work. If video distribution is required a VH10 video switcher can be added which sends video over RG6 / CT100 co-axial cable to each room required. Again, different rooms can watch different things at the same time.One AH10 hub supports four main-zones and four sub-zones (eight rooms in total). Each sub-zone output is tied to a main zone output and always receives the same source as its main zone. Sub-zones are used for instances such as en-suite bathrooms (the bedroom being a main zone) where it is desired to to have an area that automatically follows the same source as another but can be independently turned on and off, has individual bass and treble etc. Up to four AH10 (and VH10 where fitted) can be chained for a system maximum of 16 main zones plus 16 sub-zones. Enjoy ! Matthew Bramble Technical Director * requires VH10 video switcher Incognito is a trademark of Cambridge Audio Ltd. All rights reserved. A-BUS is a registered trademark of LeisureTech Electronics Pty Ltd Australia INTRODUCTION
