Cambridgeaudio incognito lk 10 owners manual

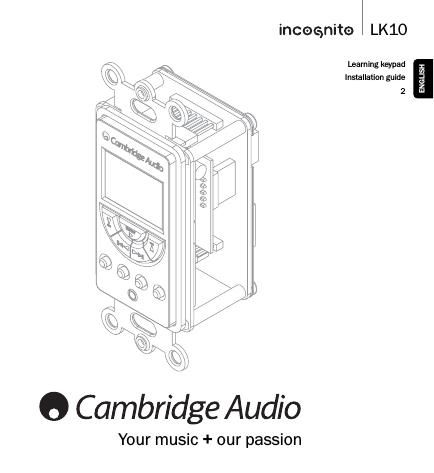

Page 1

Contents 2 Introduction.....................................................3 System setup...................................................4 Installation notes............................................6 Keypad overview.............................................8 On-screen display............................................9 Cloning from the remote control...................10 Settings menus.............................................13 Troubleshooting............................................18 Limited warranty...........................................19

Page 2

Thank you for purchasing this Cambridge Audio Incognito product. Incogni\ to is a cost- effective, modular based multi-room system using standard Cat-5/5e or Ca\ t-6 cable to distribute hi-fi quality sound around a home. Optionally, video can also\ be distributed using co-axial cable and a VH10 video hub. The LK10 in-wall learning keypad must be used with the Incognito KP10 A-BUS-„¢ audio keypad and LR10 learning remote. The LK10 keypad clones learnt IR codes and macros from the LR10 remote which once transferred allow the LK10 to be used to control your source equipment conveniently from the wall. The LK10 is fitted on the wall by fixing it into a standard double J-box electricians back-box and double Decora-„¢ style faceplate (not included) next to a KP10 keypad. All knock-outs in the back-box should be removed to provide maximum ventilation. Care should be taken in choosing a site for the LK10, always refer to the precautions in this guide. Thank you for taking the time to read this manual, we do recommend you keep it for future reference. Matthew Bramble, Cambridge Audio Technical Director and the LK10 design team. Introduction 3 LK10 ENGLISH
