Cambridgeaudio 340C cd sm

This is the 29 pages manual for cambridgeaudio 340C cd sm.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

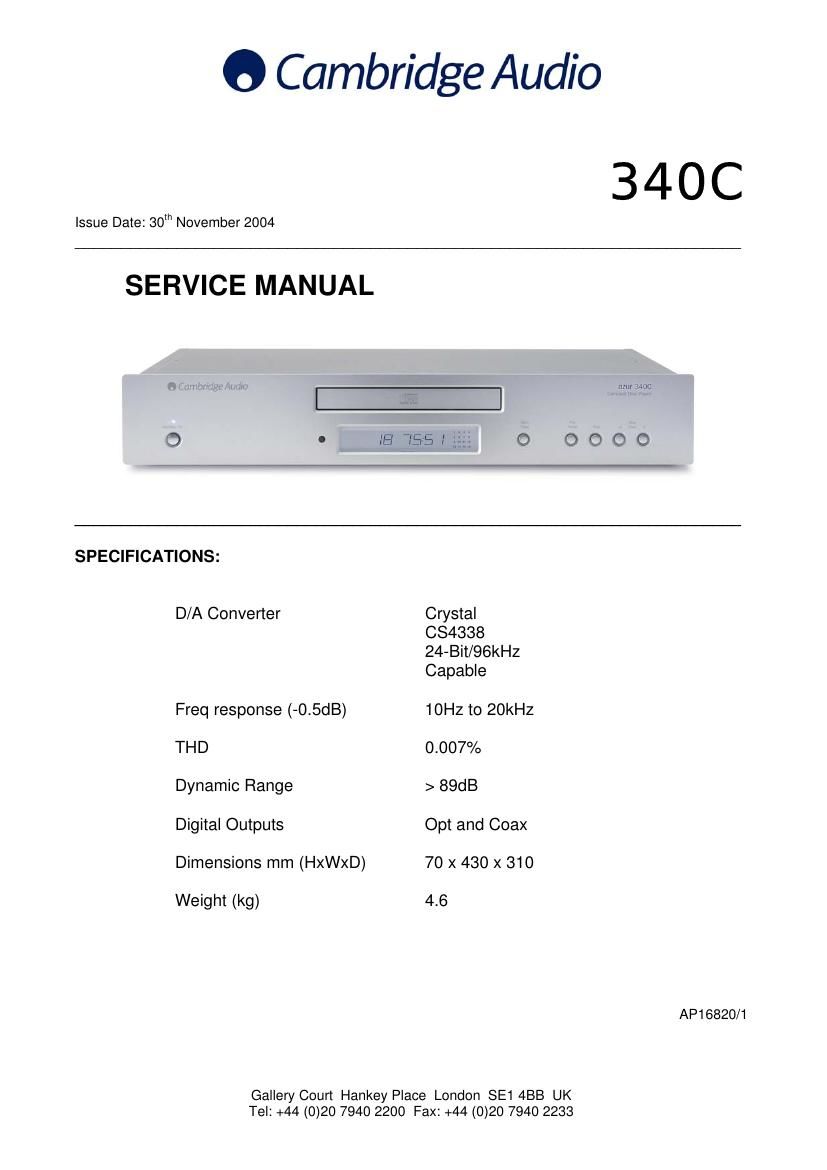

Page: 1 / 29
left right
cambridgeaudio 340C cd sm

Extracted text from cambridgeaudio 340C cd sm (Ocr-read)


Page 1

340C SERVICE MANUAL TABLE OF CONTENTS Safety Precautions & Important Notes 3 Laser Safety Precautions 4 Exploded Assembly Drawing 5 Front Panel PCB Schematic 6 Front Panel PCB Layout (Top Side) 7 Front Panel PCB Layout (Bottom Side) 8 Output PCB Schematic 9 Output PCB Layout (Top Side) 10 Output PCB Layout (Bottom Side) 11 Mains PCB Schematic 12 Mains PCB Layout (Top Side) 13 Mains PCB Layout (Bottom Side) 14 Servo PCB Schematic 15 Servo PCB Schematic (Power Supply) 16 Servo PCB Layout (Top Side) 17 Servo PCB Layout (Bottom Side) 18 Front Panel PCB BOM 19 Output PCB BOM 20 Main Assembly BOM 21/22 Servo PCB BOM 23/24 IC Pin Layout Details 25-29

Page 2

SAFETY PRECAUTIONS & IMPORTANT NOTES 1.Check that the rear of the product indicates the correct supply voltage for you area. 2. The lighting flash with the arrowhead within an equilateral triangle is intended to alert the user or service agent to the presence of dangerous voltages within the product enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. 3. The exclamation point within an equilateral triangle is intended to alert the user or service agent to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the appliance. 4. This product complies with EEC Low Voltage (73/23/EEC) and Electromagnetic Compatibility (89/336/EEC) Directives when used and serviced in accordance with this manual. For continued compliance all components marked safety and EMC critical must only be replaced by Cambridge Audio approved parts. 5. Any unauthorised design alterations or additions will void the manufacturers warranty; furthermore the manufacturer cannot accept responsibility for personal injury or property damage resulting therefrom. 6. When servicing, care should be taken to observe the original routing and dressing of the leads and it should be confirmed that they have been returned to normal after re-assembly. Notes on chip component replacement Never reuse a component that has been removed from a PCB Notice that the minus side of a tantalum capacitor may be damaged by heat COPYRIGHT NOTICE. © 2005 Audio Partnership PLC. All rights reserved. Cambridge Audio and Azur are registered trademarks of Audio Partnership PLC. This document may not be reproduced, distributed, transmitted, displayed, published, or broadcast without the express written prior permission of Audio Partnership PLC. Alteration or removal of any trademark, copyright, or other notice from this content is prohibited. Information provided in this document is provided solely for the use of official service agents in repairing and servicing Audio Partnership PLC products.
