Cabasse BALTIC EVOLUTION Owners Manual
This is the 12 pages manual for Cabasse BALTIC EVOLUTION Owners Manual. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com .
Download PDF
Extracted text from Cabasse BALTIC EVOLUTION Owners Manual (Ocr-read)

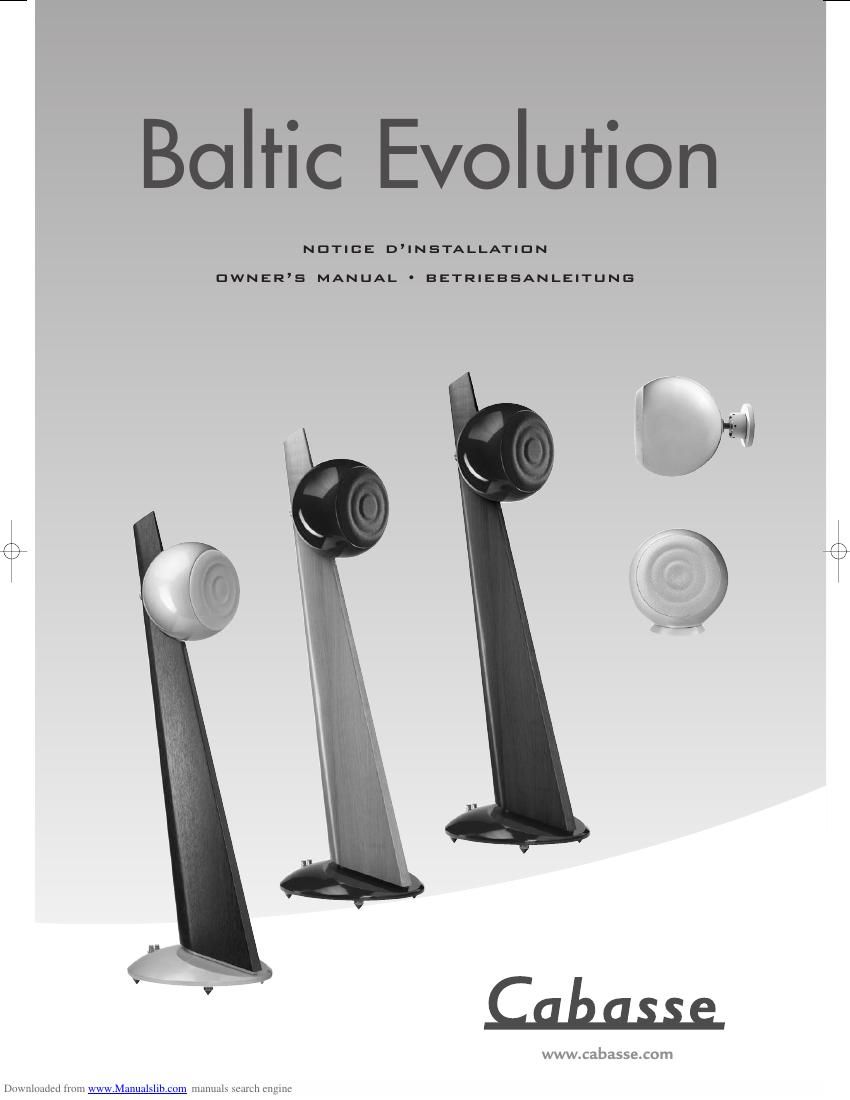

Page 1
Downloaded from www.Manualslib.com manuals search engine
français english deutsch
Baltic Evolution
Wenge/perle
W enge/pearl
W enge/Kugel Perlmutt
Merisier/perle noire
Wild cherry/black pearl
Kirschbaum/Kugel PerlschwarzSantos/perle noire
Santos/black pearl
Santos/Kugel Perlschwarz
Baltic Evolution murale
Baltic Evolution on wall
Baltic Evolution mit Wandbefestigung
Baltic Evolution centrale
Baltic Evolution on base
Baltic Evolution mit Sockel
Page 2
Downloaded from www.Manualslib.com manuals search engine
ORIENTATION MURALE
DE BALTIC EVOLUTION
Baltic Evolution
on wall positioning
Ausrichtung des Baltic Evolution
mit wandbefestigung
1
MONTAGE MURAL
DE BALTIC EVOLUTION
-–
DĂ©baller la Baltic Evolution murale
-–
DĂ©monter la bague
C
en utilisant les 2 barres métalliques
livrées avec lune des Baltic Evolution murales
-–
Enlever la vis
b
et retirer lenjoliveur
B
-–
Installer la plaque
A
sur le mur avec 4 vis de fixation adap-
tées au type de mur ou de support
-–
Bien positionner louverture prévue pour le passage du
câble haut-parleur (Cable Output) en fonction du type de
montage souhaité :
- vers le haut pour ne pas être visible si le câble sort du mur
- dans la direction prévue pour larrivée du câble sil est posé
en applique sur le mur
-–
Faire passer le câble à travers les pièces
A
+
B
+
C
-–
Remonter lenjoliveur
B
sur la plaque
A
et le fixer avec
la vis
b
-–
Visser Ă la main la bague
C
sur la plaque
A
, orienter la Bal-
tic Evolution murale et figer la position en serrant fortement
avec les 2 barres métalliques fournies
INSTRUCTIONS FOR ON WALL
MOUNTING OF BALTIC EVOLUTION
MURALE
-–
Unpack the Baltic Evolution on wall
-–
Unscrew the
C
ring with the help of the 2 metal sticks deli-
vered with one of the Baltic Evolution on wall
-–
Ta ke out the screw on
b
and pull out the
B
painted carter
-–
Wall mount the
A
metal piece by using 4 screws or bolts
adapted to the characteristics of the wall
-–
Do not forget to position the cable (Cable Ouput) in the
optimal way:
- up if your speaker cable comes out of the wall so it can not
be seen
- in the direction your speaker cable will come from if this cable
is not inside the wall
-–
Have the speaker cable go through all the pieces
A
+
B
+
C
-–
Mount the
B
part back on
A
with the
b
screw
-–
Mount
C
on
A
and tight it firmly with the 2 sticks delivered
MONTAGEANLEITUNG FĂśR BALTIC
EVOLUTION MIT WANDBEFESTIGUNG
-–
Den Baltic Evolution mit Wandbefestigung aus der Ver-
packung nehmen
-–
Mithilfe der mit einem Baltic Evolution gelieferten Metall-
stifte den Ring
C
abmontieren
-–
Schraube
b
abschrauben und Kappe
B
abnehmen
-–
Platte
A
mit 4 der Wand oder der Halterung angepassten
Schrauben installieren
-–
Den Durchgang fĂĽr das Lautsprecherkabel Ouput (Cable
Ouput) je nach gewĂĽnschter Befestigung positionieren :
- bei Kabelaustritt aus der Wand nach oben
- in die fĂĽr den Kabeleingang gewĂĽnschte Richtung, wenn
das Kabel entlang der Mauer ange bracht ist
-–
Das Kabel durch die Punkte
A
+
B
+
C
fĂĽhren
-–
Kap pe
B
wieder auf Platte
A
anbringen und mit Schraube
b
befestigen
-–
Den Ring
C
von Hand auf der Platte
A
festschrauben, Bal-
tic Evolution in die gewĂĽnschte Position bringen und mithil-
fe der 2 mitgelieferten Stifte festschrauben
2
2
2 2
