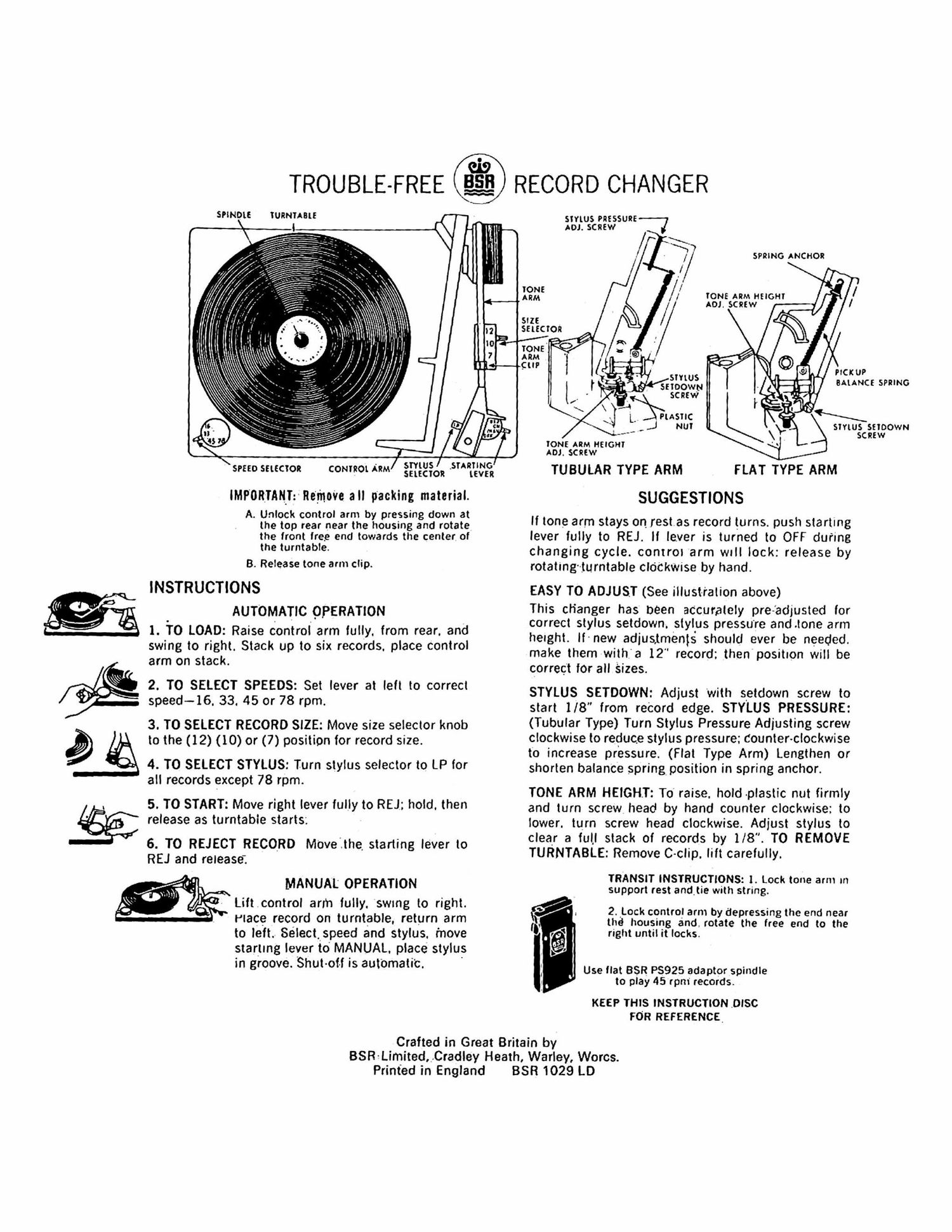

TROUBLE-FREE 2% RECORD CHANGER

SPINDte rumuair srrtus parssunr
set. screw 2

TONE ARM HEIGHT
ADJ. SCREW

SIZE

PICKUP

StYlUS BALANCE srnmo

_ SETDOWN

STYLUS

SPEED smcroa CONTROL ARM

IMPORTAllTrRe'riwire all packing material.

A. Unlock control arm by pressing down at
the tap rear near the housing and rotate
the front free end towards the center of
the turntable.

B. Release tone arm clip.

INSTRUCTIONS

AUTOMATIC OPERATION

1. T0 LOAD: Raise control arm lully, from rear. and
swing to right. Stack up to six records. place control
arm on stack.

2. TO SELECT SPEEDS: Set lever at left to correct
speed-l6. 33. 45 or 78 rpm.

3. TO SELECT RECORD SIZE: Move size selector knob
to the (12) (10) or (7) position for record size.

4. TO SELECT STYLUS: Turn stylus selector to LP for
all records except 78 rpm.

5. TO START: Move right lever fully to REJ: hold. then
release as turntable starts;

6. TO REJECT RECORD Movelthe starting lever to
REJ and release.

MANUAL OPERATION

Liltcontrol ath fully. 'swrng to right.
Place record on turntable, return arm
to left. selectKSpeed and stylus. move
starting lever to MANUAL. place stylus
in groove. Shut-oft is automatic. '

.STARTING
SELECTOR lEVER

SCREW

L.- PlASTlC

, ,J NUT
TONE ARM HEIGHT
ADJ. SCREW
TUBULAR TYPE ARM FLAT TYPE ARM
SUGGESTIONS

It lone arm stays on restas record turns. push starting
lever fully to REJ. ll lever is turned to OFF during
changing cycle. conrro: arm wrll lock: release by
rotating-turntable clockvirise by hand.

EASY TO ADJUST (See illustration above)

This changer has been accurately pre-adjusted for
correct stylus setdown. stylus pressure and .tone arm
height. lt-new adjustments should ever be needed.
make them withia 12" record; then'position will be
correct for all Sizes.

STYLUS SETDOWN: Adjust with setdown screw to
start 1/8" from record edge. STYLUS PRESSURE:
(Tubular Type) Turn Stylus Pressure Adiusting screw
clockwise to reduce stylus pressure; Counter-clockwise
to increase pressure. (Flat Type Arm) Lengthen or
shorten balance springposition in spring anchor.

TONE ARM HEIGHT: To raise. hold plastic nut firmly
and turn screw. head by hand counter clockwise; to
lower. turn screw head clockwise. Adjust stylus to
clear a full stack of records by 1/8. TO REMOVE
TURNTABLE: Remove Crclip. lift carefully.

TRANSIT lNSTRUCTIONS: 1. Lock tone arm in
support rest andtie with string.

2. Lock control arm by depressing the end near
the housing and. rotate the free end to the
right until it locks.

t7

f

S
@
5'

Use flat BSR P5925 adaptor spindle
to play 45 rpm" records-

KEEP THIS INSTRUCTION DISC
FOR REFERENCE.

Crafted in Great Britain by
BSR=Limited..CradIey Heath, Warley. Worcs.

Printed in England

BSR 1029 LD

STYLUS SETDOWN

SCREW
