Brenell 1964

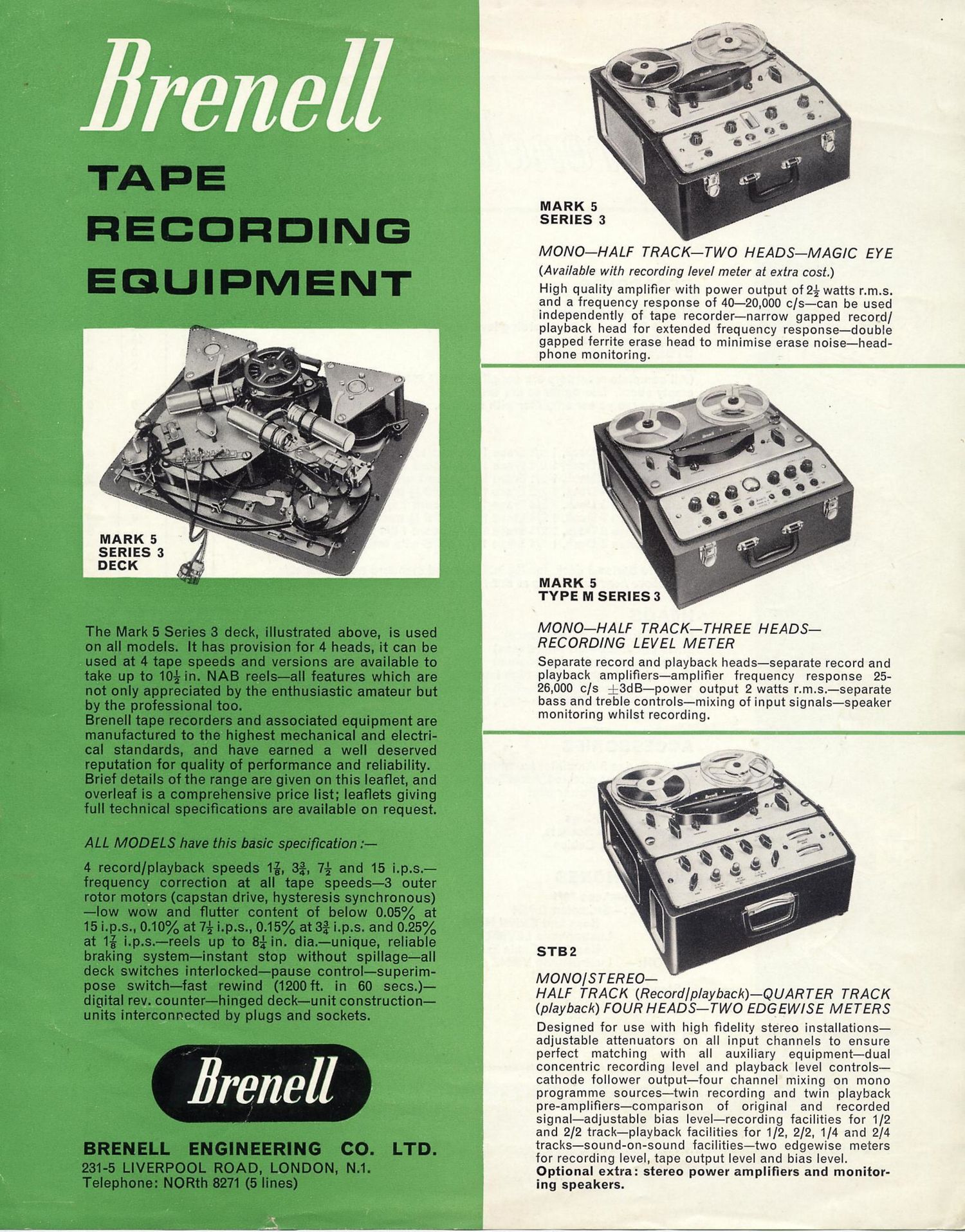

Page 1

SERIES 3
DECK

MARK 5
SERIES 3

MONO-HALF TRACK-TWO HEADS-MAGIC EYE

(Available with recording level meter at extra cost.)

High quality amplifier with power output of 2% watts r.m.s.
and a frequency response of 40-20,000 c/s-can be used
independently of tape recorder-narrow gapped record/
playback head for extended frequency response-double
gapped ferrite erase head to minimise erase noise-head-
phone monitoring.

-,-

MARK 5
TYPE M SERIES 3

MONO-HALF TRACK-THREE HEADS-
RECORDING LEVEL METER

Separate record and playback heads-separate record and
playback amplifiers-amplifier frequency response 25-
26.000 c/s i3dB-power output 2 watts r.m.s.-separate
bass and treble controls-mixing of input signals-speaker
monitoring whilst recording.

STB 2

MONO/STEREO-
HALF TRACK (Record/playback)-QUARTER TRACK
(playback) FOUR HEADS-TWO EDGEWISE METERS

Designed for use with high fidelity stereo installations-
adjustable attenuators on all input channels to ensure
perfect matching with all auxiliary equipment-dual
concentric recording level and playback level controls-
cathode follower output-four channel mixing on mono
programme sources-twin recording and twin playback
pre-amplifiers-comparison of original and recorded
signal-adjustable bias level-recording facilities for 1/2
and 2/2 track-playback facilities for 1/2, 2/2, 1/4 and 2/4
tracks-sound-on-sound facilities-two edgewise meters
for recording level, tape output level and bias level.
Optional extra: stereo power amplifiers and monitor-
ing speakers.

Page 2

[rebel/Z PRICE LIST

RECORDERS
£ 3. d.
Mark 5 Series 3 (standard) 77 14 0
Mark 5 Series 3 (with recordinglevel meter) 82 19 0
Mark 5 Type M Series 3 97 13 0
STBQ/5/2 150 0 0
STB2/510/2 170 O 0
(All complete recorders are supplied with 1,200 ft. of tape and an
empty spool. Microphones are extra.)
STB2 stereo power amplifier with two 5 in.><3 in. speakers 25 0- O
DECKS
Mark 5 Series 3 Deck, 1 u/t Erase 1 u/t Record/Playback 38 0 0
Mark 5 Series 3 Deck, 1 u/t Erase 1 u/t Record 1 u/t Playback 42 0 0
Mark 5 Series 3 Deck, 1 u/t Erase 1 l/t erase 1 u/t R/PB1 l/t R/PB 45 O 0
Mark 5 Series 3 Deck, 1 2/2 Erase 1 2/2 R/PB (4 track stereo) 45 0 0
Mark 5 Series 3 Deck, 1 2/2 Erase 1 2/2 Record 1 2/2 PB (4 track stereo) 54 0 0
Mark 5 Series 3 Deck, 1 2/4 Erase 1 2/4 R/PB (4 track stereo) 45 0 0
Mark 5 Series 3 Deck, 1 2/4 Erase 1 2/4 Record 1 2/4 PB (4 track stereo) 54 0 0
Mark 5 Series 3 Deck, 1 2/4 Erase 1 2/4 R/PB with track selectorswitch
(4 track mono) 47 0 0
Mark 510 Series 3 deck, for 104 in. NAB and standard reels (available '
with above head assemblies at £12 125. 0d. extra to the above prices).
HEADS
Erase (4 track-low impedance) 2 o o
Erase (2/2 track-low impedance) 4 0 0
Erase (2/4 track-low impedance) 4 o o
Record/Playback (4 track-high impedance) 3 0 0
Record/Playback (2/2 track-high impedance) 8 0 0
Record/Playback (2/4 track-high impedance) 8 0 0
Fitting charges extra
ACCESSORIES
Mark 5 Series 3 Amplifier (complete with power unit) . 26 0 0
Mark 5 Series 3 metered Amplifier (complete with power unit) 31 5 0
Mark 5 Series 3 Power Unit 5 O 0
Mixer Unit 2 18 O
Screened Jack Plugs 6 3
Screened Cable Sockets 6 3
Radio Coupling Cables 10 0
MICROPHONES
CRYSTALz-Acos 39/1 3 3 0
DYNAMIC:-Grampian DP4H 9 5 0
Base and Swivel Holder 1 14 0
Lustraphone LFV592 8 18 6
Base and Cable Exit bush 1 7 6
RIBBON:- ~ Lustraphone VR64Z 7 17 6
Reslo RBT/H 11 2 6
Stands- Desk 2 0 0
Table 4 0 0
Floor 7 0 0

Brenell Engineering reserve the right to alter specifications and prices as modifications are made
