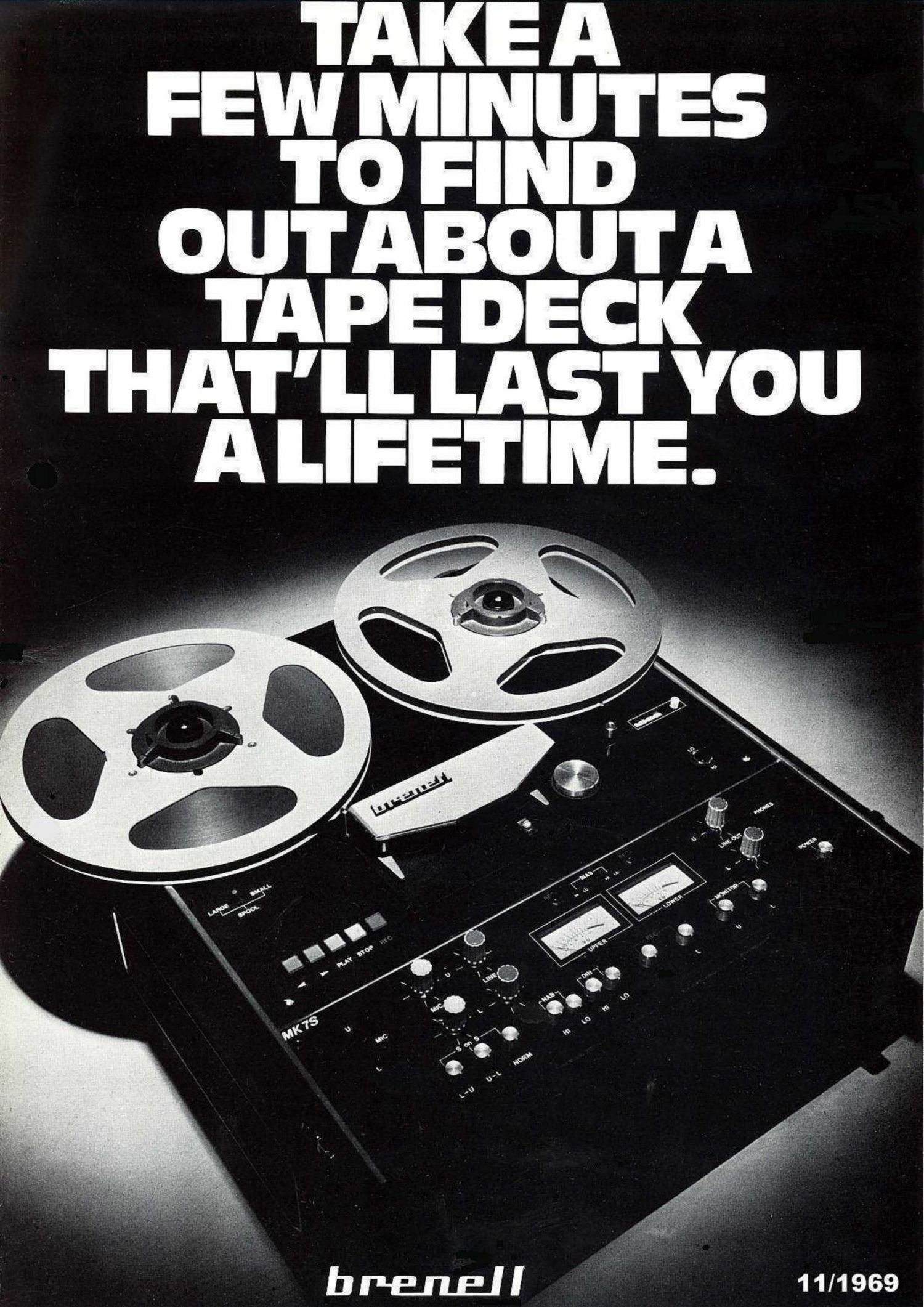

The Brenell
MK 78 Tape Deck

This machine of studio quality.
with full solenoid transport
functions. is available from
Brenell

As you can see. the sturdy
construction is just one of its
many features.

Here are the rest:

3-motor operation ensures smooth
control of all transport functions.
Capstan drive is provided by a
hysteresis synchronous outer rotor
motor with high starting torque.
Maximum life and quiet operation
is ensured by a closed lubricated
system with sintered bearings.
The motor is coupled to a
dynamically balanced flywheel.
Capstan and flywheel are mounted
in heavy duty bearings. Two
powerful outer rotor spooling
motors ensure smooth fast forward
and rewind operation. Rapid
acceleration is provided regard-
less of the distribution of the tape
on the reels and automatic tape
lifters move thetape offthe heads
when spoofing in either direction.
Incorporated with spooling
motors there are adjustable band
brakes. operated directly by
individual solenoids. to maintain
efficient braking on large hubs.
The transport automatically
switches to stop mode at the end
of tape.

The conveniently grouped light
action illuminated push-buttons
control interlocked relays and
solid state devices for alltransport
functions. Separate push-buttons
are provided for forward and
reverse wind. stop. play and
record. Allied to the transport
there is a 4-digit counter with a
zero re-set button. Electronic
interlocks give protection against
misuse. and in case of power
failure the transport returns to
stop mode.

One can bias the machine for
specific tapes without resorting
to internal adjustment-individual
channei bias pre-sets are mounted
above the meters on the front
paneL

Setting up the proper bias level
for either [OW noiseshigh output
tapes or conventional tapes
results in a reduction of back-
ground noise and hiss to a lower
level. and an increase in signal
to noise ratio.

Dual equalisation from front
panel controls means that
recording to the two professional
standards is made conveniently
simple. The monitoring of
individual tracks is achieved at
the touch of a button. Signals
from 4 sources (2 line and 2 mic)
can be recorded simultaneously
and can be mixed. Independent
mic and line preamplifiers each
with its own level control.
provides maximum recording
flexibility.

The expanding range. wide
excursion. back lighted V.U.
meters allow recording at higher
levels when using high output
tapes. ensuring a better SIN
ratio. Optional peak programme
meters are available to order.

Sound on sound and track to
track transfer is made easy-
simple button operation controls
both functions.

The new Brenell Mk. 7S meets
the essential user requirements

of reliability in extended operation,

high grade engineering. rugged
construction and ease of
operation.

For convenience the tape deck
can be used horizontally,
vertically or inclined.

> PLAY STOP REC
Full Solenoid Transport Functions

«.53 5"?

Dual Standard Equalization

HI. .l'; LOBIAS:|IL.(-D

Front Panel BIAS Accessibility

O

.

icy/27 cms Spool Capacity

LARGE

9

SPOOL

SMALL

D PLAY STOP REE
