Boston acoustics gt 275 2125 2200 2300 owners manual
This is the 12 pages manual for boston acoustics gt 275 2125 2200 2300 owners manual. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Page: 1 / 12

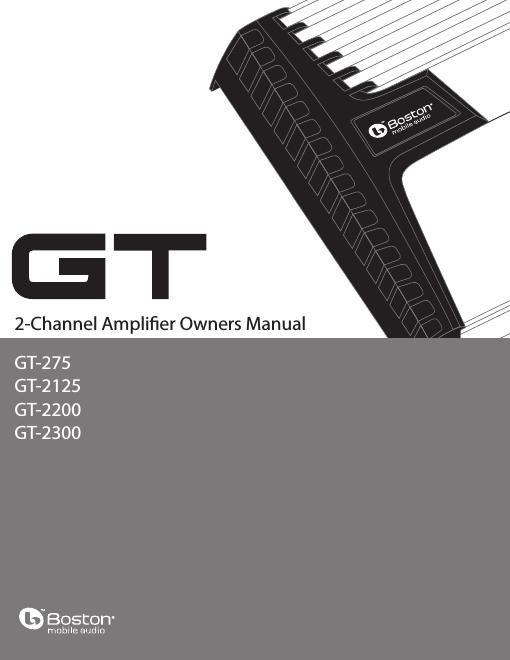

Extracted text from boston acoustics gt 275 2125 2200 2300 owners manual (Ocr-read)
Page 1
TableOfContents
2
2
Table of Contents
Parts list 3
Specifications
Connections4
Top panel removal / installation
Controls5
Status LEDs
Installation General 6
Before you install
Battery and charging system
Wire routing
Choose the mounting location
Passenger & trunk compartment mounting
Multi Position Mounting Feet
Vents
Installation Wiring 7
Amplifier fuses
Wire gauge
Power 12v and ground (GND) connection
Remote input connection
Speaker output connection
Mono subwoofer operation
Tuning The Amplifier Front or Rear Speakers 8
Music
Input sensitivity control
Highpass and lowpass crossover controls
Head unitVolume
2 channel highpass operation switch configuration diagram
Input sensitivity control
Crossover controls
Q control
2 channel operation wiring configuration diagram
Tuning The Amplifier Subwoofers 10
Input switch
Head unit
Volume
Input sensitivity control
Bridged lowpass with Q Tune
-’switch configuration diagram
Lowpass crossover control
Highpass crossover control
GT RSL
Bridged operation wiring configuration diagram
Amplifier Troubleshooting Guide 12
Service Information
Introduction
Thank you for choosing Boston Acoustics and congratulations on your purchase of the
Boston GT Amplifier. If you own other Boston products, the outstanding audio performance
and ease of use of the GT Amplifier should come as no surprise. If youre new to Boston,
welcome - we think youve made a great choice.
Page 2
PartsAndSpecifications
3
Included Hardware: GT 275 GT 2125 GT 2200 GT 2300
Installation Manual 1 1 1 1
Female Quick Connect Terminal 1 1 1 1
(for remote turn on input)
2mm Hex Wrench 1 1 1 1
3mm Hex Wrench 1 1 1 1
Mounting Screws 4 4 4 6
Parts List
Specifications
Technical Specifications: GT 275 GT 2125 GT 2200 GT 2300
Rated Power (CEA 2006 A):
@4 Ohm (Stereo):
75 Watts x 2 125 Watts x 2 200 Watts x 2 300 Watts x 2
@2 Ohm (Stereo) 120 Watts x 2 200 Watts x 2 350 Watts x 2 500 Watts x 2
@4 Ohm (Mono) 225 Watts x 1 400 Watts x 1 700 Watts x 1 1000 Watts x 1
@2 Ohm (Mono) 300 Watts x 1600 Watts x 1 900 Watts x 1 1400 Watts x 1
Rated Power (12v):
@ 4 Ohm (Stereo):
55 Watts x 2 95 Watts x 2 160 Watts x 2 260 Watts x 2
@2 Ohm (Mono) 230 Watts x 1 475 Watts x 1 750 Watts x 1 1175 Watts x 1
Frequency Response ( 3dB): 10Hz-95kHz 10Hz-95kHz 10Hz-95kHz 10Hz-95kHz
Signal to Noise Ratio (A Weighted): >100dB >100dB >100dB >100dB
THD+N: 0.03 0.03 0.03 0.03
HighPass Crossover:
Frequency Range:20Hz 350Hz20Hz 350Hz20Hz 350Hz20Hz 350Hz
Slope (dB Per Octave):12dB12dB 12dB 12dB
LowPass Crossover:
Frequency Range: 50Hz 350Hz 50Hz 350Hz 50Hz 350Hz 50Hz 350Hz
Slope (dB Per Octave): 12dB or 24dB 12dB or 24db 12dB or 24db 12dB or 24db
Signal Voltage Input Range: 200mv 8v 200mv 8v 200mv 8v 200mv 8v
Fuse Amp Rating: 30 Amp 40 Amp 70 Amp 100 Amp
Dimensions:
Width: 8
3-4(223mm) 13 1-4(337mm) 18 3-4(477mm) 22 1-4(566mm)
Height: 2 3-8(61mm) 23-8(61mm) 23-8(61mm) 23-8(61mm)
Depth: 9 (229mm) 9 (229mm) 9 (229mm) 9 (229mm)
