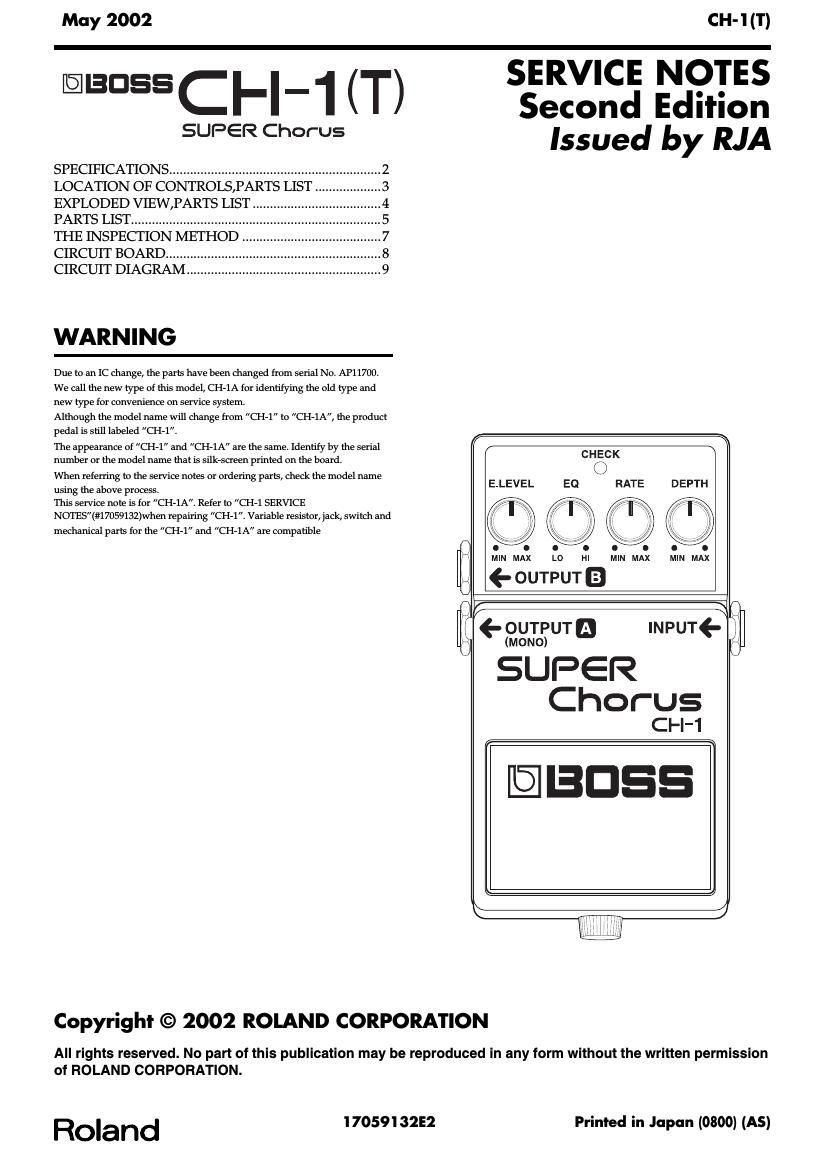

Boss CH 1T Super Chorus Service Manual

Page 2

May 2002

SPECIFICATIONS

Power Supply

DC 9 v; Dry battery (6F22/9V)
AC Adaptor (PSA-series)
Current Draw

22 mA (DC 9 V)

* Expected battery life under cantihuutts ust':

Carbon; 12 hours
These tigures will vary depending on the actual conditions ot use.
Controls

Pedal Switch
Eticct Level
Equalizer
Modulation Rate
Modulation Depth
Indicator

Check Lndicator (serves also as battery check indicator)

Jacks

Input

Output A

Output B

AC Adaptor
Residual Noise

-95 dBu or less (IHF-A, Typ.) with EQ set to the center position

Input Impedance
1 Mohm

Output Load Impedance

10 k ohm or greater

Dimensions

73 (W) x 129 (D) x 59 (H) mm
2-7/8 (W) x 5-1 /s (D) x 2-3/3 (H) inches

Weight

400 g / 14 02 (including battery)

Accessories

OWNERS MANUAL ENGLISH(#C.6lll721501)
lAPANEsmcnonzleos)

Dry Battery(#""'); 6F22/9V (Carbon)

Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and

I.nformation")

Options
AC Adaptor ISA-Series
* a digit = 0.775 les
