bose zone 1 part list

Extracted text from bose zone 1 part list (Ocr-read)

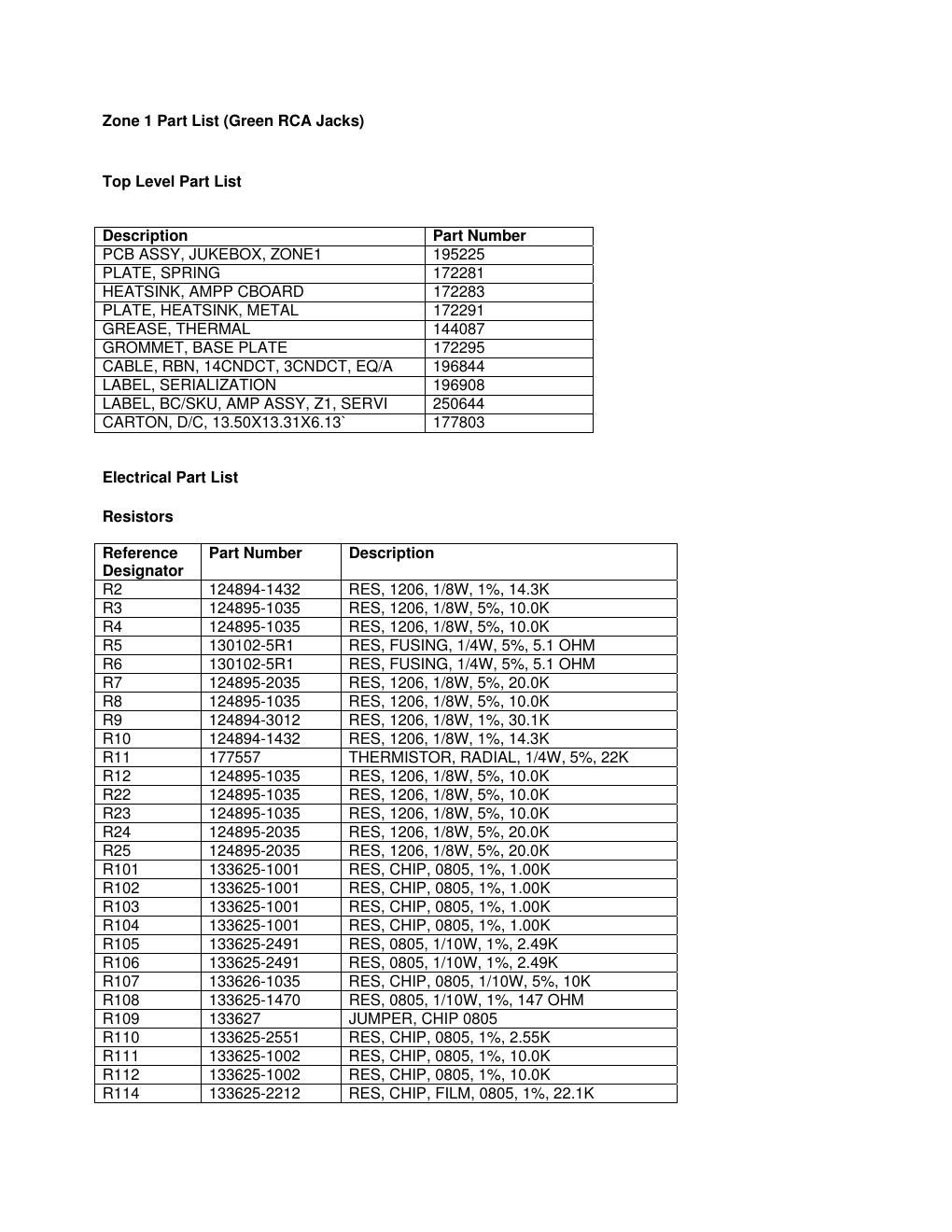

Page 1

Reference Designator Part Number Description R115 133625-1001 RES, CHIP, 0805, 1%, 1.00K R116 133625-5111 RES, CHIP, 0805, 1/10W, 1%, 5.11K R117 133625-1541 RES, CHIP, 0805, 1%, 1.54K R118 133625-1182 RES, 0805, 1/10W, 1%, 11.8K R119 133625-3161 RES, 0805, 1/10W, 1%, 3.16K R120 133626-1035 RES, CHIP, 0805, 1/10W, 5%, 10K R121 133625-1051 RES, 0805, 1/10W, 1%, 1.05K R122 133626-1005 RES, CHIP, 0805, 5%, 10 OHM R124 133625-7151 RES, 0805, 1/10W, 1%, 7.15K R125 133625-9091 RES, 0805, 1/10W, 1%, 9.09K R126 133625-1182 RES, 0805, 1/10W, 1%, 11.8K R127 133625-6810 RES, CHIP, 0805, 1/10W, 1%, 681 OHM R129 133627 JUMPER, CHIP0805 R130 133625-9091 RES, 0805, 1/10W, 1%, 9.09K R131 133625-2002 RES, CHIP, 0805, 1%, 20.0K R132 133625-4320 RES, 0805, 1/10W, 1%, 432 OHM R133 133625-1182 RES, 0805, 1/10W, 1%, 11.8K R134 133625-1182 RES, 0805, 1/10W, 1%, 11.8K R135 133626-3315 RES, CHIP, 0805, 1/10W, 5%, 330 OHM R136 133626-3315 RES, CHIP, 0805, 1/10W, 5%, 330 OHM R137 133626-1005 RES, CHIP, 0805, 5%, 10 OHM R138 133627 JUMPER, CHIP0805 R139 133625-1541 RES, CHIP, 0805, 1%, 1.54K R140 133626-1035 RES, CHIP, 0805, 1/10W, 5%, 10K R141 133625-1003 RES, CHIP, 0805, 1%, 100K R143 133626-1045 RES, CHIP, 0805, 5%, 100K R149 133626-1045 RES, CHIP, 0805, 5%, 100K R174 124894-5901 RES, 1206, 1/8W, 1%, 5.90K R175 124895-1825 RES, 1206, 1/8W, 5%, 1.80K R176 124895-1035 RES, 1206, 1/8W, 5%, 10.0K R177 124894-2491 RES, 1206, 1/8W, 1%, 2.49K R178 124894-4992 RES, 1206, 1/8W, 1%, 49.9K R179 124894-4992 RES, 1206, 1/8W, 1%, 49.9K R180 124895-1045 RES, 1206, 1/8W, 5%, 100K R181 124895-1025 RES, 1206, 1/8W, 5%, 1.00K R182 124894-7501 RES, 1206, 1/8W, 1%, 7.50K R183 124895-1025 RES, 1206, 1/8W, 5%, 1.00K R184 121243-1212215 RES, CF, 5%, 52MM, 220 OHM R185 124895-1045 RES, 1206, 1/8W, 5%, 100K R186 124895-1025 RES, 1206, 1/8W, 5%, 1.00K R187 124894-7501 RES, 1206, 1/8W, 1%, 7.50K R188 124895-1025 RES, 1206, 1/8W, 5%, 1.00K R189 124895-1025 RES, 1206, 1/8W, 5%, 1.00K R190 124895-1035 RES, 1206, 1/8W, 5%, 10.0K R191 124895-1025 RES, 1206, 1/8W, 5%, 1.00K R192 124895-1035 RES, 1206, 1/8W, 5%, 10.0K R193 121243-1212215 RES, CF, 5%, 52MM, 220 OHM R194 149322-100 RES, 2512, 1W, 5%, 0.1 OHM R195 124896 JUMPER, CHIP R196 133627 JUMPER, CHIP0805 R201 133625-1001 RES, CHIP, 0805, 1%, 1.00K R202 133625-1001 RES, CHIP, 0805, 1%, 1.00K

Page 2

Reference Designator Part Number Description R203 133625-1001 RES, CHIP, 0805, 1%, 1.00K R204 133625-1001 RES, CHIP, 0805, 1%, 1.00K R205 133625-2491 RES, 0805, 1/10W, 1%, 2.49K R206 133625-2491 RES, 0805, 1/10W, 1%, 2.49K R207 133626-1035 RES, CHIP, 0805, 1/10W, 5%, 10K R208 133625-1470 RES, 0805, 1/10W, 1%, 147 OHM R209 133627 JUMPER, CHIP0805 R210 133625-2551 RES, CHIP, 0805, 1%, 2.55K R211 133625-1002 RES, CHIP, 0805, 1%, 10.0K R212 133625-1002 RES, CHIP, 0805, 1%, 10.0K R214 133625-2212 RES, CHIP, FILM, 0805, 1%, 22.1K R215 133625-1001 RES, CHIP, 0805, 1%, 1.00K R216 133625-5111 RES, CHIP, 0805, 1/10W, 1%, 5.11K R217 133625-1541 RES, CHIP, 0805, 1%, 1.54K R218 133625-1182 RES, 0805, 1/10W, 1%, 11.8K R219 133625-3161 RES, 0805, 1/10W, 1%, 3.16K R220 133626-1035 RES, CHIP, 0805, 1/10W, 5%, 10K R221 133625-1051 RES, 0805, 1/10W, 1%, 1.05K R222 133626-1005 RES, CHIP, 0805, 5%, 10 OHM R224 133625-7151 RES, 0805, 1/10W, 1%, 7.15K R225 133625-9091 RES, 0805, 1/10W, 1%, 9.09K R226 133625-1182 RES, 0805, 1/10W, 1%, 11.8K R227 133625-6810 RES, CHIP, 0805, 1/10W, 1%, 681 OHM R229 133627 JUMPER, CHIP0805 R230 133625-9091 RES, 0805, 1/10W, 1%, 9.09K R231 133625-2002 RES, CHIP, 0805, 1%, 20.0K R232 133625-4320 RES, 0805, 1/10W, 1%, 432 OHM R233 133625-1182 RES, 0805, 1/10W, 1%, 11.8K R234 133625-1182 RES, 0805, 1/10W, 1%, 11.8K R235 133626-3315 RES, CHIP, 0805, 1/10W, 5%, 330 OHM R236 133626-3315 RES, CHIP, 0805, 1/10W, 5%, 330 OHM R237 133626-1005 RES, CHIP, 0805, 5%, 10 OHM R238 133627 JUMPER, CHIP0805 R239 133625-1541 RES, CHIP, 0805, 1%, 1.54K R240 133626-1035 RES, CHIP, 0805, 1/10W, 5%, 10K R241 133625-1003 RES, CHIP, 0805, 1%, 100K R243 133626-1045 RES, CHIP, 0805, 5%, 100K R249 133626-1045 RES, CHIP, 0805, 5%, 100K R274 124894-5901 RES, 1206, 1/8W, 1%, 5.90K R275 124895-1825 RES, 1206, 1/8W, 5%, 1.80K R276 124895-1035 RES, 1206, 1/8W, 5%, 10.0K R277 124894-2491 RES, 1206, 1/8W, 1%, 2.49K R278 124894-4992 RES, 1206, 1/8W, 1%, 49.9K R279 124894-4992 RES, 1206, 1/8W, 1%, 49.9K R280 124895-1045 RES, 1206, 1/8W, 5%, 100K R281 124895-1025 RES, 1206, 1/8W, 5%, 1.00K R282 124894-7501 RES, 1206, 1/8W, 1%, 7.50K R283 124895-1025 RES, 1206, 1/8W, 5%, 1.00K R284 121243-1212215 RES, CF, 5%, 52MM, 220 OHM R285 124895-1045 RES, 1206, 1/8W, 5%, 100K R286 124895-1025 RES, 1206, 1/8W, 5%, 1.00K R287 124894-7501 RES, 1206, 1/8W, 1%, 7.50K
