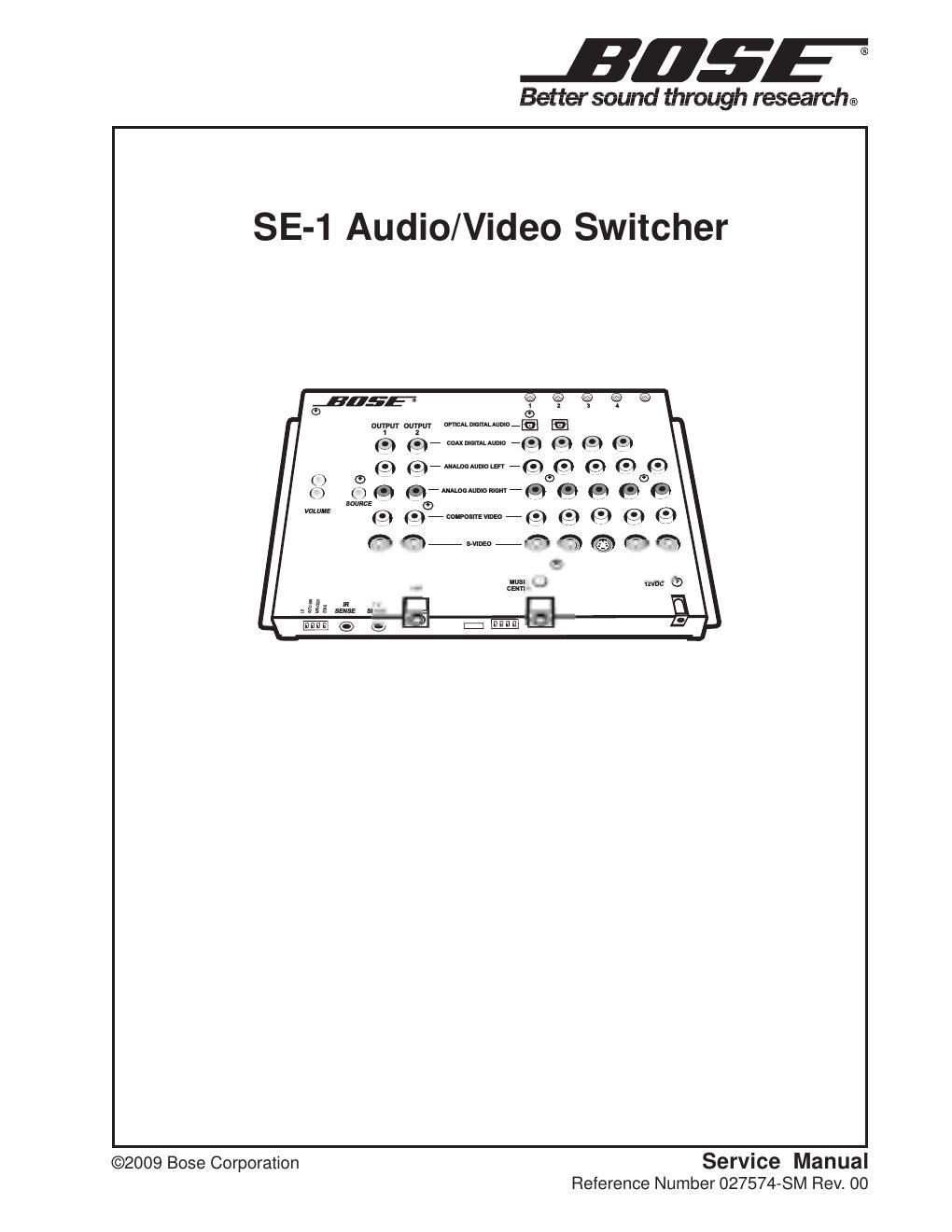

Bose se 1 audio video switcher service manual rev 00
This is the 21 pages manual for bose se 1 audio video switcher service manual rev 00. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Page: 1 / 21
Extracted text from bose se 1 audio video switcher service manual rev 00 (Ocr-read)
Page 1
2
CONTENTS
CAUTION: The Bose ® SE-1 Audio/Video Switcher
contains no user-serviceable parts. To prevent warranty infractions,
refer servicing to warranty service stations or factory service.
WARRANTY INFORMATION
The Bose SE-1 Audio/Video Switcher is covered by a 1-year transferable limited warranty.
PROPRIETARY INFORMATION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF
BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR
THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT
BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF
THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR
USED FOR ANY OTHER PURPOSE. Contents............................................................................................................................................ 2
Warranty Information......................................................................................................................... 2
Product Description ......................................................................................................................... 3
Specifications: ................................................................................................................................... 3
The Bose® SE-1 System Expander ............................................................................................... 4
Connecting the SE-1 system expander ...................................................................................... 5-8
Output connections .......................................................................................................................... 6
Connecting to the MRI or CD20 music center ............................................................................... 6
Adding a TV on/off sensor ............................................................................................................... 8
Support for IR control of other rooms or zones ............................................................................ 8
Control inputs/outputs ..................................................................................................................... 9
Part List Notes .................................................................................................................................. 9
Electrical Part List, Main PCB .................................................................................................10-17
Troubleshooting....................................................................................................................... 18-19
Service Manual Revision History .................................................................................................20
Page 2
3
PRODUCT DESCRIPTION
The Bose ® BUILT-INvisible ® SE-1 system expander simplifies the wiring and hookup of the
BUILT-INvisible TA-1 amplifier and other home theater components such as DVD, digital satellite
television, etc. It creates a highly flexible, easy-to-install and easy-to-use home theater system.
Features:
Five audio/video inputs. Four digital inputs (two with optical connections)
Fully integrates with the BUILT-INvisible TA-1theater amplifier and the BUILT-INvisible CD-20
and CD-50 music centers
IR control allows one remote to operate all of the home theater equipment including the Bose
BUILT-INvisible music center
Simple installation
TV sensing automatically switches sources and turns on the amplifier when the TV is turned on
Small, remote, IR sensor
Specifications:
Power Supply12VDC, 400mA
Control Inputs/Outputs
IR Sensor: For use with included IR sensor assembly
AMP: RS-232C, for connecting to the TA-1 theater amplifier
Music Center: TTL-level, for connecting to the CD-20or CD-50 music centers
TV Sense: For use with logic level (0 - 5VDC) TV sensing devices (not included)
Audio/Video Inputs
5 Audio (L/R) 25K input impedance
5 Video (NTSC composite) 75 input impedance
5 Video (Y/C S-video) 75 input impedance
4 S/PDIF (coaxial) 75 input impedance
2 Toslink (optical) S/PDIFAudio/video outputs
3 Audio (L/R) 265 output impedance
2 Video (NTSC composite) 75 output impedance
2 Video (Y/C S-video) 75 output impedance
1 S/PDIF (coaxial) 75 output impedance
Indicators
Power
Command
Selected source (6)
Push-button Controls (for installer use)
Volume up and down
Source selection
Dimensions1"H x 10"W x 7.25"D (2.5 cm x 25.5 cm x 18.5 cm)
Weight3 lb (1.35 kg)
