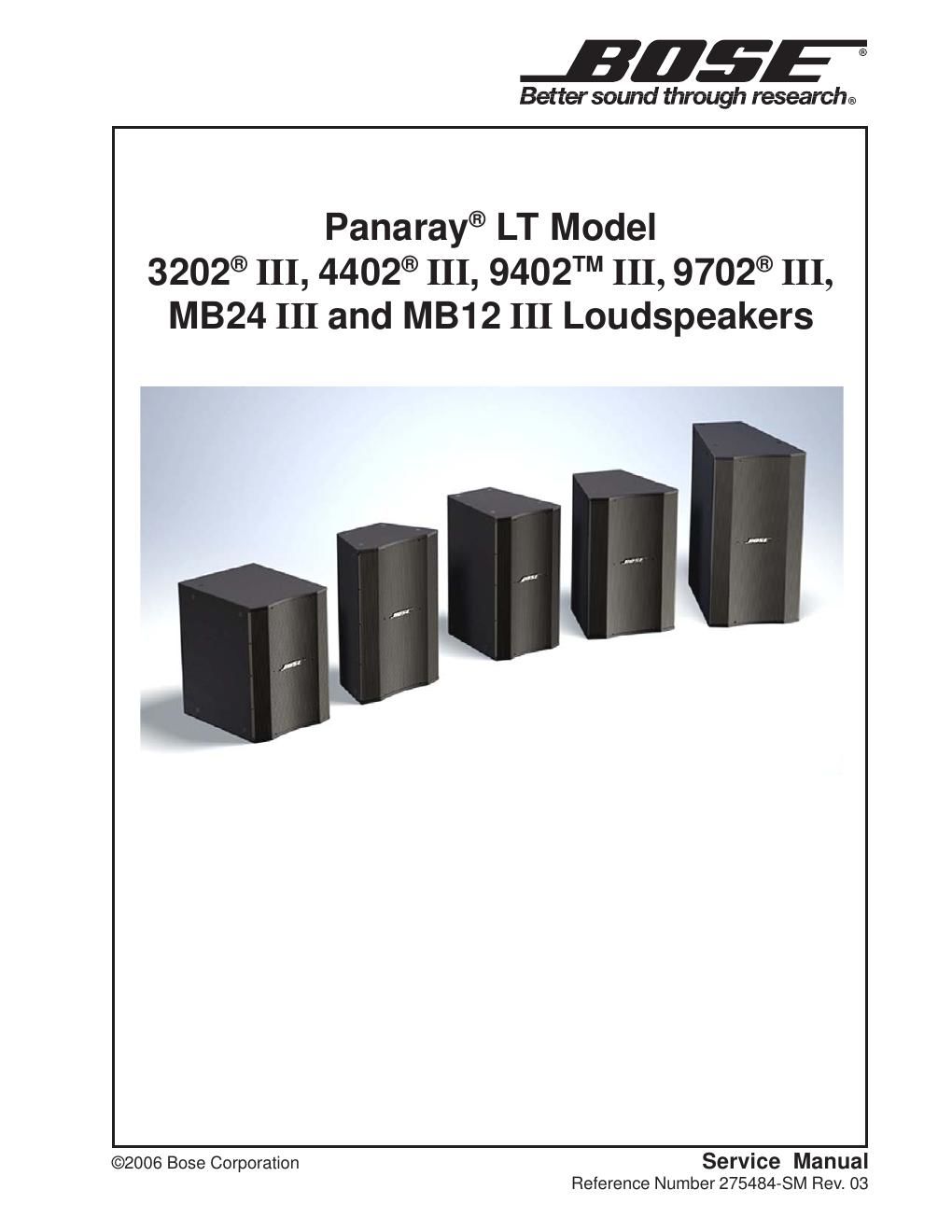

Bose panaray lt3202 iii 4402 iii 9402 iii 9702 iii mb24 iii and mb12 iii service manual
This is the 27 pages manual for bose panaray lt3202 iii 4402 iii 9402 iii 9702 iii mb24 iii and mb12 iii service manual. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Page: 1 / 27
Extracted text from bose panaray lt3202 iii 4402 iii 9402 iii 9702 iii mb24 iii and mb12 iii service manual (Ocr-read)
Page 1
2
CONTENTS
CAUTION: The Bose ® Panaray LT Loudspeakers
contain no user-serviceable parts. To prevent warranty infractions,
refer servicing to warranty service stations or factory service.
WARRANTY INFORMATION
The Bose Panaray LT Model 3202, 4402, 9402, 9702, MB24 and MB12 Series III
Loudspeakers are covered by a 5-year transferable limited warranty.
PROPRIETARY INFORMATION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF
BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR
THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT
BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF
THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR
USED FOR ANY OTHER PURPOSE.
Warranty Information...................................................................................................................................... 2
Specifications............................................................................................................................................... 3-4
Product Description......................................................................................................................................... 5
Part List Notes.................................................................................................................................................. 5
Packing List, Panaray
® LT 3202 ® III Loudspeaker......................................................................................... 6
Figure 1. Panaray LT 3202 III Loudspeaker Packaging View ............................................................................ 6
Packing List, Panaray LT 4402
® III Loudspeaker........................................................................................... 7
Figure 2. Panaray LT 4402 III Loudspeaker Packaging View ............................................................................ 7
Packing List, Panaray LT 9402TM III Loudspeaker....................................................................................... 8
Figure 3. Panaray LT 9402 III Loudspeaker Packaging View ............................................................................ 8
Packing List, Panaray LT 9702
® III Loudspeaker........................................................................................... 9
Figure 4. Panaray LT 9702 III Loudspeaker Packaging View ............................................................................ 9
Packing List, Panaray LT MB24 III Bass Loudspeaker................................................................................ 10
Figure 5. Panaray LT MB24 III Bass Loudspeaker Packaging View ............................................................... 10
Packing List, Panaray LT MB12 III Bass Loudspeaker................................................................................ 11
Figure 6. Panaray LT MB12 III Bass Loudspeaker Packaging View ............................................................... 11
Main Part List, Panaray LT 3202
® III Loudspeaker (see Figure 7) .............................................................. 12
Figure 7. Panaray LT 3202 III Loudspeaker Exploded View............................................................................ 12
Main Part List, Panaray LT 4402
® III Loudspeaker (see Figure 8) .............................................................. 13
Figure 8. Panaray LT 4402 III Loudspeaker Exploded View............................................................................ 13
Main Part List, Panaray LT 9402
TM III Loudspeaker (see Figure 9) ............................................................ 14
Figure 9. Panaray LT 9402TM III Loudspeaker Exploded View .......................................................................14
Main Part List, Panaray LT 9702
® III Loudspeaker (see Figure 10) ............................................................ 15
Figure 10. Panaray LT 9702 III Loudspeaker Exploded View .......................................................................... 15
Main Part List, Panaray LT MB24 III Bass Loudspeaker............................................................................. 16
Figure 11. Panaray LT MB24 III Bass Loudspeaker Exploded View ............................................................... 16
Main Part List, Panaray LT MB12 III Bass Loudspeaker............................................................................. 17
Figure 12. Panaray LT MB12 III Bass Loudspeaker Exploded View ............................................................... 17
Disassembly Procedures.......................................................................................................................... 18-20
Test Procedures........................................................................................................................................ 21-22
Model 4402, 9402, 9702, MB24 and MB12 Series III Speaker Test Cable ................................................... 21
Model 3202 III Speaker Test Cable ............................................................................................................... 21
Loudspeaker Wiring Diagrams ................................................................................................................ 22-24
Accessories Used With the Panaray LT Series III Loudspeakers............................................................... 24
High Frequency Compression Driver Diaphragm Replacement Procedure............................................. 25
Service Manual Revision History ................................................................................................................. 26
Page 2
3
SPECIFICATIONS
MECHANICAL
External dimensions, single speaker
9702 ® III: 42.2" H x 22.5" W x 18.0" D (1072 x 572 x 368 mm)
9402TM III: 34.6" H x 22.5" W x 23.7" D (879 x 572 x 604 mm)
4402® III: 34.0" H x 18.5" W x 24.0" D (884 x 471 x 610 mm)
3202® III: 42.2" H x 22.5" W x 35.9" D (1072 x 573 x 913 mm)
MB24 III: 28.1" H x 20.0" W x 25.5" D (712 x 508 x 647 mm)
MB12 III: 14.5" H x 20.0" W x 25.5" D (368x 508 x 647 mm)
System weight, unpackaged single speaker
9702 III: 95.5 lbs (43 kg)
9402 III: 113.0 lbs (51 kg)
4402 III: 111.1 lbs (50 kg)
3202 III: 194.0 lbs (88 kg)
MB24 III: 129.0 lbs (59 kg)
MB12 III: 65.0 lbs (29.5 kg)
System weight, packaged single speaker
9702 III: 123.5 lbs (56 kg)
9402 III: 145.5 lbs (66 kg)
4402 III: 141.1 lbs (64 kg)
3202 III: 240.7 lbs (109 kg)
MB24 III: 147.0 lbs (67 kg)
MB12 III: 74 lbs (34 kg)
ELECTRICAL
Driver Complement
9702 III: Mid Freq: two V2 drivers
High Freq: one 1.4" compression driver
9402 III: Mid Freq: two V2 drivers
High Freq: one 1.4" compression driver
4402 III: Mid Freq: two V2 drivers
High Freq: one 1.4" compression driver
3202 III: Mid Freq: four V2 drivers
High Freq: one 1.4" compression driver
MB24 III: Two 12" low frequency drivers
MB12 III: One 12" low frequency driver
Sensitivity (dB SPL, 1Watt at 1 meter)
9702 III: Mid 105, High 104, Passive 104
9402 III: Mid 106, High 106, Passive 106
4402 III: Mid 106, High 107, Passive 108
3202 III: Mid 111, High 107, Passive 110
MB24 III: Parallel Mode 94, Discrete Mode 91 (per driver)
MB12 III: Discrete Mode 91
