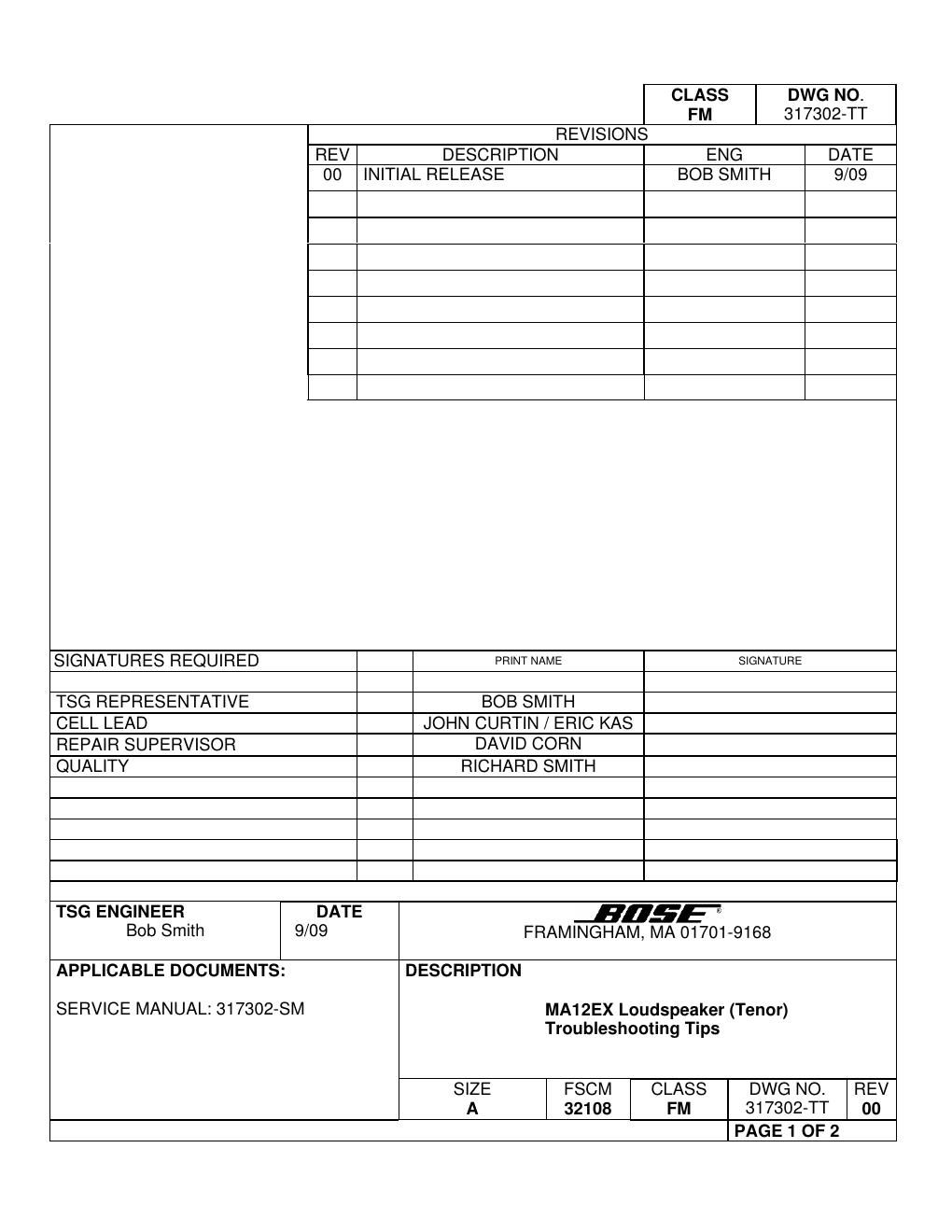

Extracted text from bose ma12ex troubleshooting tibose ps rev 00 (Ocr-read)
Page 1
Framingham, MA 01701-9168 SIZE
A FSCM
32108 CLASS
FM DWG NO.
317302-TT SHEET
2 of 2 REV.
00
Description
Refer to the MA12EX Service Manual 317302-SM located on the Bose
® Service intranet site at
http://intranet.bose.com/tsg
for any information not presented in this document.
1. Preventative Repair Measures
Note: Perform the following on all units returned for repair.
Product Check Action
MA12EX
Loudspeaker None None
CVT-MA12EX
Accessory
Transformer None None
2. Troubleshooting Tips
Product Symptom Check Action
MA12EX
Loudspeaker Distorted
output Drivers Using the tests in the service manual, sweep the
loudspeaker while listening to the individual drivers at
a close distance. Replace any defective drivers. You
can also perform the rub and tick test for individual
drivers if you are unsure if the driver is bad or not.
MA12EX
Loudspeaker Intermittent /
no Audio
Cracked /
damaged
connector(s) Connectors and
connections. Check the input connectors for damage to the plastic
housing and the electrical connections. Replace any
damaged connectors.
CVT-MA12EX
Accessory
Transformer Intermittent /
no Audio
Cracked /
damaged
connector(s) Connectors and
connections. Check the input and output connectors for damage
to the plastic housing and the electrical connections.
Replace any damaged connectors.
3. Software / Firmware Updates and EQ Changes
- Bose products that are used to drive and to provide EQs for installed MA12EX loudspeakers will need to
have the correct EQ installed on them. The EQ for the original MA12 Loudspeaker cannot be used for the
MA12EX. This can be done by updating the software / firmware for the device using the procedures in
their respective Service Manuals. Most of these products may already have the correct EQ installed.
- The service manuals are located on the Bose Service web site at http://serviceops.bose.com
. Refer to the
list below for affected products.
DXA-2120 Amplifier
FreeSpace
® 4400 Amplifier
Panaray ® System Digital Controller II
ControlSpace ® ESP-88 / 88C / 00 Systems
Note: The MA12EX is not compatible with the Panaray System Digital Controller I. No EQ is available
for the MA12EX in that product.
