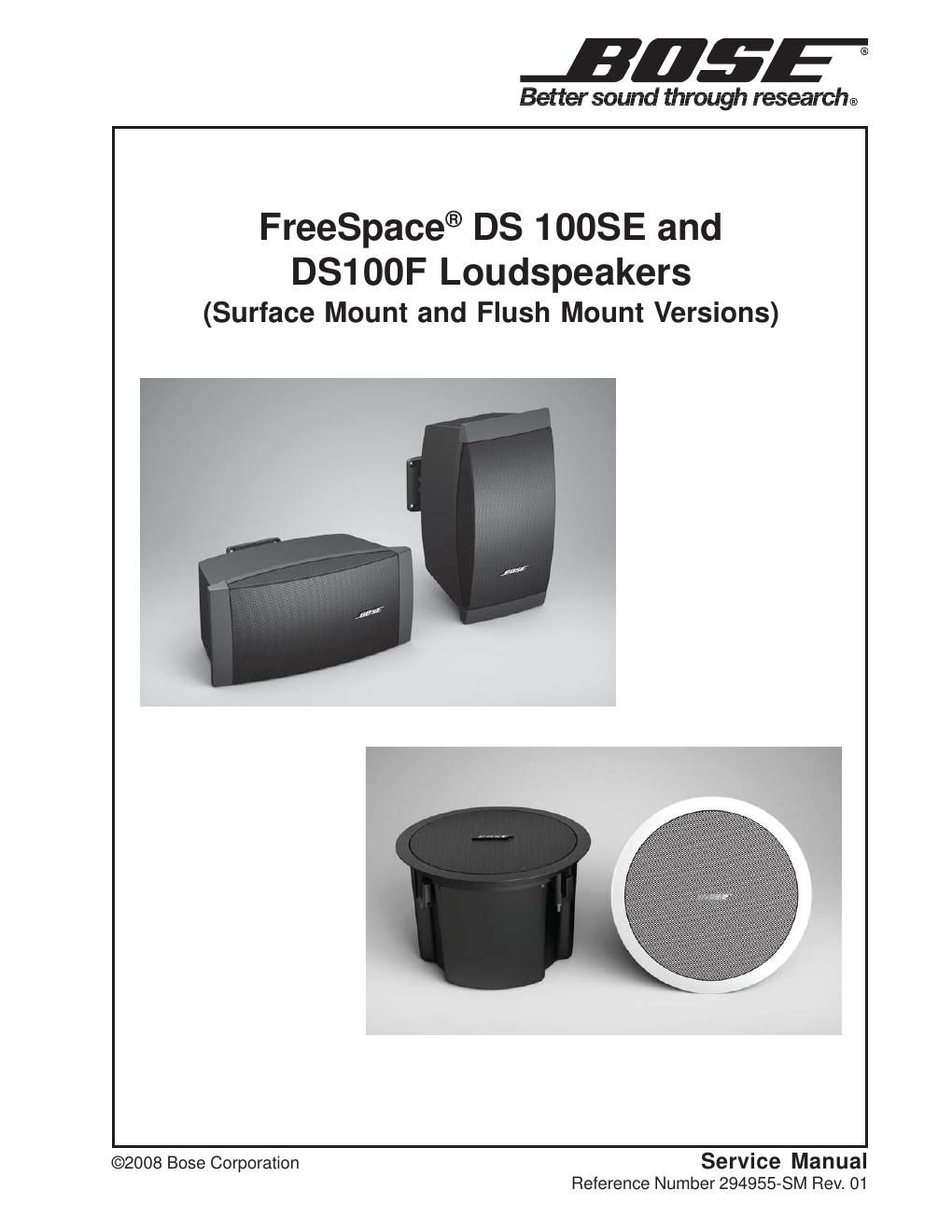

Bose freespace ds 100se and ds100f 294955 service manual rev1
This is the 21 pages manual for bose freespace ds 100se and ds100f 294955 service manual rev1. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Page: 1 / 21
Extracted text from bose freespace ds 100se and ds100f 294955 service manual rev1 (Ocr-read)
Page 1
2
CONTENTS
CAUTION: The Bose ® FreeSpace DS 100F and DS 100SE Loudspeakers
contain no user-serviceable parts. To prevent warranty infractions,
refer servicing to warranty service stations or factory service.
WARRANTY INFORMATION
The Bose FreeSpace DS 100F and DS 100SE Loudspeakers
are covered by a 5-year transferable limited warranty.
PROPRIETARY INFORMATION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF
BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR
THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT
BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF
THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR
USED FOR ANY OTHER PURPOSE. Warranty Information......................................................................................................................... 2
Specifications................................................................................................................................ 3-4
FreeSpace
® DS 100SE Surface-Mount Loudspeaker ................................................................... 3
FreeSpace DS 100F Flush-Mount Loudspeaker ........................................................................... 4
Product Description, FreeSpace DS 100SE Surface-Mount Loudspeaker ................................ 5
Product Description, FreeSpace DS 100F Flush-Mount Loudspeaker ...................................... 6
Part List Notes .................................................................................................................................. 6
Packaging List, FreeSpace DS 100SE Loudspeaker .................................................................... 7
Figure 1. FreeSpace DS 100SE Packaging View .............................................................................7
Packaging List, FreeSpace DS 100F Loudspeaker ....................................................................... 8
Figure 2. FreeSpace DS 100F Packaging View ................................................................................8
Main Part List, FreeSpace DS 100SE Loudspeaker (see Figure 3) ............................................. 9
Figure 3. FreeSpace DS 100SE Exploded View .............................................................................10
Main Part List, Mounting Bracket (included with loudspeaker) ................................................ 11
Figure 4. Mounting Bracket Exploded View .....................................................................................11
Main Part List, FreeSpace DS100F Loudspeaker (see Figure 5) .............................................. 12
Figure 5. FreeSpace DS100F Exploded View .................................................................................13
Disassembly Procedures .........................................................................................................14-16
FreeSpace DS 100SE Surface-Mount Loudspeaker ............................................................. 14-15
FreeSpace DS 100F Flush-Mount Loudspeaker ................................................................... 15-16
Test Procedures....................................................................................................................... 17-18
FreeSpace DS 100SE Surface-Mount Loudspeaker ................................................................... 17
FreeSpace DS 100F Flush-Mount Loudspeaker ......................................................................... 18
Figure 6. FreeSpace DS 100SE Surface Mount Speaker Wiring Diagram ....................................19
Figure 7. FreeSpace DS 100F Flush Mount Speaker Wiring Diagram ............................................19
Service Manual Revision History .................................................................................................20
Page 2
3
SPECIFICATIONS
FreeSpace ® DS 100SE Surface-Mount Loudspeaker
Electrical
Loudspeaker Impedance: 8 ohms
Power Handling: 100 Watts
Transformer Tapsin 70V Mode:12.5, 25, 50 and 100W
Transformer Tapsin100V Mode:25, 50 and 100W
Bypass Mode: 8 Ohms
Acoustical
Sensitivity: 85 dB SPL @1W/1m.
Maximum Sound Pressure Level: 105 dB SPL @ 1m (pink noise)
Frequency Range: 55Hz - 16kHz
Radiation Pattern: 180 degrees x 75 degrees avg from
800 Hz - 5 kHz
Compression: <3 dB with 100W watt sine wave measured in
8 ohm bypass mode
Distortion: <30% at 200W sine wave
Port Noise: < -40dB (from fundamental)
Mechanical
Dimensions:Single Speaker: 15" W x 8.5" D x 7" H (38.1 x 21.6 x 17.8 cm)
Packed System 18.5" W x 13.25" D x 10.75" H
(47 x 33.7 x 27.3 cm)
Weight:Single Speaker: 13.5 lbs (6.1 kg)
Packed System: 16 lbs (7.3 kg)
