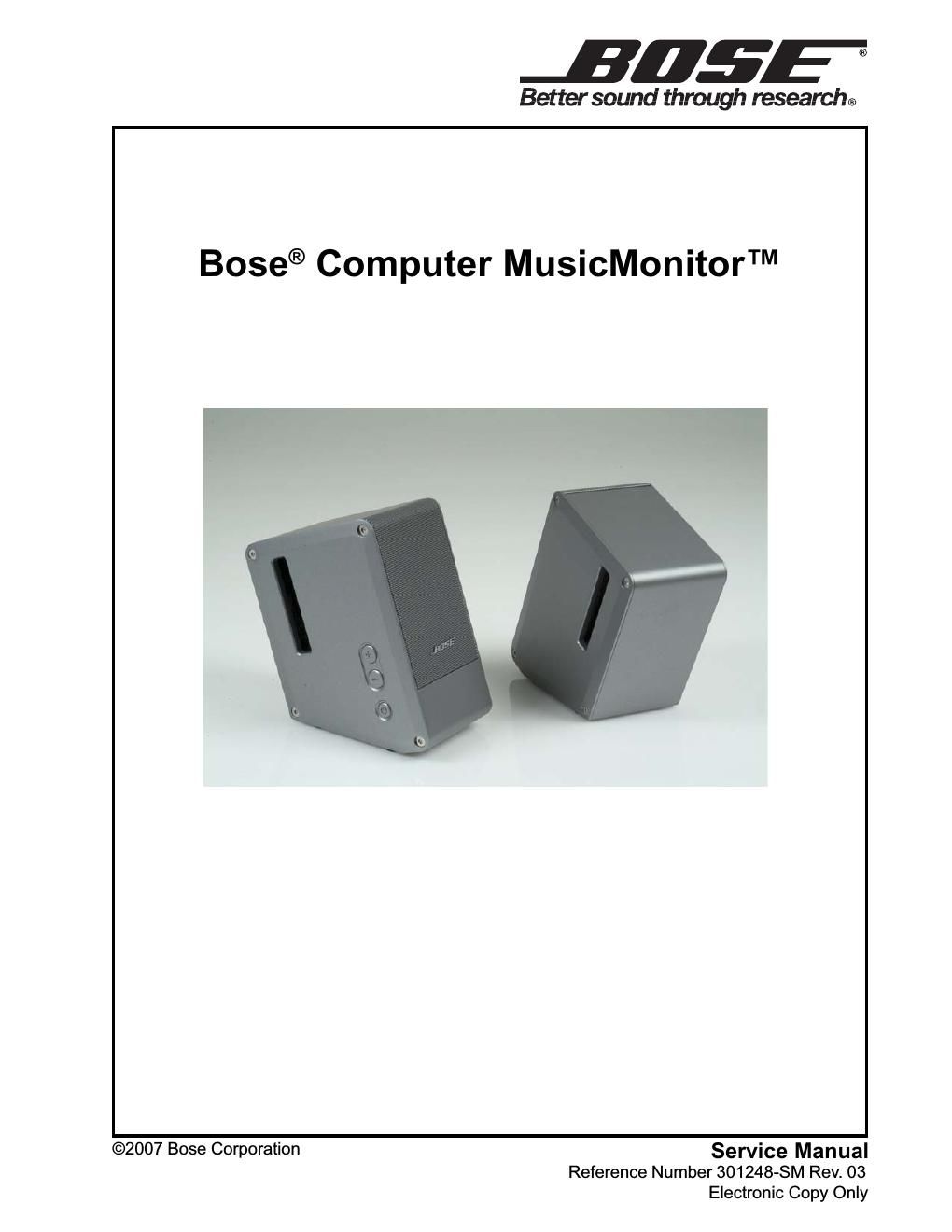

Bose computer musicmonitor

This is the 9 pages manual for bose computer musicmonitor.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 9
left right
bose computer musicmonitor

Extracted text from bose computer musicmonitor (Ocr-read)


Page 1

2 CONTENTS Safety Information ............................................................................................................................. 3 Part List Notes .................................................................................................................................. 3 Warranty ............................................................................................................................................. 4 Product Description ......................................................................................................................... 4 Repairability ....................................................................................................................................... 4 Demo Mode ....................................................................................................................................... 4 Date of Manufacture Information .................................................................................................... 4 Serial Number Information ............................................................................................................... 4 Specifications.................................................................................................................................... 5 Packaging Part List, Bose ® Computer MusicMonitor-„¢ (see Figure 1) ...................................... 6 Figure 1. Computer MusicMonitor-„¢ Packaged System .....................................................................6 Listening Test Procedure................................................................................................................ 7 Service Manual Revision History ................................................................................................... 8 WARNING: Keep the remote control battery away from children. It may cause a fire or chemical burn if mishandled. Do not recharge, disassemble, heat above 140°F (60°C), or incin- erate. Dispose of used batteries promptly. Replace only with a battery of the correct type and model number. Danger of explosion if remote battery is incorrectly replaced. Replace with only Duracell, Eveready, Energizer, Maxell, Toshiba or Shun Wo CR2032 or DL2032 3-volt lithium battery. CAUTION: The Bose Computer MusicMonitor-„¢ contains no user-serviceable parts. To prevent warranty infractions, refer servicing to factory service. PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE.

Page 2

3 SAFETY INFORMATION 1.Parts that have special safety characteristics are identified by the symbol on schematics or by special notes on the parts list. Use only replacement parts that have critical characteristics recommended by the manufacturer. 2. Make leakage current or resistance measurements to determine that exposed parts are acceptably insulated from the supply circuit before returning the unit to the customer. Use the following checks to perform these measurements: A. Leakage Current Hot Check-With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a leak- age current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) UL6500 / UL60065 / IEC 60065 paragraph 9.1.1. With the unit powered on, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the unit (antennas, handle bracket, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any cur-rent measured must not exceed 0.5 milliamp. Reverse the unit power cord plug in the outlet and repeat test. ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTEN- TIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE UNIT TO THE CUSTOMER. B. Insulation Resistance Test Cold Check-(1) Unplug the power supply and connect a jumper wire between the two prongs of the plug. (2) Turn on the power switch of the unit. (3) Measure the resistance with an ohmmeter between the jumpered AC plug and each exposed metallic cabinet part on the unit. When testing 3 wire products, the resistance measured to the product enclosure should be between 2 and infinite MOhms. Also, the resistance measured to exposed input/output connectors should be between 4 and infinite MOhms. When testing 2 wire products, the resistance measured to exposed input/output connectors should be between 4 and infinite MOhms. If it is not within the limits specified, there is the possibility of a shock hazard, and the unit must be repaired and rechecked before it is returned to the customer. PART LIST NOTES 1. This part is not normally available from Customer Service. Approval from the Field Service Manager is required before ordering. 2. The individual parts located on the PCBs are listed in the Electrical Part List. 3. This part is critical for safety purposes. Failure to use a substitute replacement with the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. 4.This part is referenced for informational purposes only. It is not stocked as a repair part. Refer to the next higher assembly for a replacement part.
