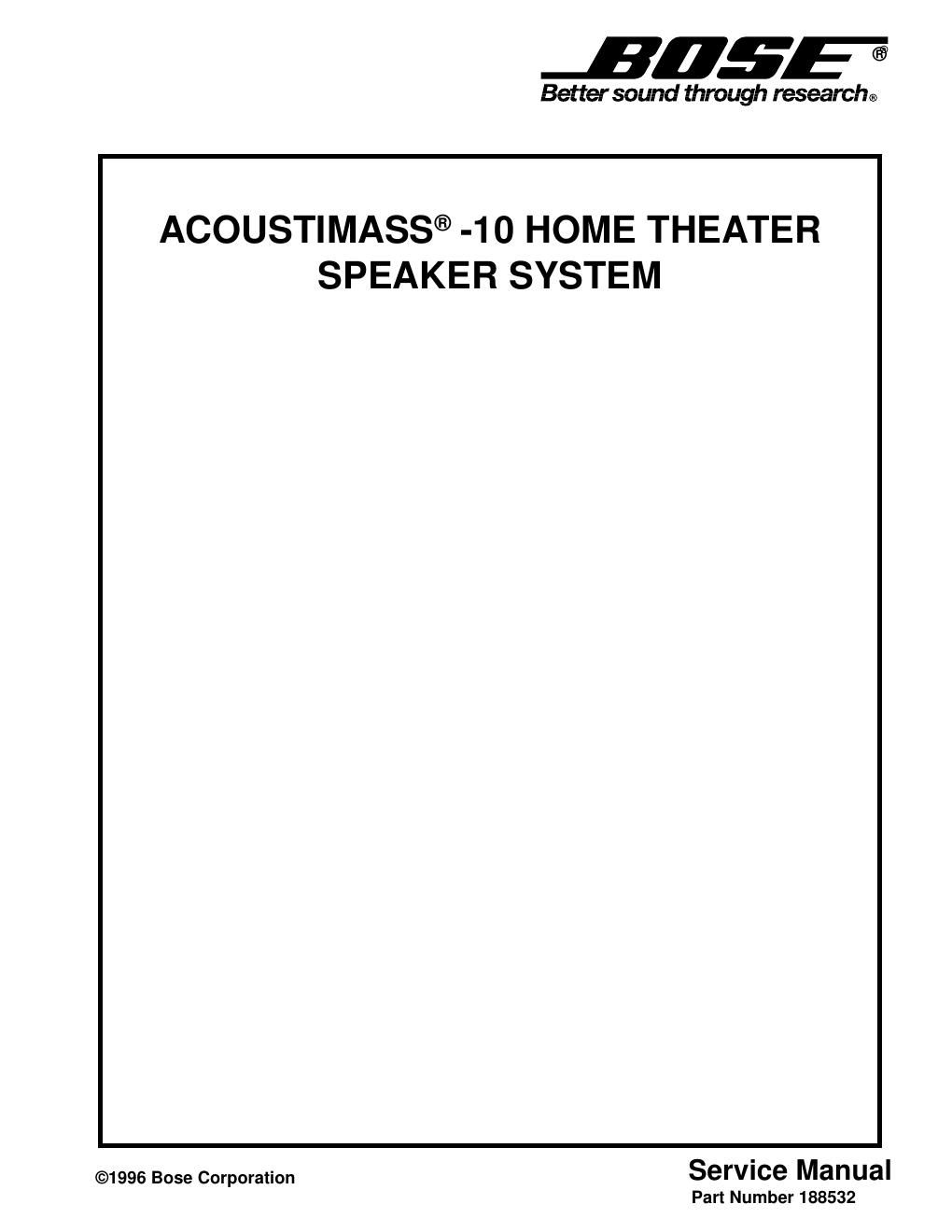

Bose am 10 service 103

This is the 17 pages manual for bose am 10 service 103.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 17
left right
bose am 10 service 103

Extracted text from bose am 10 service 103 (Ocr-read)


Page 1

1 Contents Specifications ................................................................................................................................... 2 Acoustimass ¨ 10 Bass Module Description .................................................................................. 3 Figure 1. AM-10 Bass Module .........................................................................................................4 Disassembly/Assembly Procedures ........................................................................................... 5-6 Figure 2. Bass Module Exploded View ...........................................................................................7 Figure 3. Cube Array Exploded View ..............................................................................................7 Test Procedures ............................................................................................................................ 8-9 Part List Notes ................................................................................................................................ 10 AM-10 Bass Module Part List ........................................................................................................ 11 Figure 4. Bass Module Exploded View ..........................................................................................11 Crossover Part List ........................................................................................................................ 12 Figure 5. Schematic Diagram REV 01 ..........................................................................................12 Crossover Mechanical Part List .................................................................................................... 13 Figure 6. Crossover PCB Mechanical Layout ...............................................................................13 Figure 7. Crossover PCB Etch Layout REV 01 .............................................................................13 Cube Array Part List ....................................................................................................................... 14 Figure 8. Cube Array Exploded View .............................................................................................14 AM-10 Packaging Part List ............................................................................................................ 15 Figure 9. Packaging Exploded View ..............................................................................................15

Page 2

2 PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE ¨ CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. SPECIFICATIONS Dimensions Cube Arrays: 6.3" x 3.0" x 4.8" (16 x 7.62 x 12.2 cm) Bass Module: 13" x 7.5" x 20.5" (33 x 19 x 52.1 cm) Weight Single Cube: 2.1 lbs (0.91 kg) Bass Module: 23 lbs (10.5 kg) Packed System: 40 lbs (18.2 kg) Crossover Frequencies Cubes:(L& R) 300Hz at 6 dB/Oct (CTR, SURR) 200Hz at 6 dB/Oct System Protection Left, Right, Center and Surround: PTC and Lamps Cube Protection Left and Right: Lamps Center and Surround: None Impedance6W nominal, 4.8W minimum from 20Hz to 20kHz Power Handling Left, Center, and Right Channels: 100W continuous per IEC-268-5, Recommended amp/receiver power 10-200 watts/channel Left and Right Surround Channels: 50W continuous per IEC-268-5, Recommended amp/receiver power 10-100 watts/channel Flux Leakage (Cubes):2.0 Gauss max. at 30 mm from any surface of the cube
