Bose acm 1 amplifier control module supplement

Page 1

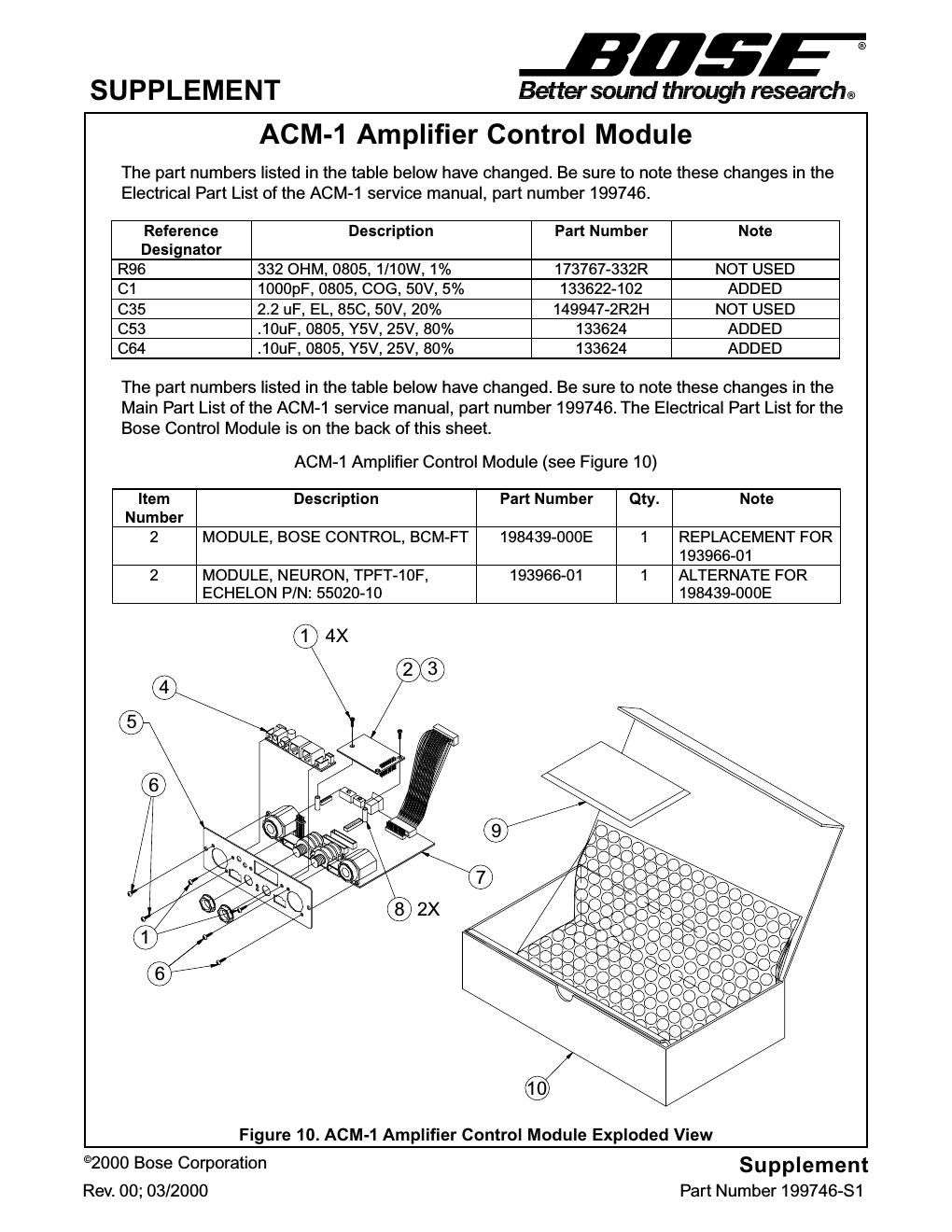

BOSE ® CONTROL MODULE ELECTRICAL PART LIST Resistors Capacitors Diodes Integrated Circuits Miscellaneous Reference Designator Description Part Number Note R1 JUMPER, CHIP 124896 R2 274 OHM, 0805, 1/10W, 1% 133625-2740 R3 274 OHM, 0805, 1/10W, 1% 133625-2740 R4 274 OHM, 0805, 1/10W, 1% 133625-2740 R41 100K, CHIP, 0805, 1% 133625-1003 Reference Designator Description Part Number Note C1 .10uF, 0805, Y5V, 25V, 80% 133624 C2 33pF, 0805, COG, 50V, 5% 133622-330 C3 .10uF, 0805, Y5V, 25V, 80% 133624 C4 .10uF, 0805, Y5V, 25V, 80% 133624 C5 22uF, TANT SMD, 10V, 10% 196981-A226C1 C6 .10uF, 0805, Y5V, 25V, 80% 133624 C7 .10uF, 0805, Y5V, 25V, 80% 133624 C8 .10uF, 0805, Y5V, 25V, 80% 133624 C9 .10uF, 0805, Y5V, 25V, 80% 133624 C10 .10uF, 0805, Y5V, 25V, 80% 133624 C11 .10uF, 0805, Y5V, 25V, 80% 133624 C12 22uF, EL, 5.5MM, 85C, 25V 177902-220E C13 68pF, 0805, COG, 50V, 5% 133622-680 C14 68pF, 0805, COG, 50V, 5% 133622-680 C15 .10uF, 0805, Y5V, 25V, 80% 133624 C18 .001uF, CER, 125C, 2K 193532 C19 22uF, EL, 5.5MM, 85C, 25V 177902-220E C20 33pF, 0805, COG, 50V, 5% 133622-330 Reference Designator Description Part Number Note CR1 BAV99, SOT23 147239 CR2 BAV99, SOT23 147239 CR3 BAV99, SOT23 147239 CR4 BAV99, SOT23 147239 Reference Designator Description Part Number Note U1 QUAD, OR GATE, SOIC-14, 74AC32 191934 U2 CMOS, SRAM, SOIC-28, 32KX8 191949 U3 NAND, QUAD, SOIC-14, 74AC00 193889 U4 NEURON, PQFP-64, MC143150B1FU 191961 U5 FL PEROM, PGRM, 512K, 70NS 252421-001 U6 PWR ET, SOT223, DS1233Z-5 193530 TRS1 XCVR, FREE TOPOLOGY, FTT-10A 191932 Reference Designator Description Part Number Note Y1 CRYSTAL, SMD, 10MHZ, 30pF 194021-10R0C30 US5 SOCKET, IC, PLCC-32 191933 P1 CONN, 2X9, .1 CTC 193533 P2 CONN, 6X1, .1 CTC 193534
