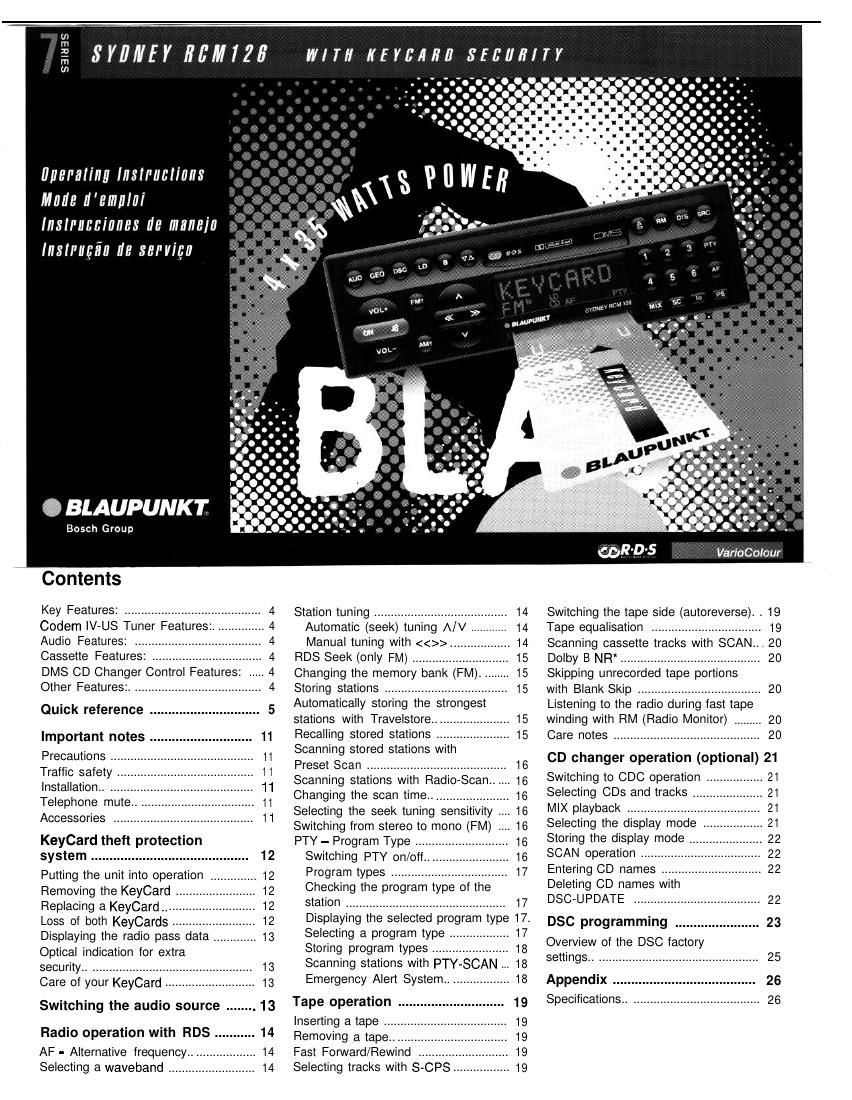

Page: 1 / 18
Extracted text from Blaupunkt Sydney RCM 126 Owners Manual (Ocr-read)
Page 1
warning for USA
The equipment has been tested and found
to comply with the limits for a Class B de-
vice, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide rea-sonable protection against harmful interfer-
ence in a residential installation. This equip- ment generates, uses, and can radiate ra-
dio frequency energy, and, if not installed
and used in accordance with instructions, may cause harmful interference with radio
communications. However, there is no guar- antee that radio interference will not occurin particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be deter- mined by turning the equipment off and on,
the user is encouraged to contact the deal- er or an experienced Radio/TV technician
for help.
You are cautioned that any changes or mod-
ifications not expressly approved in this
manual could void your authority to operate
this equipment.
The shielded interface cable recommended in this manual must be used with this equip-
ment in order to comply with limits for a dig-ital device pursuant to Sub-part B of Part 15
of the FCC rules. Congratulations on your purchase of this
Blaupunkt Cassette Radio with CD Chang-
er Control. Its IV-US RDS tuner and
full-featured cassette deck provide the ulti- mate in sound reproduction. Its high-power
amplifier and 4-Channel preamp output pro-
vide you with versatility in configuring your car audio system. In addition, Blaupunkts
exclusive Direct Software Control menu al-lows you to customize many of the features
to your specific personal preferences. And no other company offers radios with either
VarioColour Illumination or the Security System.
3 Here is a recap of feature highlights:
Key Features:
Security System with 2
Cards
Each also holds separate Preset,
Audio and DSC Settings Flashing LED Tongue Warning System Window Decals
VarioColour Illumination Brightness and Viewing Angle Adjustment
17 Direct Software Control Menu Options
Wireless Remote Control Ready
IV-US Tuner Features:
RDS (Radio Data System) Reception Station Call Letter Display
PTY Program Type Seek
AF Alternative Frequency Search
Emergency Alert System Capability
Multipath Management 18 FM/6 AM Presets, including 6 FM/6 AM Presets
Station Scan Preset Scan
3 lo and 3 dx Tuning Sensitivities
ASU Electrical Impulse Noise Suppression
4
Page 2
Quick reference
Audio Features:
35 x 4 Watts Peak Internal Dual-Level Fader
V Preamp Out w/75 Ohm
Resistance
Switchable Auxiliary Input
Cassette Features:
Soft-Touch, Full-Logic Deck Super CPS Program Search
Tape Scan Blank Skip
Dolby B Noise Reduction Tape Equalization
DMS CD Changer Control Fea-
tures:
Controls Blaupunkt CDC-A05 or
A071 Changer
Disc Naming
Track Scan MIX CD
MIX MAG
Other Features:
Quick-Release Wire HarnessDIN Chassis, Bracket Hardware
Dimensions 179 x 50 x 150 mm
Designed, Engineered and Manufactured
by in Germany
When pressing VOL-, the normal vol- ume will be by one grade lower than
the mute volume.
To program the mute volume level, proceed as follows:
l Adjust the desired volume.
l Press for two seconds until you
hear a beep.
Now this volume level is stored as your
mute volume.
Extra function Memory storing button in the DSC
menu.
Press repeatedly to switch between
the FM memory banks I, II and T
(Travelstore).
When pressing this button, the system
will automatically switch to FM.
Extra function To store the six most powerful stations
automatically with Travelstore: Press FMT until you hear a beep or
T-STORE appears in the display. Switching on/off at a ON button:
Press ON.
When switching the set on with the ON
button, the has to be insert-
ed. The unit will play with the pre-
adjusted volume.
Switching on/off with the
Turn the unit ON.
Make the orange tongue stick out by
pressing it into the radio so that it pops
out. Insert the into the slot
with the gold contact facing up and the arrow pointed into the unit.
Note:
Read the information in chapter Card theft protection system.
Switching on/off via the ignition:
When connected correspondingly, the
set can also be turned on and off via
the vehicle ignition.
0 AMT
AM switch
Extra function AMT
To store the six most powerful stations
automatically with Travelstore: Press AMT until you hear a beep or
T-STORE appears in the display. Rocker switch
Station search (seek tuning)
Down
Up/Down in short intervals when AF
is off (manual tuning)
When AF is on, press to
seek previously-turned RDS sta-
tions. Once RDS stations have
been turned in by radio, they are
added to this RDS seek table.
e.g. WNEW, WNYC-FM, THE
WAVE.
After the ignition has been switched
off, a double beep tone will remind you
that you should
before leaving your vehicle.
rove the Switching on with the ignition being
switched off:
To keep on operating the set when the ignition is switched off is in-
serted), proceed as follows: Press ON after the double beep tone.
The unit will be turned-on.
To alter the volume.
Each time the set is switched on, it will
play with the pre-adjusted volume (VOL FIX).
You may also change the VOL FIX set-
ting (see chapter DSC programming).
For instantly muting the volume.
By pressing the button the volume
will be muted immediately. MUTE will
appear in the display.
The function is cancelled by pressing
button or VOL+.
5
Operation
Track selection (S-CPS) Up
Down
>> Fast forward
<< Fast rewind
Stop function by pressing
