Blaupunkt St Louis CC 24 Owners Manual

Page 1

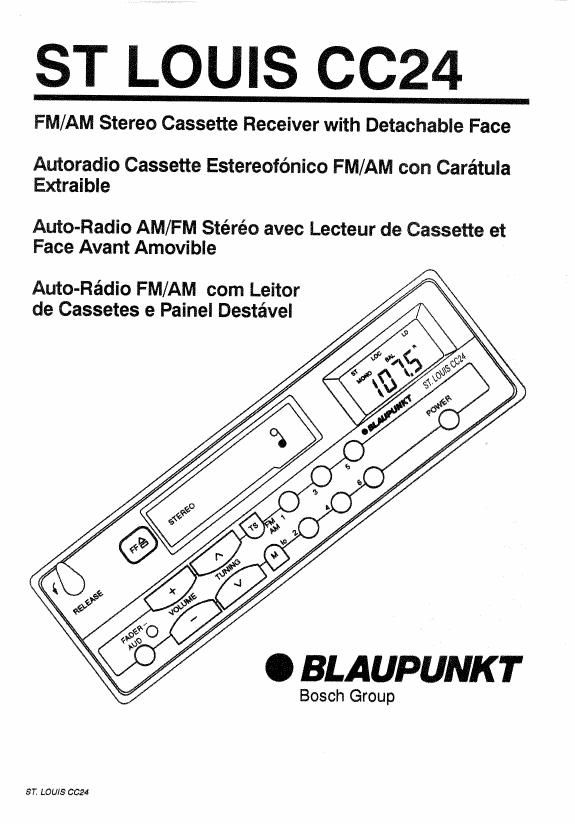

ST LOUIS CC24

FM/AM Stereo Cassette Receiver with Detachable Face

Autoradio Cassette Estereofénico FM/AM con Caratula
Extraible

Auto-Radio AM/FM Stéréo avec Lecteur de Cassette et
Face Avant Amovible

Auto-Radio FM/AM com Leitor
de Cassetes e Paine! Destével

C BLAUPUNK T

Bosch Group

ST. LOUIS CC24

Page 2

Features

ENGLISH

Congratulations on your purchase of the Blaupunkt St. Louis 0024 FM/AM Cassette
Receiver. its Phase Locked Loop (PLL) quartz FM tuner and high-quality tape head provide
the ultimate in sound reproduction. The Travel Store feature allows you to automatically
load six receivable FM and six receivable AM stations into the tuners presets as you travel

through various reception areas.

- Electronically-Tuned PLL Tuner

- 12 FM/S AM Station Presets 6 FM and
6 AM Travel Store Presets

- Automatic and Manual Tuning

' Local/Distant Reception Control

- Autostop Cassette Mechanism

. Volume/Baiance/Tone/Fader Controls

- Electronic Volume Level Memory

.
u
u
c
o

2 x 7 Watt Integrated Amplifier

Fader with 4 Speaker Output

ASU impulse Noise Quieting

LCD Display

Night illumination

DlN Mounting Chassis

Connection for Motorized Antenna
includes Mounting Strap and Wire Harness

Your St Louis C024 also incorporates a detachable front faceplate, which makes the unit

useless to would-be thieves.

Detachable Face

Detachlng & Attaching the Face:

The face of this unit can be detached and
taken with you to prevent it from being
stolen. ,

Detachlng the Face:

Before detaching the face, he sure to press
the Power Button off first, Then turn the
Release Knob and detach the face by gently
pulling it towards you as illustrated.

Note: Do not pull it straight out from the
chassis. Be sure not to drop the face when
detaching it from the chassis

Attaching the Face:

Apply the right hand side of the face to the
chassis by sliding (part B) of the face to (part
A) at the front of the chassis. Gently push
the left side of the face against the front of
the chassis until it snaps into place.

Note: Make sure that the face is inserted right side up. Do not press against the display
window, Do not press hard against the face when attaching it to the chassis, it may be

easily attached with gentle pressure
