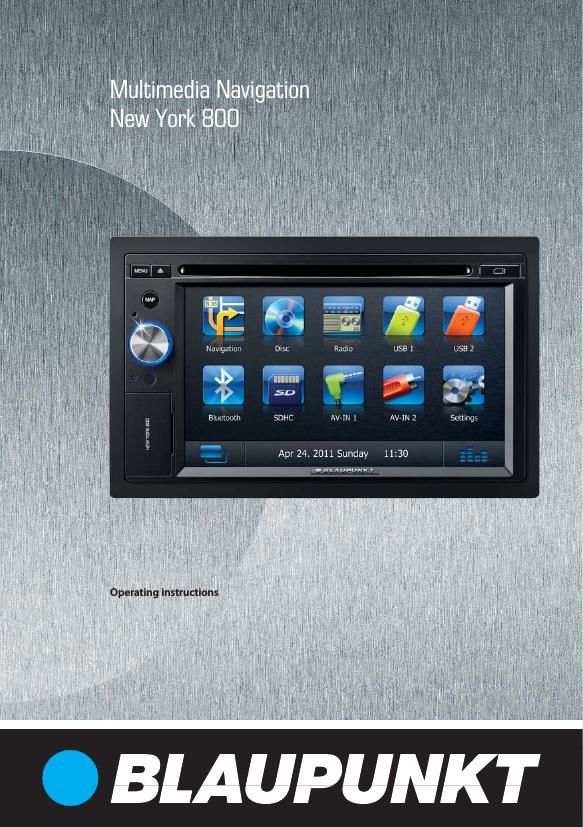

Blaupunkt New York 800 Owners Manual

Page 1

2 Controls -“ Device 1 button (Eject) Eject a CD/DVD 2 MENU button Call up main menu In the main menu: Call up menu of active source 3 MAP button Call up navigation In navigation mode: Call up menu of active source 4 Microphone 5 Rotary/pushbutton Short press: Switch on device In operation: Mute audio source Long press: Switch off device Turn: Adjust volume 6 Infrared receiver for remote control 7 Reset button Restoring the original factory settings of the device. Caution! All personal settings will be lost! 8 Cover 9 SD card reader Access only with open cover : Front USB socket (source USB 1) Access only with open cover ; Front AV-IN socket (source AV-IN 1) Access only with open cover < Touchscreen user interface = MicroSD card reader for navigation data Access only with open cover > DVD/CD drive 2 3 5 8 6 4 7 1 13 12 14 9 10 11

Page 2

3 Controls -“ Remote control ? SRC button Call up main menu @ / EJECT button Eject a CD/DVD A AUDIO / MUSIC button Select playback language (if available on DVD) Call up folder overview of audio fi les B DISP button Show information on the display C ZOOM button Zoom in on image area D BAND button Select waveband/memory bank E button Answer a call F GOTO button Directly select title, chapter, movie or playtime 16 18 20 22 24 25 28 29 27 19 21 23 26 17 15 30 31 32 33 35 36 38 40 34 43 41 39 37 44 42 G RPT A-B button Defi ne range for repeat function H RPT button Repeat function I SETUP button Call up settings menu J button Start and interrupt playback Confi rm settings K / / / button Navigate in menus and change settings Tuning into stations manually ( / ) Starting station seek tuning ( / ) L button Slow-motion playback M Number buttons 0 - 9 N / MIX button Random track play O / SCN button Scan function P MUTE button Mute audio source Q button Quit playback R VOL + / -“ button Adjusting the volume S PIC button Screen settings T / button Select title, chapter, movie Fast searching U button Ending/rejecting a phone call V CLEAR button Delete last character of an entry W TITLE button Call up title and chapter list X MENU button Call up DVD menu Y ANGLE / VIDEO button Select camera viewing angle (if available on DVD) Call up folder overview of movies Z SUBTITLE / PHOTO button Select subtitle language (if available on DVD) Call up folder overview of images [ button Switching device on/off \ EQ button Call up equaliser menu
