Extracted text from Blaupunkt Miami 620 Owners Manual (Ocr-read)

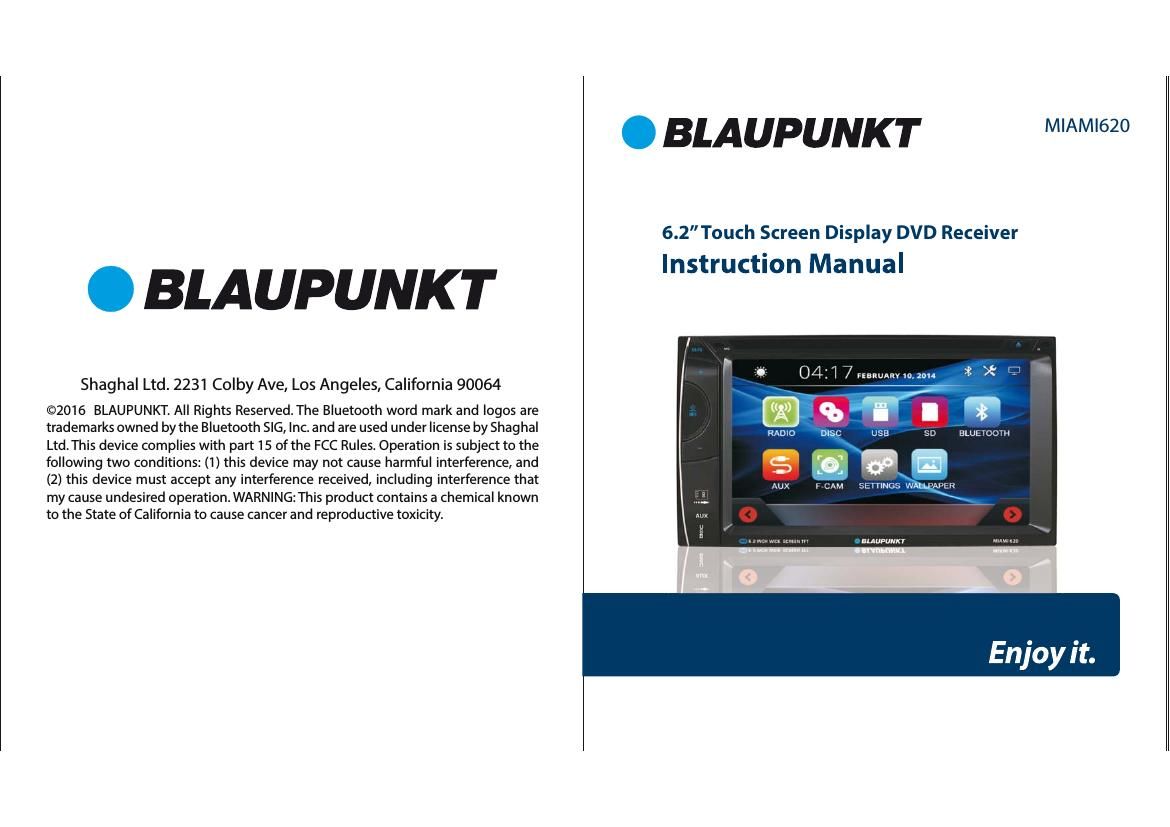

Page 1
NOTE: This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designer to provide reasonable
protection harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, maybe cause harmful interference to radio communications. However, there is
not guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver. is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Thank you for buying a BLAUPUNKT product. To operate this unit correctly, please read the
operation manual carefully before using. Keep this operation manual for future reference.
The unit designed only for DV 12V negative ground operation system. Make sure your vehicle is
connected to DC 12V negative ground operation system. Be sure to connect the speaker (-) leads
to the speaker (-) terminal. Never connect the left and right channel speaker wires together or to
the vehicle body.
The normal remperature for operation is between -20 and +60 degree Fahrenheit. Do not operate
in extreme temperature and lock vents or radiator panels of the unit, as this will cause heat to build
up inside the unit and may cause damage or a fire.
This operation manual shows the full version of the unit. GPS navigation system, dynamic
multi-colour illumination; back USB connection; iPod connection, digital TV tuner; analog TV
tuner; Bluetooth and AM radio are optional features of the software and may not be include.
Please refer to the exact funtions & features that equipped with this unit for operation.
IN CAR MULTI-MEDIA PLAYER
OPERATION MANUAL
This unit can play the following discs (4.72 in) and media files: DVD±R/RW/RMVB/MPEG4/ AVI/
SVCD/ VCD/ MP3/ WMA/ CD-R/ RW/ JPEG.
Page 2
INSTALLATION
WIRING CONNECTION
NOTES:
-Installation varies by car model and
supplied parts.
-Store small articles in places not accessible
by children.
-Use only supplied screws for installation.
-Intallation of the unit by a professional
technician is strongly recommended.
Remarks:
Mounting Brackets and screws are not
provided in this unit.
Remarks:
This drawing shows the full version of
the unit and may not be available for
connection on some versions. Refer to
the exact functions and features of the
unit for proper connection.
Due to the law of some countries, video
playback is not allowed during driving.
To allow video playback during driving,
the brown wire (brake) should be
connected to ground (B-) of the car
battery
SIMPLE TROUBLE SHOOTING
NOTE: your service dealer. Never attempt to disassemble the unit by yourself. No service
part inside the unit. BLUETOOTH not working -Check and make sure the connecting wires are connected properly
-Check whether the fuse is blown. Replace with the propet value fuse if necessary.
- Check and make sure the speaker wires are connected correctly.
-Check whether the video wire is connected to the video device
-Press the RESET button to reset the unit to its default stage.
-Press the RESET button to reset the unit to its default stage
- Check whether the radio/TV antenna is inserted or properly connected.
- Antenna may not be the proper length. Make sure the antenna is fully extended.
- Antenna may be not poorly grounded. Check and make sure the antenna is properly grounded.
-Tune the radio frequency accurately.
-The broadcasting singnal is too weak, set the mode to MONO.
-Check whether the disc inserted upside down.
-Check whether the disc is dirty or badly cracked.
-Lens is dirty. Clean lens by using the lens clean disc.
-Improper setting of colour system. Set again to PAL, SECAM or NTSC
-The disc is dirty or demange. Wipe the disc with a dry soft cloth or replace a new disc.
-The disc is dirty or damange. Wipe the disc with a dry soft cloth or replace with a new disc.
-Replace with a new battery of the remote handset.
-Point the remote handset directly at the remote sensor of the main unit.
-Clean the surface of the remote sensor.
-Check to make sure the devices are linked up correctly. After attempting the above effort, if the unit cannot operate normally, consult
