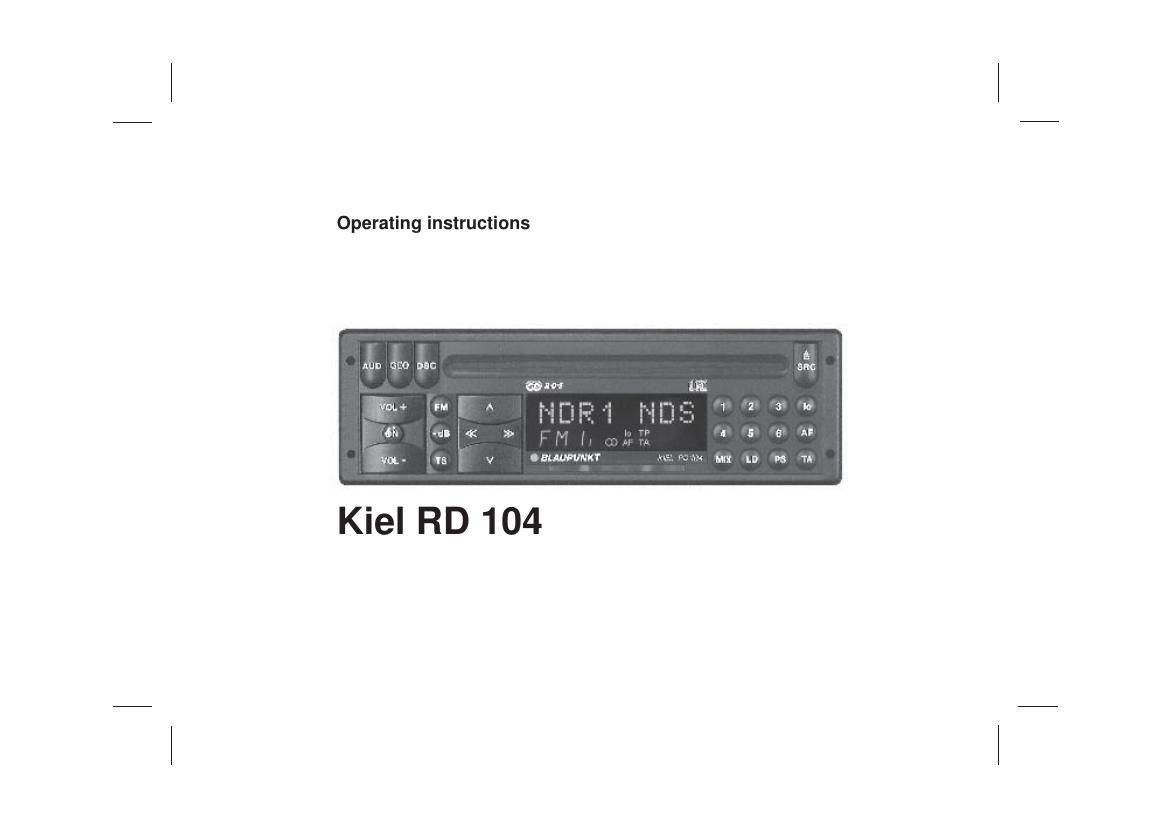

Blaupunkt Kiel RD 104 Owners Manual

Page 1

3 13 14 13 2 17 20 18 19 16 11 10 7 9 4 6 5 12 15 8

Page 2

16 Contents Short description .......................... 17 Important information .................. 20 What you need to know! ....................... 20 Traffic safety ......................................... 20 Installation/connection .......................... 20 Anti-theft coding ........................... 20 Wrong code number entered ................ 20 Switching the code system on .............. 21 Restart following interruption of power supply .................................................... 21 Switching the code system off .............. 21 Optical indication of theft protection ...... 21 Radio operation with RDS ........... 22 AF - alternative frequency ..................... 22 REG - Regional ..................................... 22 Selecting a station ................................. 23 Automatic seek tuning ........................... 23 Manual seek tuning ............................... 23 Adjusting the seek tuning sensitivity ..... 23 Stereo - mono switch (FM) .................... 23 Changing the memory bank (FM) ......... 23 Storing stations ..................................... 23 Storing the strongest stations auto- matically with Travelstore ...................... 24 Recalling stored stations ....................... 24 Sampling stored stations briefly with Preset Scan .......................................... 24 Sampling stations briefly with Radio Scan ........................................... 24 Reception of traffic announcements with RDS-EON ............................... 25 Priority of traffic announcements ON/OFF ................................................ 25 Warning beep ........................................ 25 Switching the warning beep off ............. 25 Automatic seek tuning start ................... 25 Adjusting the traffic message and warning beep volume ............................ 25 CD operation ................................. 26 Inserting the disc ................................... 26 Ejecting the disc .................................... 26 Selecting a track / Cueing and reviewing ........................... 26 Sampling tracks automatically with CD SCAN .............................................. 26 The Mix function .................................... 26 Changing the audio source with SRC ... 26 DSC programming ........................ 27 Survey of DSC default settings ............. 28 Appendix ....................................... 28 Technical data ....................................... 28

Page 14

28 TA LEVELUse this function to adjust the volume of traffic announ- cements between 1 and 9. The announcement will be played with the specified volume. VOL FIX Use this function to adjust the initial volume when the set is switched on. To quit the DSC mode and store the setting: - Press DSC. Survey of DSC default settings BEEP 4 BRIGHT 15 COLOUR RED CD DISP TIME LED ON LOUDNESS 3 SCANTIME 10s S-DX 2 S-LO 2 SPEECH 0 TA LEVEL 5 VOL FIX 20 Appendix Technical data Amplifier Output power: 4 x 20 W RMS according to DIN 45324 4 x 25 W music accord- ing to DIN 45324 FM Sensitivity: 0.9 µV at 26 dB S/N ratio Frequency response: 30 - 16,000 Hz (-3 dB) CD Frequency response: 20 - 20,000 Hz (-1 dB) Subject to modifications!
