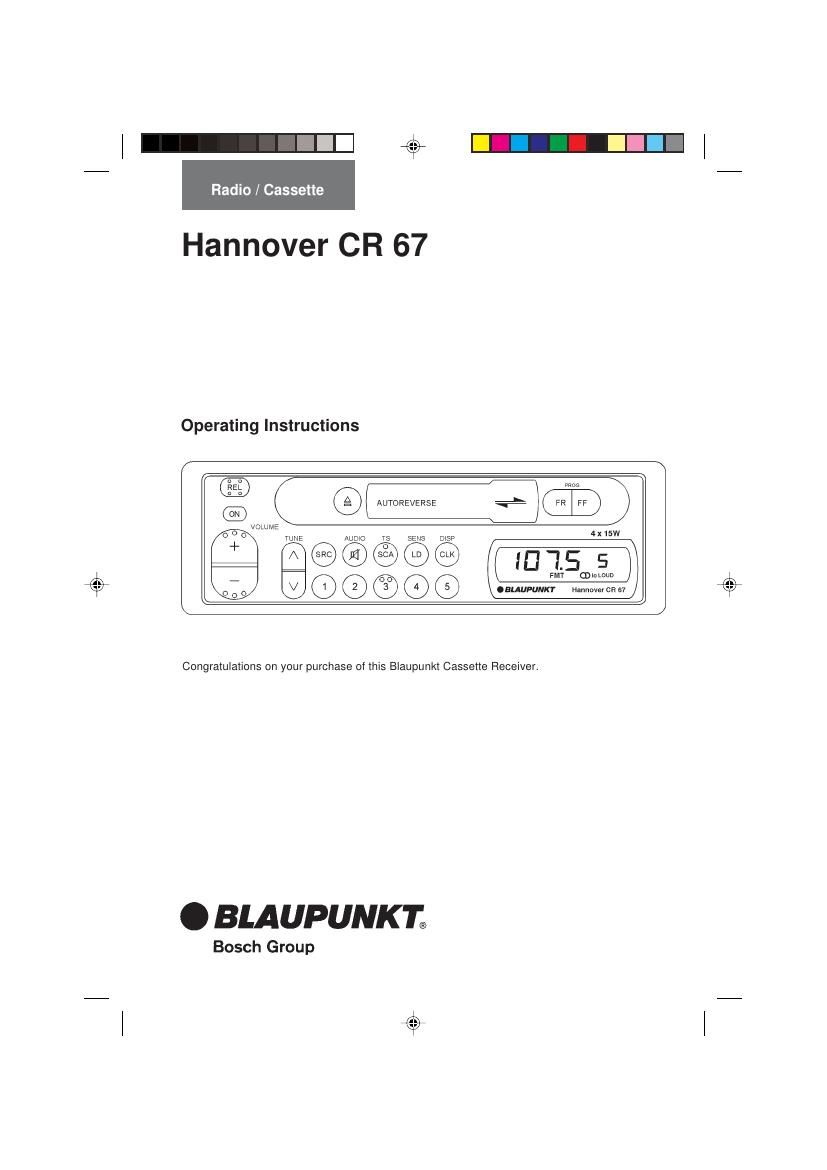

Page 1
2
Ta ble of Contents
English
Features ........................................................... 3
Traffic Safety and Precautions ......................... 3
Detachable Face ............................................... 4
Electrical Connections and Installation ............ 5
Installation ......................................................... 7
Maintenance ...................................................... 9
Specifications .................................................. 10
Location of Controls ........................................ 11
Instructions - General Operation .................... 12
Audio Operation .............................................. 13
Radio Operation .............................................. 14
Cassette Tape Player Operation .................... 15
Page 2
3
Features
Congratulations on your purchase of this Blaupunkt Cassette Receiver. It\
s Codem III FM/AM
Tuner and Autoreverse Cassette Tape Player mechanism provide the ultimat\
e in sound
reproduction.
-Codem III Tuner Features:
-“Multipath Management
-“ ASU Electrical Impulse Noise Reduction
-“ Superior AM Frequency Response
-“ 15 FM/5 AM Presets, Including 5 FM &
5 AM Travel Store Presets
-“ Station Scan
-“ Local/Distant Seek & Manual Tuning
- Cassette Tape Player Features
-“Auto-Reverse Cassette Mechanism
-“ True Fast-Forward/Rewind
-“ Hard Permalloy Tape Head
-“ Radio Monitor with Radio Preset Access
Your units detachable front faceplate makes the
unit useless to would-be thieves.
Designed, Engineered and Manufactured By Blaupunkt.
T raffic Safety and Precautions
- Do not adjust your unit in difficult driving conditions that demand your\
full attention.
- As the driver of a motor vehicle, it is your respons bility to pay attention to the traffic situation
at all times. Never use your unit in a way that could distract you.
- Always make sure that you are still able to hear any warning signals com\
ing from outside of
the vehicle, such as police or fire engine sirens, so that you can react\
accordingly.
- If your vehicle was parked in direct sunlight resulting in a considerabl\
e rise in temperature
inside the vehicle, allow the unit to cool off before operating your uni\
t.
- You are cautioned that any changes or modifications not expressly approv\
ed in this manual
could void your warranty.
ENGLISH
-Audio Features:
-“15 Watts x 4 Channel Integrated Amplifier
-“ Adjustable Maximum Turn-On Volume
-“ Bass, Treble, Balance and Fader Control
-“ Loudness Button
-“ Mute Button
- Other Features:
-“Partially Detachable Face
-“ Green Illumination
-“ Display Priority Control
-“ Temporary Display Change Control
-“ Clock/Ignition-Off Clock Recall
-“ 179 x 50 x 150 mm
DIN/ISO Chassis
-“ Detachable Wire Harness (ISO)
-“ Snap-In DIN Sleeve & Mounting Hardware
