Page 1

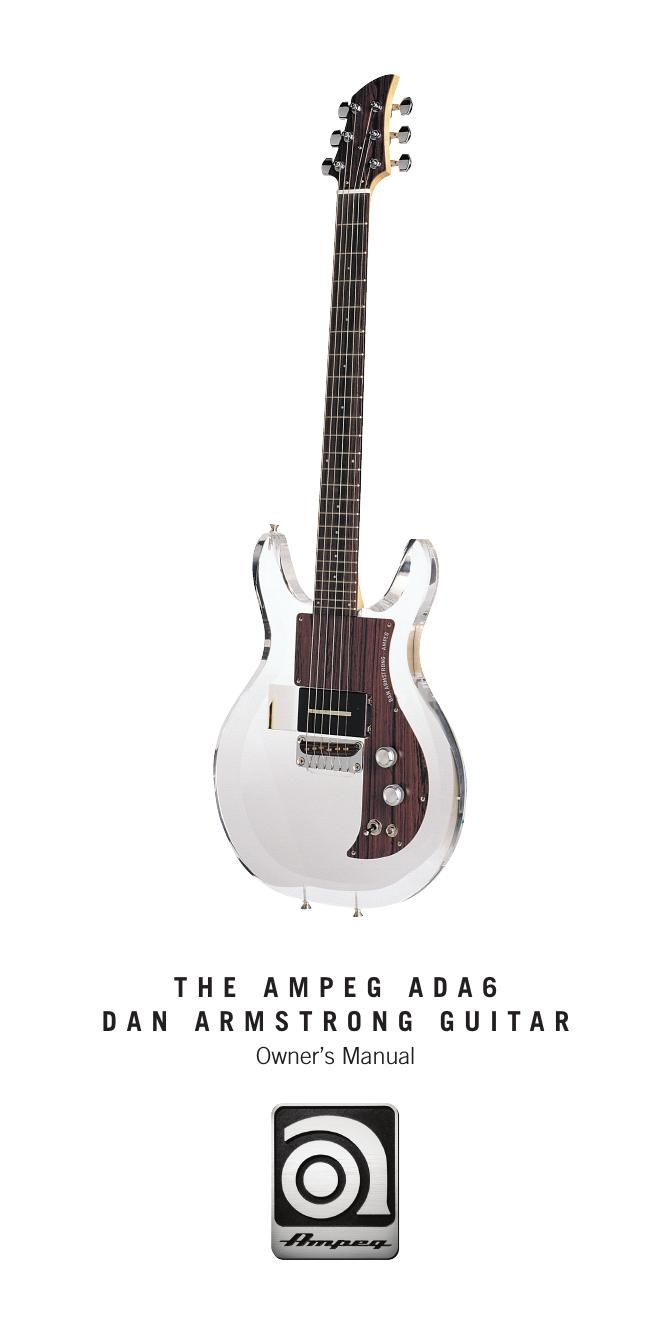

A M P E G D A N A R M S T R O N G G U I T A R
Congratulations on your purchase of the Ampeg ADA6
Dan Armstrong Guitar! Your Ampeg instrument was
manufactured to exacting specifications based on the
original design introduced in 1969. Before shipment to
your dealer, it was carefully inspected and put through a
rigorous adjustment process by highly skilled technicians
to ensure you the best possible sound and playability.
This instrument is covered by Ampegs Five Year Warranty.
We urge you to take a few minutes to familiarize yourself
with the terms of this warranty as well as some tips regarding
the operation of your instrument. With reasonable care, your
Ampeg Dan Armstrong Guitar should provide you with many
years of playing enjoyment.
Please take a moment to record the model and serial
number of your Dan Armstrong Guitar for future reference.
Model No.: ___________________
Serial No.: ___________________
Here is some additional information which will help you enjoy
years of optimum performance from your guitar.
P i c k u p s . The Ampeg ADA6 Dan Armstrong Guitar
comes equipped with two removable pickups, each with
its own distinct sound. The RT or Rock Treble pickup is
an exact duplicate of the original RT from 1969, known for
its spectacularly bright high end. Pure Rock and Roll! The
ST or Sustain Treble pickup, on the other hand, is a dual
blade, hum-canceling pickup that offers a fatter tone and
tremendous sustain, useful for modern soloing. The pickups
can be interchanged by removing the small thumb screw on
the rear of the body and sliding the existing unit out of
Page 2
the pickup cavity. After mounting the new pickup, be sure
to replace the rear thumb screw to insure correct electrical
contact and pickup alignment.
C o n t r o l s . The unique Ampeg Dan Armstrong Tone
Control circuit offers incredible tonal flexibility from a single
pickup unit. A 3-position switch is used to allow
various presets. In the CENTER position, the TONE
control is bypassed with the signal sent from the VOLUME
control directly to the instrument output jack. In the
FORWARD position, the TONE control acts in a conven -
tional way, smoothly reducing high frequencies to a warm,
dark timbre. In the REAR position, different frequencies
are affected by the TONE control, which allows a sound
reminiscent of a half-cocked wah pedal. Good for over -
driven solos! When the TONE control is fully on (clockwise)
little effect will be heard. As the TONE control is rotated
counterclockwise, the effect of the FRONT and REAR
switch positions becomes more apparent. A bit of experi -
mentation will provide you with some interesting and useful
sounds.
B r i d g e . The Ampeg Dan Armstrong Guitar uses a
carved rosewood bridge mounted to a steel bridge plate.
Small brass inserts are inlaid into the bridge, which allows
accurate intonation for string sets using an unwound G.
A small screw under the bridge plate mounts into a
threaded insert under the bridge to keep the bridge in
place during string replacement. This screw has been
set at the factory to be tight enough to keep the bridge in
place, but loose enough to allow adjustment when differ -
ent string gauges are used. This instrument is supplied
with light gauge strings (.010" -“ .046", from high to low).
If you change string gauges, you must adjust the bridge to
achieve accurate
intonation. To do so, play a harmonic at the 12th fret of the
high E string, and then fret the note at the 12th fret. If the
