Ampeg b 15 heritage manual schematic

This is the 12 pages manual for ampeg b 15 heritage manual schematic.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 12
left right
ampeg b 15 heritage manual schematic

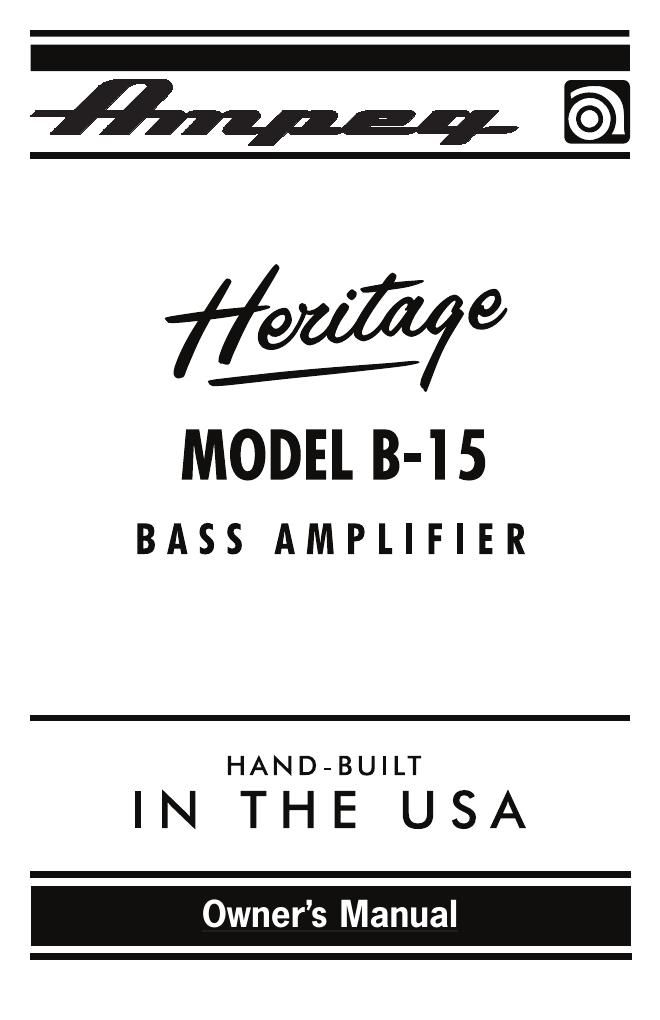

Extracted text from ampeg b 15 heritage manual schematic (Ocr-read)


Page 1

Heritage B-15 Bass Amplifier 2 Heritage B-15 Bass Amplifier 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. IMPORTANT SAFETY INSTRUCTIONS 15. Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 16. This apparatus shall not be exposed to dripping or splashing, and no object filled with liquids, such as vases or beer glasses, shall be placed on the apparatus. 17. This apparatus has been designed with Class-I construction and must be connected to a mains socket outlet with a protective earthing connection (the third grounding prong). 18. The MAINS plug or an appliance coupler is used as the disconnect device, so the disconnect device shall remain readily operable. 19. For the terminals marked with symbol of may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person or the used of ready-made leads or cords. CAUTION A VIS RISK OF ELECTRIC SHOCK . DO NOT OPEN RISQUE DE CHOC ELECTRIQUE. NE P AS OUVRIR CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SER VICEABLE PARTS INSIDE. REFER SER VICING TO QUALIFIED PERSONNE L ATTENTION: POUR EVITER LES RISQUES DE CHOC ELECTRIQUE, NE P AS ENLEVER LE COUVERCLE. AUCUN ENTRETIEN DE PIECES INTERIEURES P AR L'USAGER. CONFIER L'ENTRETIEN AU PERSONNEL QUALIFIE. AV IS: POUR EVITER LES RISQUES D'INCENDIE OU D'ELECTROCUTION, N'EXPOSEZ P AS CET ARTICLE A LA PLUIE OU A L'HUMIDITE The lightning flash with arrowhead symbol within an equilateral triangle\ is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure, that may be of suf ficient magnitude to constitute a risk of electric shock to persons. Le symbole éclair avec point de flèche à l'intérieur d'un tr\ iangle équilatéral est utilisé pour alerter l'utilisateur de la présence à l'inté\ rieur du coffret de "voltage dangereux" non isolé d'ampleur suffisante pour constituer un\ risque d'éléctrocution. The exclamation point within an equilateral triangle is intended to aler\ t the user of the presence of important operating and maintenance (servicing)\ instructions in the literature accompanying the appliance. Le point d'exclamation à l'intérieur d'un triangle équilatér\ al est employé pour alerter les utilisateurs de la présence d'instructions important\ es pour le fonctionnement et l'entretien (service) dans le livret d'instruction accompagnant l'appareil. PORTABLE CART WARNING WARNING - To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Page 2

Heritage B-15 Bass Amplifier Heritage B-15 Bass Amplifier Heritage B-15 Bass Amplifier 3 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications to this device not expressly approved by LOUD Technologies Inc. could void the user's authority to operate the equipment under FCC rules. This apparatus does not exceed the Class A/Class B (whichever is applicable) limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of the Canadian Department of Communications. ATTENTION - Le présent appareil numérique német pas de bruits radioélectriques dépassant las limites applicables aux appareils numériques de class A/de class B (selon le cas) prescrites dans le réglement sur le brouillage radioélectrique édicté par les ministere des communications du Canada. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in susceptibility to noise- induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a period of time. The U.S. Governments Occupational Safety and Health Administration (OSHA) has specified the permissible noise level exposures shown in the following chart. According to OSHA, any exposure in excess of these permissible limits could result in some hearing loss. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels use hearing protectors while the equipment is in operation. Ear plugs or protectors in the ear canals or over the ears must be worn when operating the equipment in order to prevent permanent hearing loss if exposure is in excess of the limits set forth here: Correct disposal of this product: This symbol indicates that this product should not be disposed of with your household waste, according to the WEEE directive (2002/96/EC) and your national law. This product should be handed over to an authorized col- lection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally asso- ciated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, or your household waste disposal service. Duration, per day in hours Sound Level dBA, Slow Response Typical Example 8 90 Duo in small club 6 92 4 95 Subway Train 3 97 2 100 Very loud classical music 1.5 102 1 105 The boss screaming at his minions about manual deadlines 0.5 110 0.25 or less 115 Loudest parts at a rock concert
