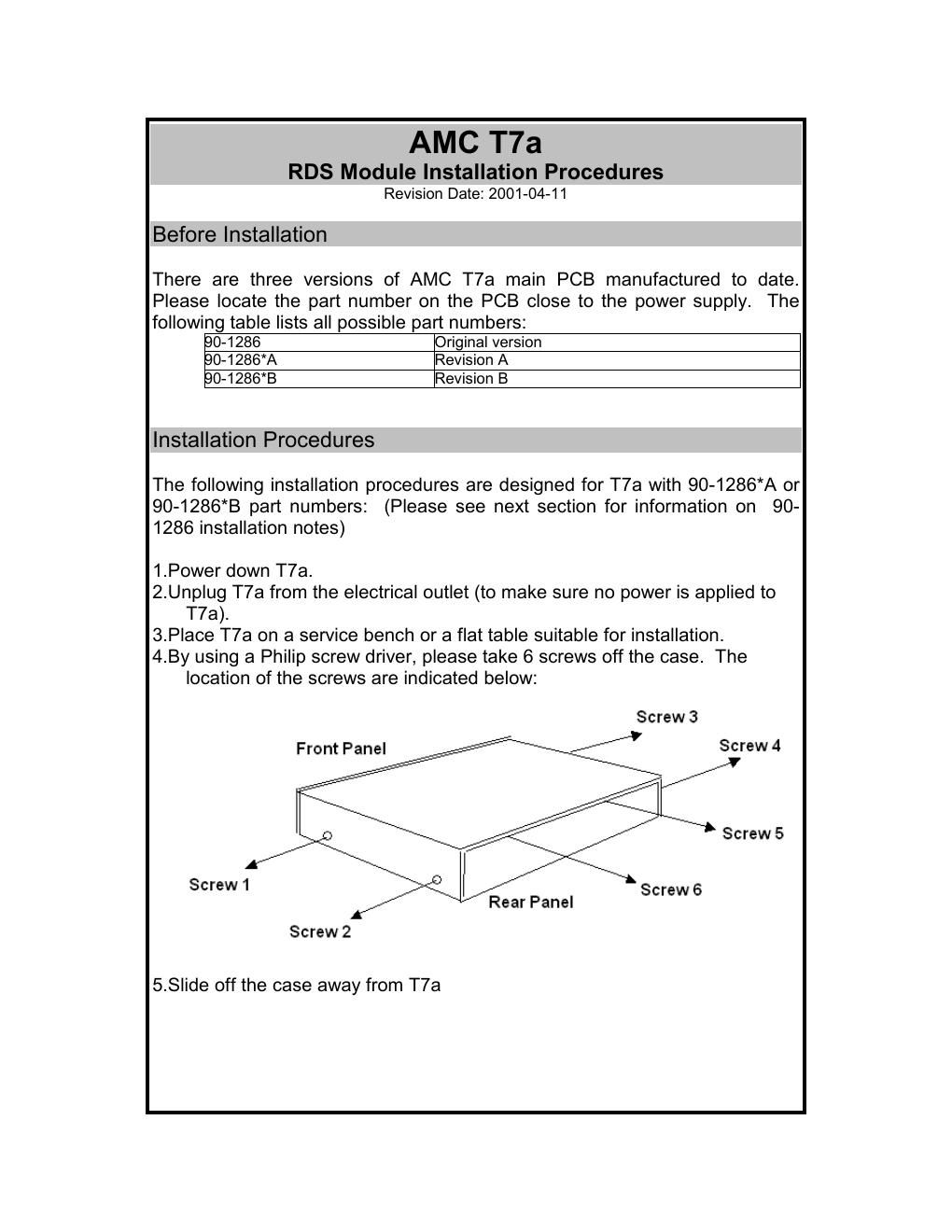

amc t 7 a service manual

Extracted text from amc t 7 a service manual (Ocr-read)


Page 1

6.Unscrew 2 screws off the Power Transform indicated below: 7.Move this Power Transformer module 1 to 2 inches toward rear panel in order to leave a space for RDS module installation. 8.Tear off the "RDS Ready" label or black color label on the back of the RDS display window. 9.Place and fit the RDS module on the RDS display window. - If the PCB of RDS module is not touching the 5 stand off posts, please add 5 washers between PCB of RDS module and stand off posts. In order to hold the washers on the PCB, please use double side tapes. - If the PCB of RDS module is touching the 5 stand off posts, please continue. 10.Screw RDS Module into RDS display position using 5 M3x6mm screws included in the RDS Module Kit.

Page 2

11.Plug the 3P plug of the short ribbon wire (3 wires) from CN102 to the JP102 socket on the Tuner Display module (located side by side with CN102) 12.Plug the 2P plug of the longer shielded wire from CN101 to 2P socket CN7 on Tuner Main PCB Module. 13.Place Power Transformer back to original location. Place two screws back to the original location. 14.Put screw locking glue on 5 screws fixing of the RDS module and 2 screws on the Power Transformer 15.Slide the case back to T7a. 16.Place 6 screws back to its original location on the case. 17.Done
