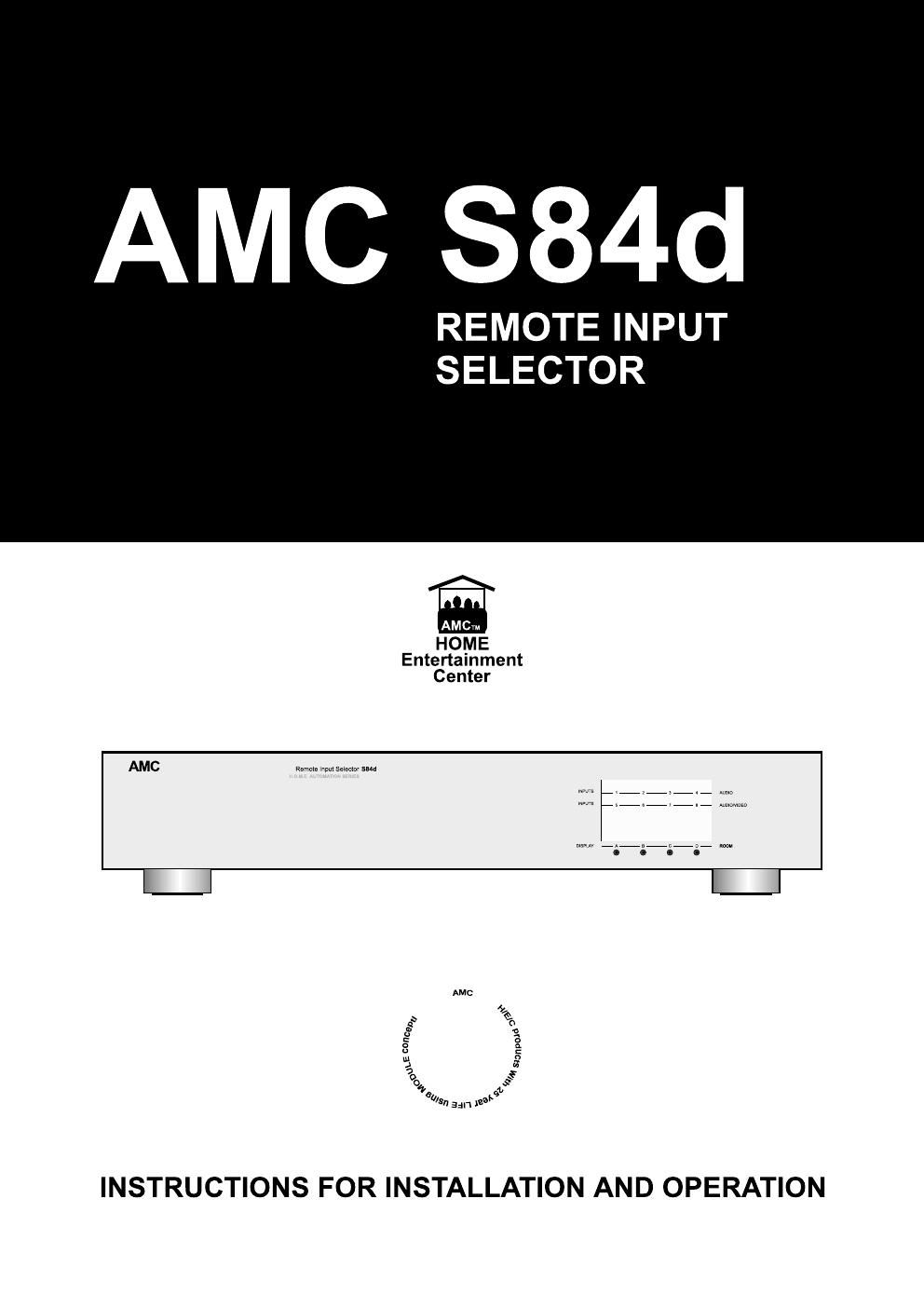

Amc s 84 d owners manual

Page 1

Page 2

The AMC model S84d Remote Souce Selector is designed for room to room type of applications, providing remotely controlled distribution of high quality audio and video signals throughout a house, through the infrared remote control of centrally located audio and video components. Eight stereo audio inputs, four composite video inputs and four infrared code inputs. Audio and video outputs for up to four rooms. Independent volume adjustment for each room. Independent source selection for each room. Independent audio mute for each room. High power infrared transmitter built_in. Remotely controlled switched power outlet socket. Buffered video outputs. Local infrared transmitter output. THD less than 0.01%. Audio S/N better than 95dB. Video Bandwidth from DC to 18MHz. 75 OHM output impedence for all audio and video outputs.
