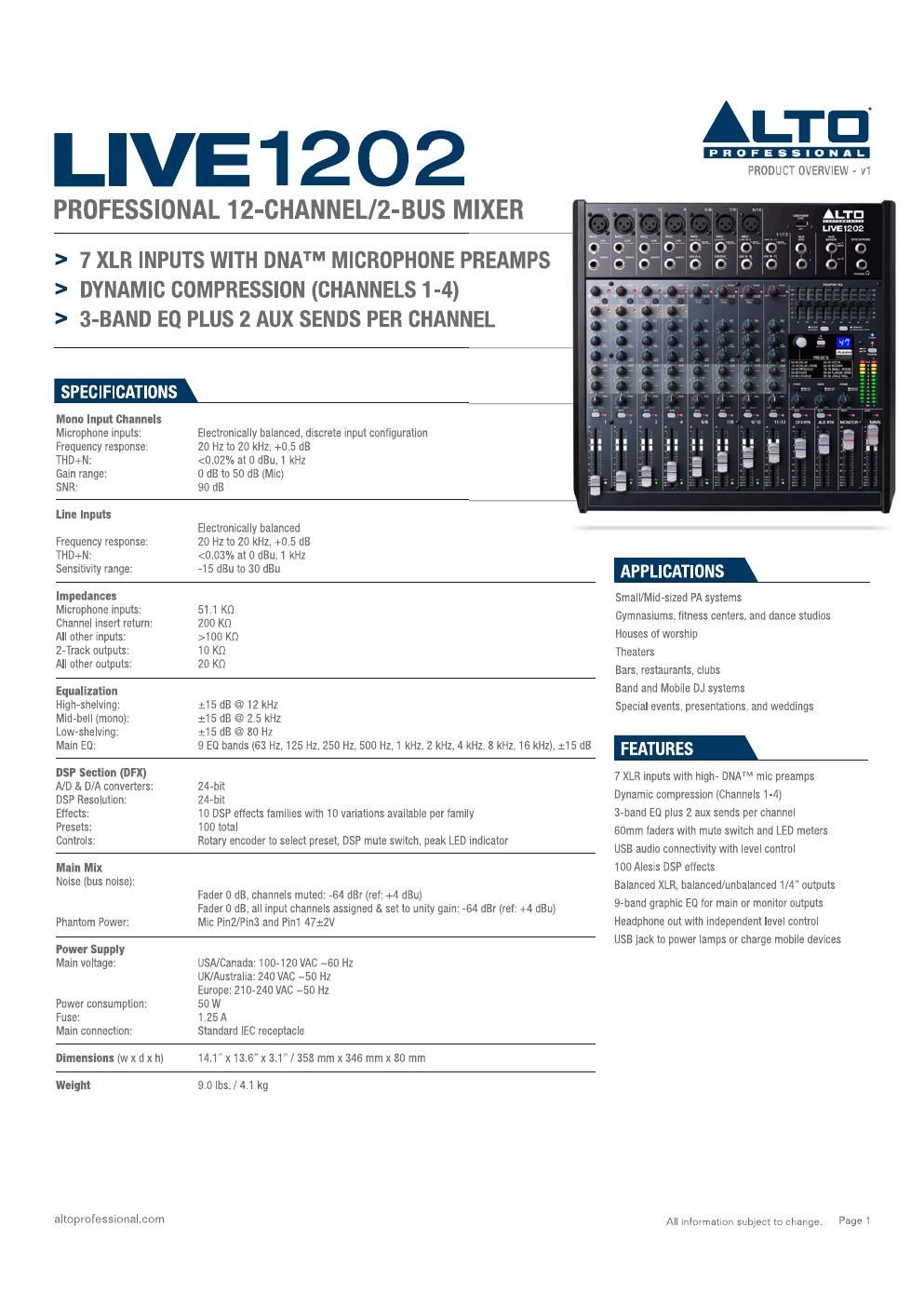

LIVE1202 J
PROFESSIONAL 12-CHANNEL/2-BUS MIXER
> 7 XLR INPUTS WITH DNATM MICROPHONE PREAMPS

> DYNAMIC COMPRESSION (CHANNELS 1-4)
> 3-BAND EO PLUS 2 AUX SENDS PER CHANNEL

SPECIFICATIONS

Mono Input Channels

Microphone inputs: Electronically balanced, discrete input configuration
Frequency response: 20 Hz to 20 kHz, +0.5 dB

THD+N: <0.0Z% at O dBu.1 kHZ

Gain range: 0 dB to 50 dB (Mic)

SNR: 90 dB

Line Inputs
Electronically balanced

Frequency response: 20 Hzto 20 kHz, +0.5 dB

THD+N: <0.03% at O dBu,1 kHZ

Sensitivity range: -15 dBu to 30 dBu APPLICATIONS

Impedances Small/Mid-Sized PA systems

Microphone inputs: 51.1 KO . .

Channel insert return: 200 K!) Gymnasiums, fitness centers, and dance studios

All other inputs: >1 00 K0 Houses of worship

2-Track outputs: 10 K0 Theaters

A other outputs: 20 KO Bars. restaurants, clubs

Equalization Band and Mobile DJ systems

Higheshelving: :15 dB @ 12 kHz Special events. presentations, and weddings

Mid-bell (mono): :15 dB @ 2.5 KHZ

Low-shelving: :15 dB @ 80 Hz

Main E0: 9 E0 bands (63 H1125 Hz, 250 Hz, 500 Hz.1 kHz. 2 kHz, 4 kHz, 8 kHz.16 kHz), :15 dB @-

DSP 595m) (0 . 7 XLR inputs With high- DNATM mic preamps

ND 8. 01A converters: 24-bit D Ch 1 4

DSP Resolution: 24-bit ynamic compression ( annels - )

Effects: 10 DSP effects families with 10 variations available per family 3-band E0 plus 2 aux sends per channel

Swim?» :20? 1013' d t l t t DSP I h k LED _ d 60mm faders with mute switch and LED meters
on m s, 0 ary enco er 0 se ec prese, mu e SWI c , pea In ica or USB audio connectivity With level control

Main Mix 100 Alesis DSP effects

Noise (bus noise): Balanced XLR. balanced/unbalanced 1/4" outputs

Fader 0 dB, channels muted: -B4 dBr (ref: +4 dBu) 9 b d 11' EOf . 't t
Fader 0 dB. all input channels assigned & set to unity gain: -64 dBr (ref +4 dBu) ' an grap 5 or main or mom or 0 pu 5
Phantom Power: Mic Pin2/Pin3 and Pin1 47:2V Headphone outwith independent level control

USBjack to power lamps or charge mobile devices

Power Supply
Main voltage: USA/Canada: 100-120 VAC ~60 Hz
UK/Australia: 240 VAC -50 Hz
Europe: 210-240 VAC ~50 HZ
Power consumption: 50 W
Fuse: 1.25 A
Main connection: Standard IEC receptacle
Dimensions (w x d x n) 14.1 " x 13.6" x 3.1" / 358 mm x 346 mm x 80 mm
Weight 9.0 lbs. / 4.1 kg

altoprofessionalcom All information subiect to Change. Page 1
