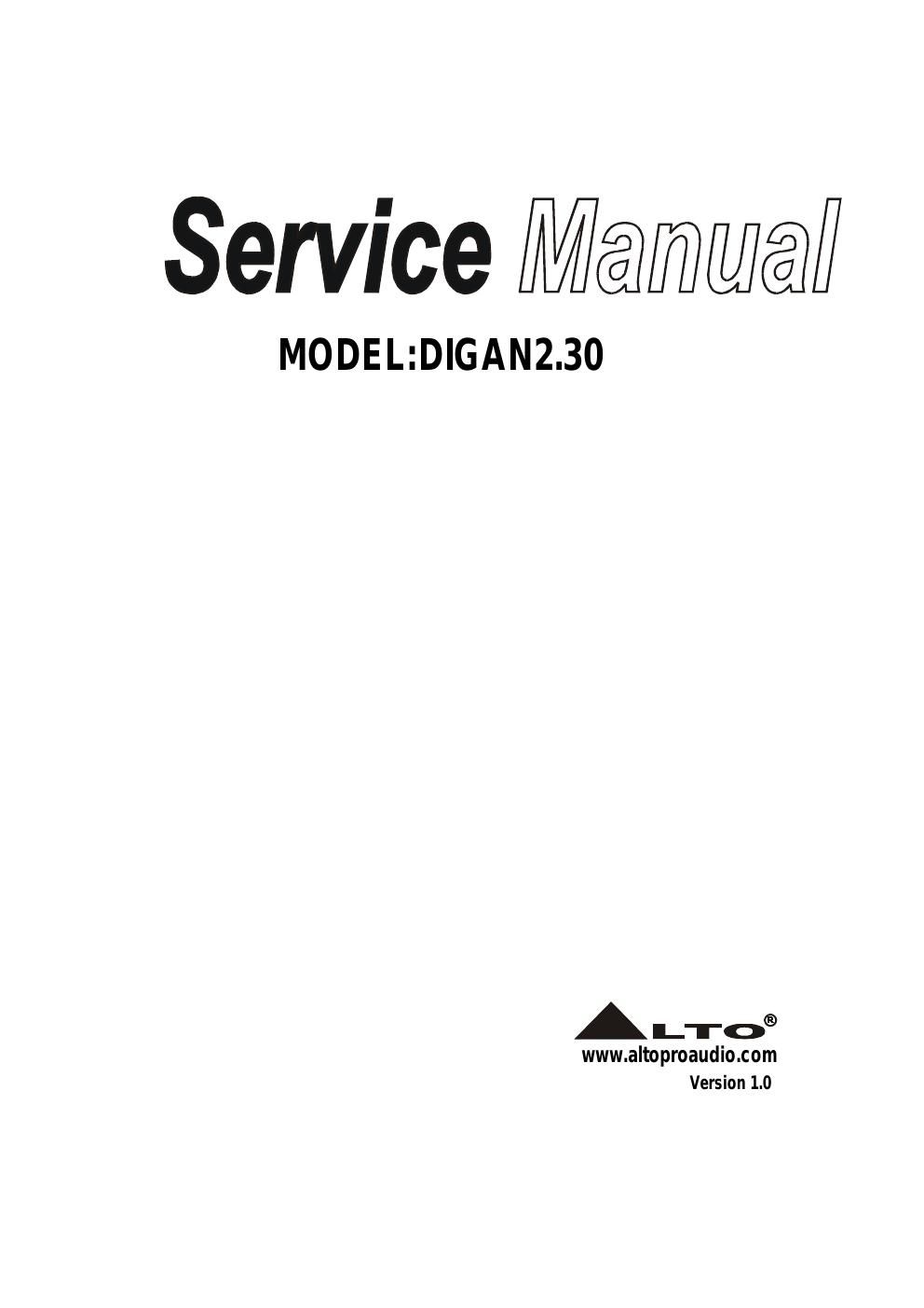

Alto digan 2 30 service manual

This is the 31 pages manual for alto digan 2 30 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to

Page: 1 / 31
left right
alto digan 2 30 service manual

Extracted text from alto digan 2 30 service manual (Ocr-read)

Page 1

CONTENT 1. Introduction-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦\ -¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦.1 2. Specification-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦\ -¦-¦-¦-¦-¦-¦-¦-¦-¦...2 3. Block Diagram-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦\ -¦-¦-¦-¦-¦-¦-¦-¦-¦-¦3 4. Schematic Diagram-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦\ -¦-¦-¦-¦-¦-¦-¦-¦..5 5. Wiring Diagram-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦\ -¦-¦-¦-¦-¦-¦-¦-¦-¦10 6. PCB Layout-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦\ -¦-¦-¦-¦-¦-¦-¦..11 7. Test Procedure-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦\ -¦-¦-¦-¦-¦-¦-¦-¦...19 8. Exploded View & Mechanical Parts List-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦..23 9. BOM-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦\ -¦-¦-¦-¦-¦-¦-¦-¦-¦-¦..24

Page 2

1. Introduction DIGAN 2.30 is the biggest unit in the DIGAN range. It is 2 30 bands stereo equalizer and it themost versatile p rocessor of this kind. Th e unit is only 1U and also inclu des an interna l power supply. It is therefore p articularly space-efficient. The unit makes use of a power 24 bit DSP and 100dB codecs and it comes w\ ith USB inte rface Stereo 1/3-octave, 2 30 bands digita l equalizer 24 bit DSP, 100 dB codec s Large LED mat rix as intuitive U ser Interface and real time control Locking mode t o prevent unwa nted changes Balanced input and output 30 Factory pres ets and 60 User presets Internal power supply USB interface Possibility to up date the Firmwa re from Alto Web Sit e Free windows, PC Editor 24/192 Digital output - 1 - for easy connection with a remote PC. Did you ever try to operate one of\ the 2 30 bands digital equalizers made by other Brands? It would take you at least 30 minutes to run a c omplete curve. But with the down loada ble Windows Editor, you can simply connect DIGAN 2.30 to a PC via the reside nt USB interface and will take min utes do adju st the curve and st ore it into on e of the m any mem ory cells available in the DIGAN 2.3. No t only! We have created 30 Factory presets for your benefit and there are easily recallable through buttons of the front panel. And if you are leaving in the digital domain, DIGAN 2.30 is provided with a 24-bit/192 kHz digital interface and external clock via BNC co nnector. If you are work ing in studio or busy is balancing a mix at mix at Live DIGAN 2.30 is your on ly choice at a price that is truly affordable. Key features and benefits
