Altec seventeen brochure
This is the 2 pages manual for altec seventeen brochure.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Extracted text from altec seventeen brochure (Ocr-read)

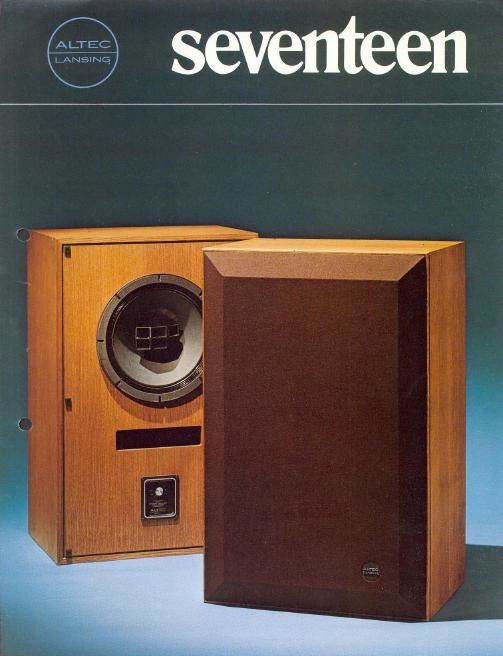

Page 1
Q seventeen
Page 1
Q seventeen
Page 2
model seventeen
featuring the latest version of the timc»proven Altec 604
studio monitor speaker series. the 604-86. the Model
Seventeen provides the home listener \tith the sound
quality that has been the reference standard of the record-
ing. industry for over a quarter of a century.
The Seventeens duplex speaker system features a l5
bass dri\cr with coaxially mounted sectoral horn and
compression driver which. in combination. are designed
to produce vibrant bass. transparent mitlrange and bril-
liant high-frequency response that is smooth throughout
its entire 30 Hz to 20 kH/ range.
This liigh-elhciency system is the result of advanced
research in materials and production techniques which
developed a new lightweight. high-frequency diaphragm
assembly. Additionally. the chenteen's duplex speaker
format offers a single-point source of sound for all freL
SPECIFICATIONS:
SPEAKER
(.OMION 15 bass driver with coaxially
mounted sectoral horn and
compression driver
NOMINAL IMPEDANCE: 8 ohms
(ROSSOVER
FREQUENCY: ISOO H/
ENCLOSI'RE TYPE: \enied
SENSITIVITY:
Measured at 4 feet, I uatt
input referenced to 8 ohms.
using pink noise \\h|L'h has
been limited to a bandwidth
of 00 H7 to 3 kH7
100 dB Sll
II R ILQ U ENCY
RESPONSE: 30 H210 30 kHz
DISPERSI so" at *6 dB vertical
Measured llh pink noise 70 at 76 dB horilontal
limited to a bandwidth of
ant) Hz to 3 kHz at a distance
of 4 feet
queneies. which results in the ultimate in accurate phasing
and stereo imagery.
The Seventeens new asymmetrical dividing network
design features a 12 dB/octave low-pass filter and an
18 dB/oetave high-pass filter which adds to the improved
response. increases the systems power capacity and limits
distortion to a minimum level in the mid frequencies.
Developed specifically for the critical. professional studio
monitoring applications. the Seventeens enclosure is
rigidly reinforced to function as a single, inert cavity.
Internal volume is approximately 9 cubic feet and the
vent is tuned for tight. crisp. low bass tonal quality.
The cabinet is finely crafted of furniture-grade. rift-cut
oak. hand-rubbed with pure. natural oils. lts acoustically
transparent removable grille is beautifully shaped of
cocoa brown knit fabric. framed in solid oak.
LONG TERM BROAD
BAND 1 AXIML'M
POWE
\leasured With a source of
pink noise limited to the
frequency response bandwidth
of the system. over an extended
time period.
OPERATIONAL POWER
RANGE:
Recommended for use \K'llll
amplifiers between these
levels.
LONG TERM
MAX MUM ACOl'STIC
OUTPUT:
Measured \\lII1 a source of
pink noise limited to the
frequency response bandwidth
of the system at a distance of
65 watts
IO watts to 350 watts
118 dB SIL 31165 watts
4 feet.
FIVISH: Hand-rubbed oiled oak
GRILLE: Acoustieally transparent
brown knit fabric mounted on
removable frame
DIMENSIONS: 40" H \' 20" W x IX D
(l()l.6 cm H K (16 cm W x
45.7 cm D)
SHIPPING WEIGHT: 162 lbs. 7 715 kg
NET EIGHT: HX lbs. (12.6 kg
Al- I ECI,
SOUND PRODUCTS DIVISION
15H SOL'TH MANCHHST ER
ANAHEIM. CAIN-192803 U. ..\. t\l.TF(' ('URPORA l ION
Printed in LISA. 676 Al 6052
Page 2
