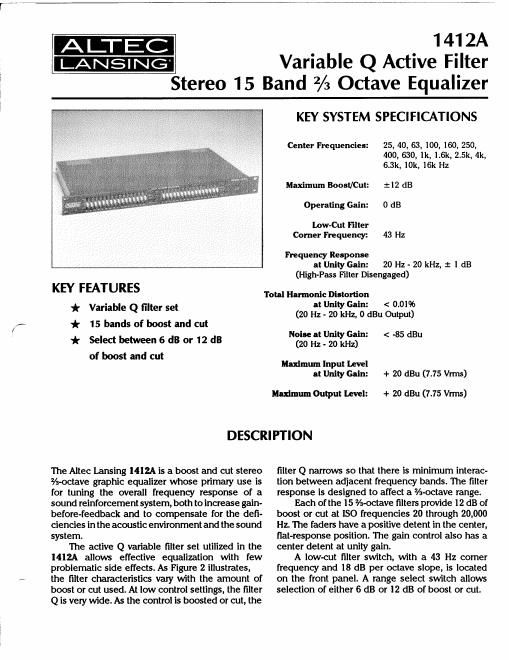

1412A
Variable Q Active Filter
Stereo 15 Band 2/2. Octave Equalizer
KEY FEATURES
* Variable Q filter set
wk 15 bands of boost and cut
KEY SYSTEM SPECIFICATIONS
25, 4o, 63, 100, 160, 250,
400, 630, 1k, 1.6K, 2.5x, 4k,
6.3k, 10k, 16k Hz
Center Frequencies:
Maximum Boost/Cut: :12 dB
Operating Gain: 0 dB
Low-Cut Filter
Comer Frequency: 43 Hz
Frequency Response
at Unity Gain: 20 Hz - 20 kHz, 1- 1 dB
(High-Pass filter Disengaged)
Total Harmonic Distortion
at Unity Gain: < 0.01%
(20 Hz - 20 kHz, 0 dBu Output)
Noise at Unity Gain: < -85 dBu
* Select between 6 dB 0" 12 dB (20 HZ . 20 kHz)
of boost and cut
Maximum Input Level
at Unity Gain: + 20 dBu (7.75 Vrms)
Maximum Output level: + 20 dBu (7.75 Vrms)
DESCRIPTION
The Altec Lansing 1412A is a boost and cut stereo
Ss-octave graphic equalizer whose primary use is
for tuning the overall frequency response of a
sound reinforcement system, both to increase gain-
before-feedback and to compensate for the deli-
ciencies in the acoustic environment and the sound
system.
The active Q variable filter set utilized in the
1412A allows effective equalization with few
problematic side effects. As Figure 2 illustrates,
the filter characteristics vary with the amount of
boost or cut used. At low control settings, the filter
Q is very wide. As the control is boosted or cut, the
filter Q narrows so that there is minimum interac-
tion between adjacent frequency bands. The filter
response is designed to affect a 2lsdoctave range.
Each of the 15 %-octave filters provide 12 dB of
boost or cut at [so frequencies 20 through 20,000
Hz. The faders have a positive detent in the center,
flat-response position. The gain control also has a
center detent at unity gain.
A low-cut filter switch, with a 43 Hz comer
frequency and 18 dB per octave slope, is located
on the front panel. A range select switch allows
selection of either 6 dB or 12 dB of boost or cut.
Input:
Typet
Impedance:
Normal level:
Output:
Twe:
Impedance:
Load Impedance:
Peak Indicator:
Available Gain:
High-Pass Filter:
Controls:
1 41 2A Specifications (contd)
(Ref. 0 dBv = 0.775 Vrms)
Electronically balanced
44 k0 balanced
22 k0 unbalanced
0 dBv (0,775 ers)
(Ref. 0 dBm = 0.775 Vnns
across 600 0)
Electronically balanced
120 0 balanced
60 Q unbalanced
600 0. or higher
Red LED + 14 dBu (5 dB
before clipping)
:SdBor112dB
Switch selectable with
cutoff below 43 Hz and a
slope of 18 dB per octave.
O 15 center detent slide
controls at 36-octave cen-
ter frequencies from 20
Hz to 20 kHz, selectable
4.- 6 dB or 1 12 dB
boost/cut.
O LEVEL control with
center detent
O LO-CUT select switch
ORANGE: 6dBor: I2
dB select switch
Connectors:
Input:
Output:
AC Power:
Operating Temperature
Range:
Dimensions:
Height:
Width:
Depth:
Net Weight:
Enclosure:
Accessories:
Figure
:12 dB Control Settings, Individually Set
l
O EQ-ON Equalizer ON
select switch
0 AC Power switch
0 Ground-Lift Switch
3 Terminal barrier strip
(balanced)
3 Terminal barrier strip
(balanced)
115, 230 Vac 50/60 Hz
18 Watts
Up to 50° C (122° F)
1.73 inches (44 mm)
19.0 inches (483 mm)
9.24 inches (235 mm)
6.0 lbs (2.7 kg)
Rack Mount Chassis (I 3/4
inch rack space)
(Included)
Power cord, mounting
screws, rubber feet, decal
and fuse for 230 Vac line
operation, MIZA Installa-
tion and Operating Instruc-
tions
