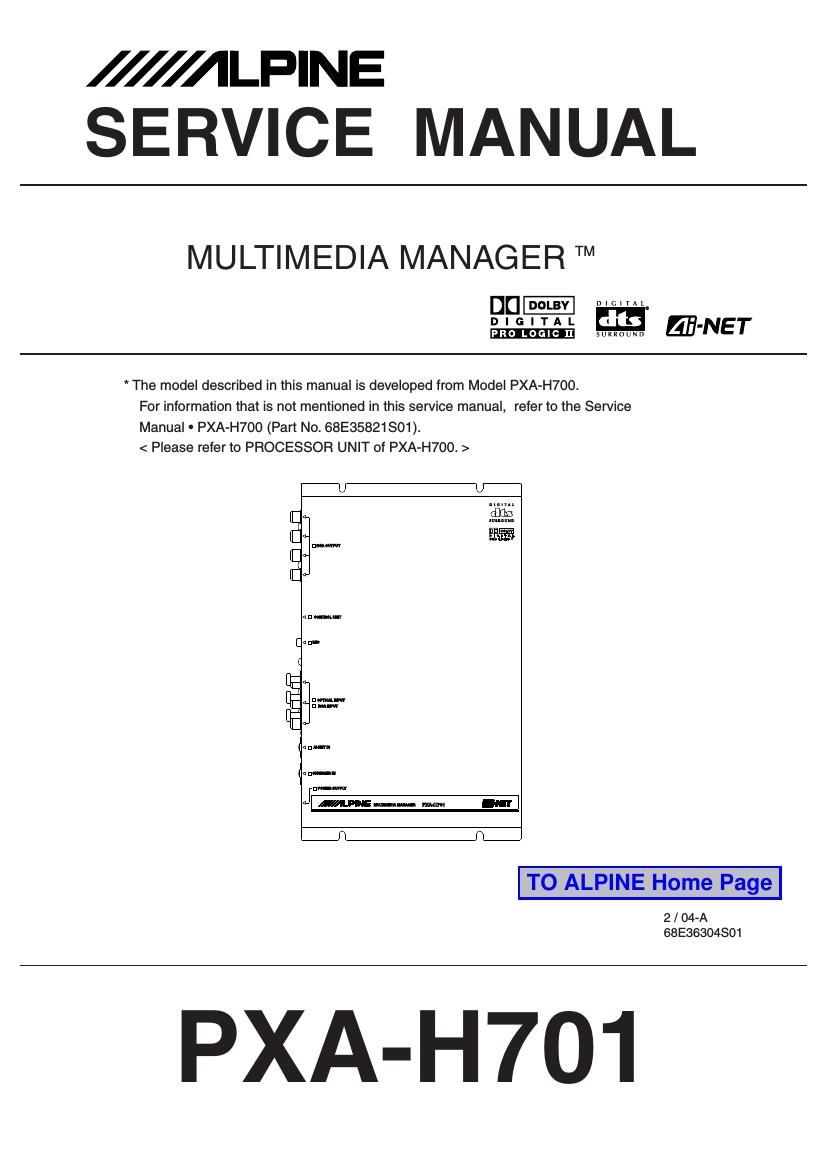

alpine pxah 701 service manual

Extracted text from alpine pxah 701 service manual (Ocr-read)

Page 1

The following cautions will prevent accidents in the workplace and will ensure safe products. *The symbols indicate caution is needed to prevent injuries and damage to property. The symbols and their meanings follow. *The following symbols indicate two levels of cautions. When you see this symbol, you have to be very careful. When you see this symbol, you have to follow the instructions there. Do not look squarely into the laser light Fuse Caution coming from the pickup. Always use a designated fuse. You may loose you sight. Use of an incorrect fuse may result in a fire. Do not allow wiring to be caught in the Battery Caution screw/chassis. Use the designated battery. If wiring is caught in the screw/chassis, it may Confirm the correct polarity and seat of the cause a short circuit, resulting in a fire. battery. An incorrect battery or an improperly connected or seated battery may result in a fire. High Temperature Caution Designated Parts Caution Touching the heat sink may cause severe burns. Look up the part list and ensure that only designated parts are used to prevent problems or accidents. Reverse Power Supply Connections o r Wiring Caution Misconnections Caution Ensure that the wiring is correct when rewiring to Reverse power supply connections or prevent problems with ignition/breakdown. misconnections may cause ignition problems and smoke may result. Soldering Caution Wear Glove s Hot solder from solder splash may cause severe Wear gloves to prevent electrical shocks or injury burns. from the end face of the metal.If you ignore this symbol and handle the product incorrectly or unsafely, injury or only material damage may result. If you ignore this symbol and handle the product incorrectly or unsafely, serious injury or death may result. Warning Caution Warning Caution

Page 2

PXA-H701 Contents Packing Assembly Parts List 4 Packing Method View 4 5 , 6 Specifications System Connection Block Diagram NOTE : Due to continuing product improvement, specifications and designs are subject to change without notice. Refer to the Service Manual - PXA-H700 (Part No. 68E35821S01).
