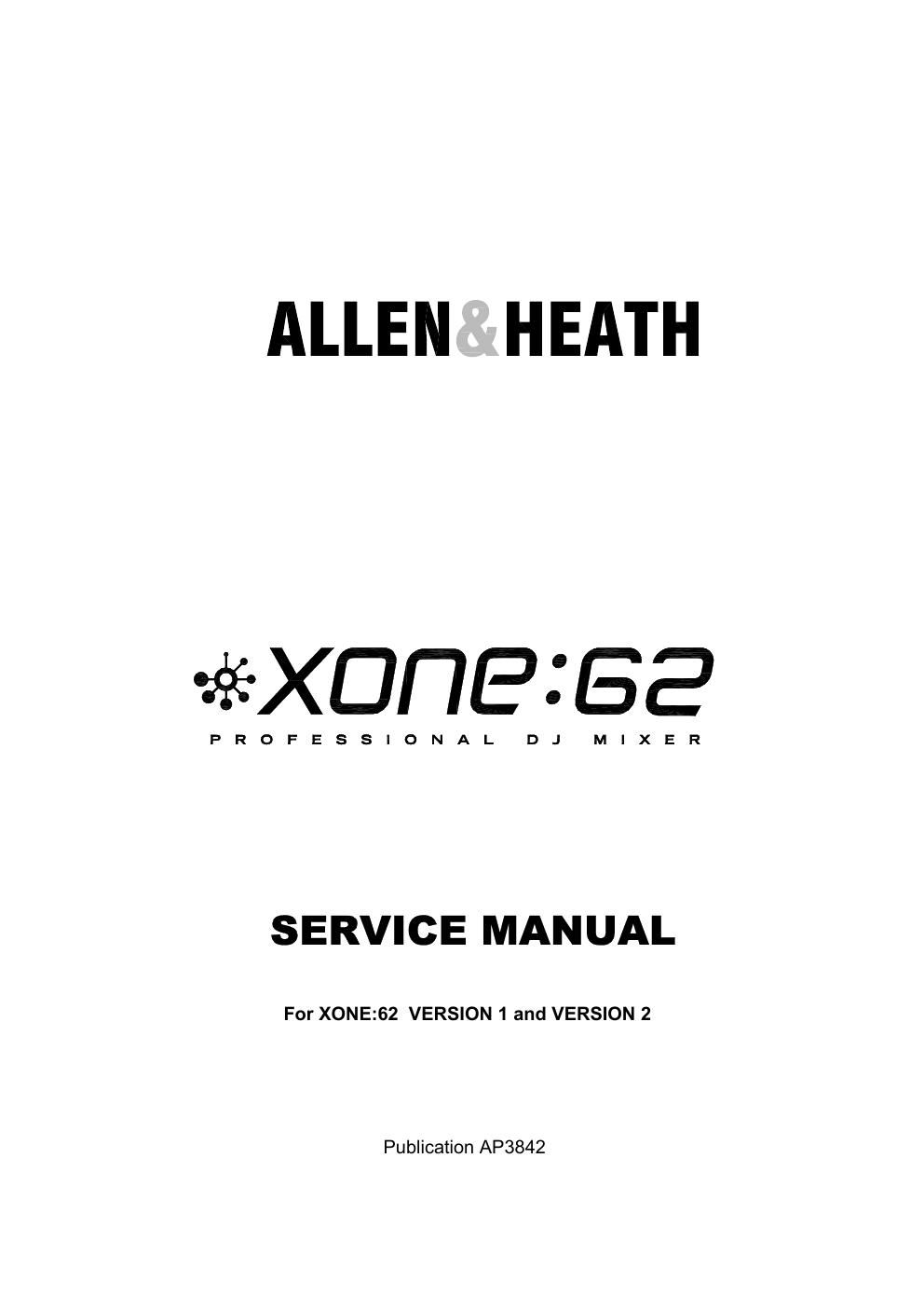

allen heath xone 62 service manual

Extracted text from allen heath xone 62 service manual (Ocr-read)


Page 1

2 XONE:62 Service Manual Allen & Heath Technical Support This service manual provides technical information for servicing the XONE:62. It refers to both the original (VERSION 1) and the revised (VERSION 2) model XONE:62. Whilst we believe the information presented to be reli able we do not assume responsibility for inaccuracies. We also reserve the right to make changes in the interest of further product development. For further technical support please contact us at Allen & Heath. The contact details are printed below. To help us provide the most efficient service please quote the console serial number in any communication regarding th is product. Our Internet site provides further information on our full product range as well as contact details for our distribution network. This product complies with the European Electromagnetic Compatibility directives 89/336/EEC & 92/31/EEC and the European Low Voltage Directives 73/23/EEC & 93/68/EEC. This product has been tested to EN55103 Parts 1 & 2 1996 for use in Environments E1, E2, E3, and E4 to demonstrate compliance with the protection requirements in the European EMC directive 89/336/EEC. During some tests the specified pe rformance figures of the product were affected. This is considered permissible and the product has been passed as acceptable for its intended use. Allen & Heath has a strict policy of ensuring all products are tested to the latest safety and EMC standards. Customers requiring more information about EMC and safety issues can contact Allen & Heath. NOTE: Any changes or modifications to the console not approved by Allen & Heath could void the compliance of the console and therefore the users authority to operate it. XONE:62 Service Manual AP3842 Issue 3 Copyright © 2004 Allen & H eath. All rights reserved Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK Web: http://www.allen-heath.com Email: sales@allen-heath.com support@allen-heath.com spares@allen-heath.com

Page 2

XONE:62 Service Manual 3 Important Safety Instructions WARNINGS - Read the following before proceeding : ATTENTION: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR Read instructions : Retain these safety and operating instructions for future reference. Adhere to all warnings printed here and on the console. Do not remove covers : Operate the console with its covers correctly fitted. Disconnect mains power by unplugging the power cord if the covers need to be removed for setting internal options. This work should be carried out by competent technical personnel only. Power sources : Connect the console to a mains power only of the type described in the User Guide and marked on the rear panel. Use the power cord with sealed mains plug appropriate for your local mains supply as provided with the console. If the provided plug does not fit into your outlet consult your service agent for assistance. Power cord routing : Route the power cord so that it is not likely to be walked on, stretched or pinched by items placed upon or against it. Grounding : Do not defeat the grounding and polarisation means of the power cord plug. Do not remove or tamper with the ground connection in the power cord. Water and moisture : To reduce the risk of fire or electric shock do not expose the console to rain or moisture or use it in damp or wet conditions. Do not place containers of liquids on it which might spill into any openings. Ventilation : Do not obstruct the ventilation slots or position the console where the air flow required for ventilation is impeded. If the console is to be operated in a rack unit or flightcase ensure that it is constructed to allow adequate ventilation. Heat and vibration : Do not locate the console in a place subject to excessive heat or direct sunlight as this could be a fire hazard. Locate the console away from any equipment which produces heat or causes excessive vibration. Servicing : Switch off the equipment and unplug the power cord immediately if it is exposed to moisture, spilled liquid, objects fallen into the openings, the power cord or plug become damaged, during lightening storms, or if smoke, odour or noise is noticed. Installation : Install the console in accordance with the instructions printed in the User Guide. Do not connect the output of power amplifiers directly to the console. Use audio connectors and plugs only for their intended purpose. CAUTION WARNING: This equipment must be earthed.
