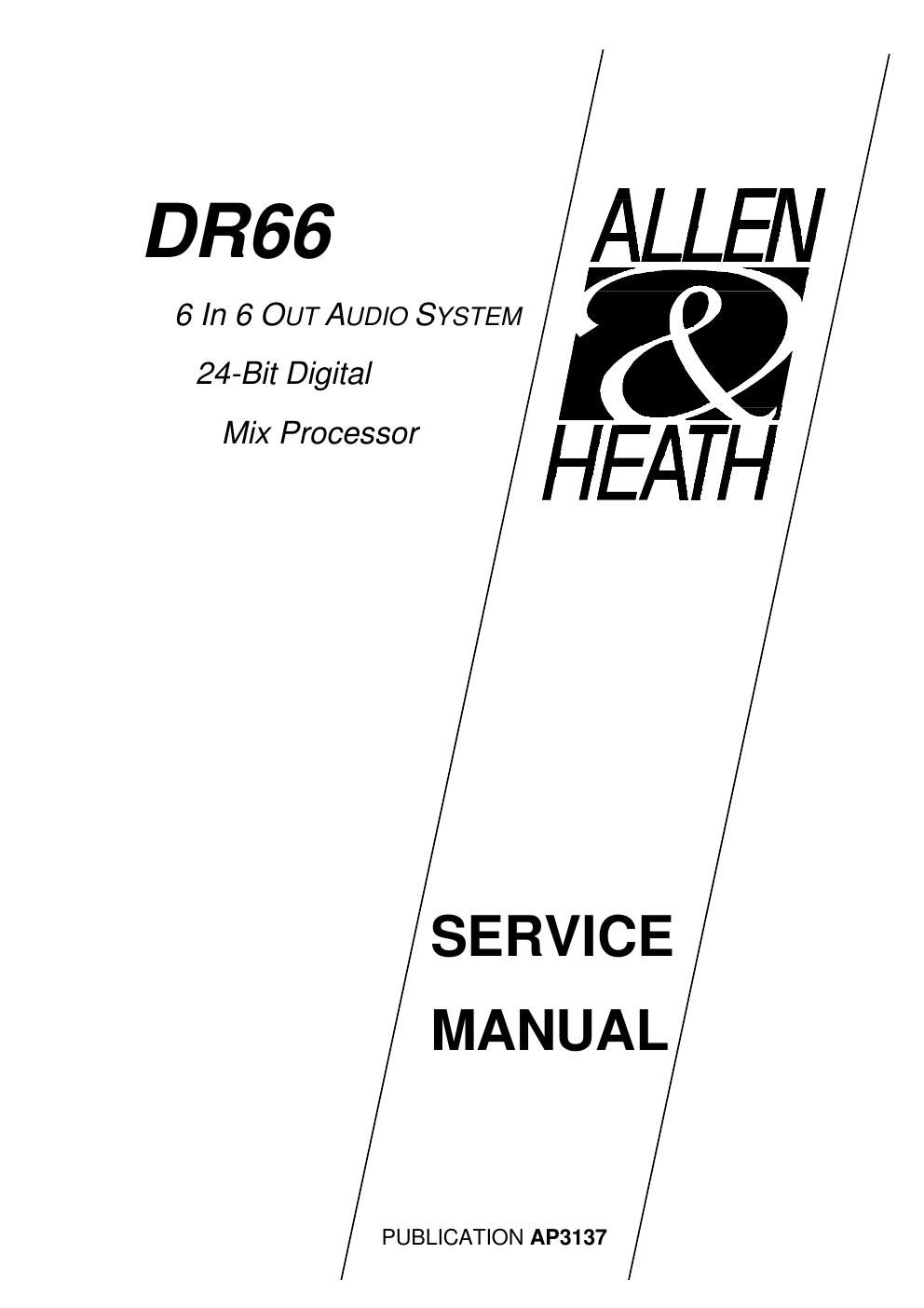

Page 1
DR66 SERVICE MANUALHOW TO USE THIS MANUAL
This service manual is published in two sections:
Section A:contains the INSTALLATION / USER GUIDE
which includes details of INSTALLATION,
CALIBRATION and OPERATION for the DR
6 6
6 6.
Section B:contains the SERVICE INFORMATION which
includes details of SPARE PARTS &
ASSEMBLIES and CIRCUIT BOARD DIAGRAMS
for the DR
6 6
6 6.
copyright ã 1998 ALLEN & HEATH. All rights reserved. Publication..........AP3137 Issue 1.
Page 2
DR66 SERVICE MANUALSECTION A
A
DR
6 6
6 6
INSTALLATION / USER GUIDEACAUTION
Refer all installation, calibration and
service work to qualified service
personnel.
