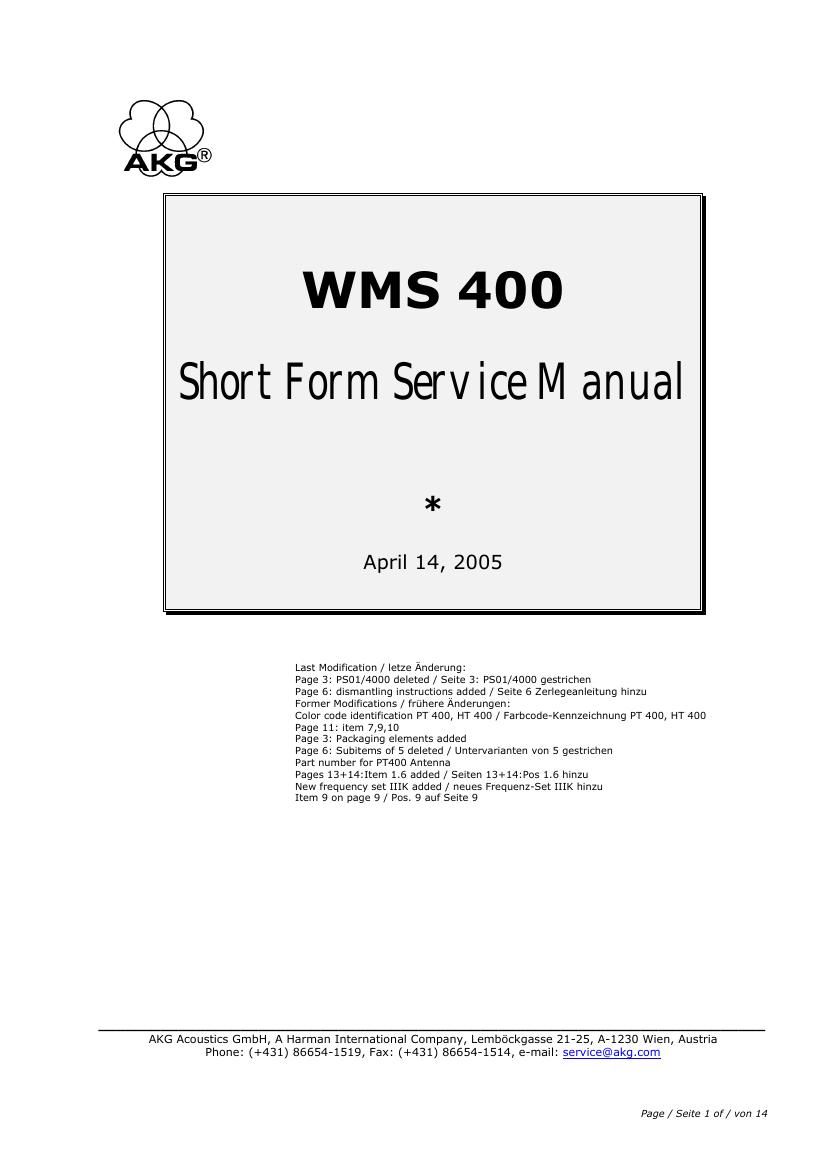

WMS 400 Service Manual General Information
Page / Seite 2 of / von 14
Table of contents:
The complete WMS 400 family 3 Die komplette WMS 400 Familie
HT 400 Handheld Transmitter 4 HT 400 Handsender
PT 400 Pocket Transmitter 8 PT 400 Taschensender
SR 400 Receiver 10 SR 400 Empfänger
RMU Rack mount elements 12 RMU Rack - Montageelemente
RMS 4000 Remote mute switch 12 RMS 4000 Remote-Fernschalter
CU 400 Charging unit 13 CU 400 Ladegerät
Page 2
WMS 400 Service Manual General Information
Page / Seite 3 of / von 14
CU 400
HT 400
2931Z00..
2931Z90..
HUB 4000
7620H09..
2999Z00..
PSU 4000
7620H07..
2997Z00..
HPA 4000
7620H08..
2998Z00..
SR 400
2930Z00..
2930Z90..
PT 400
2932Z00..
PS 4000
7620H06..
2996Z00..
RA 4000 B
2632Z0030
AB 4000
3009Z0002
3009Z0003 SRA 2B
3009Z0001
The complete WMS 400 - Family
RMU see SR4000
and PS4000
parts list
Power adapter:
Europe 0027E0047
UK 0027E0049
USA 0027E0048
Japan 0027E0059
AUS 0027E00..
Stand adapter SA63
6001H6301
ASU 4000
3009Z0004-¦
3009Z0011
SR Stationary receive r
HT Handheld Transmitter
PT Pocket Transmitter
PS Power Splitter
SRA Stationary receiver antenna
RA Receiver antenna
AB Antenna booster
ASU Antenna supply unit
PSU Power supply unit
HPA Headphone amplifier
RMU Rack-mount unit
BP Battery pack
CU Charging unit
Those components belonging to the WMS 4000 system are contained in
the WMS 4000 manual only.
Geräte aus dem WMS 4000 Programm sind nur im WMS 4000 Service
Manual enthalten.
WMS 400-Set
Packaging/Verpackung:
Case/Koffer:
3831P0001
Inlay/Einlage:
8998P0120
Inlay (lid) /
Einlage (Deckel):
8998P0121
Inlay (bottom) /
Einlage (Boden):
8998P0123
