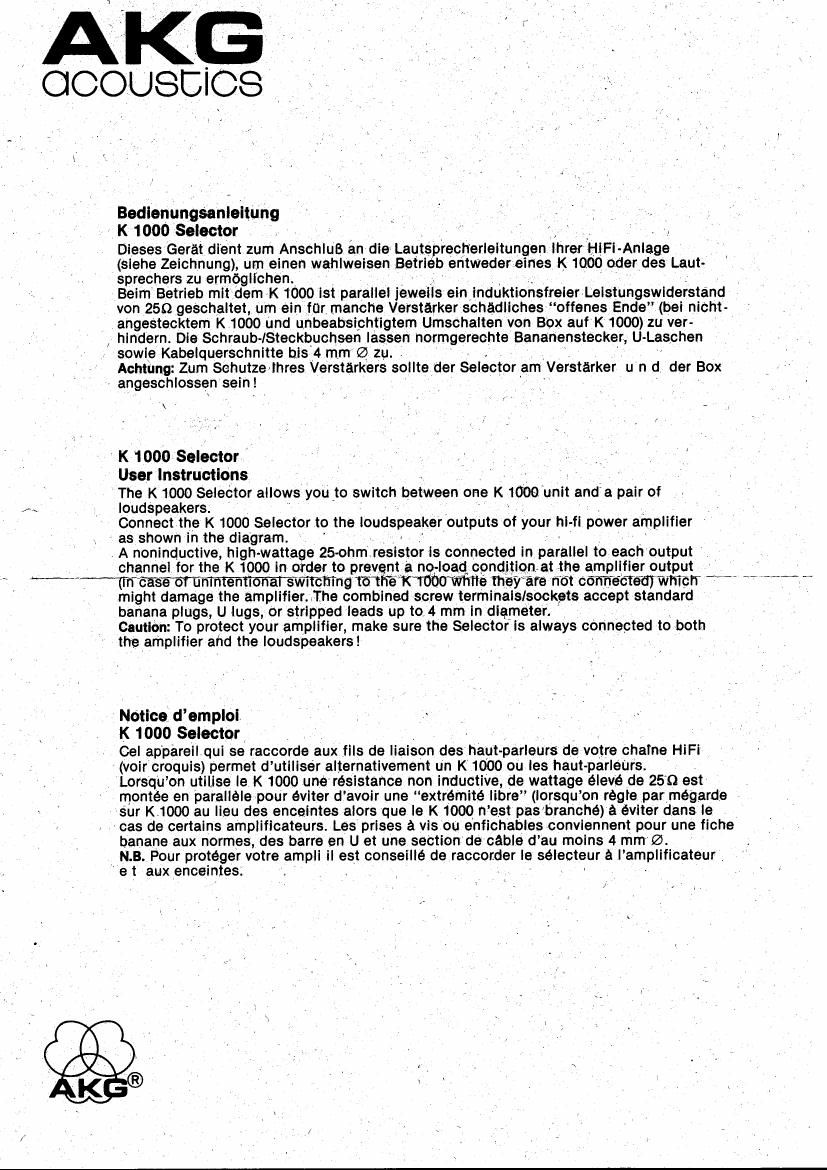

OCOUSUICS

Bedlenungsanleltung
_K 1000 Selector _ ' *
Disses Gerat dient zum AnschluB an die Lautsprecherleitungen ihrer HiFi~ Anlage
(siehe Zeichnung), um einen wahlweisen Befrieo entwader eines K 1000 odor des Laut-
sprechers zu ermOgll'chen
Beim Betrieb mit dem K 1000 ist parallel jewelis sin induktionstreler Leistungswiderstand
von 250 geschaltel, um sin for manche Verstarker schadllches offenes Ende" (bei nicht-
angestecktem K 1000 und unbeabsichtigtem Umschaiten von Box auf K 1000) zu ver-
, hindern Die Schraub ISteckbuchsen lessen hormgereohte Bananenstecker, U- Laschen
I sowie Kabeiquerschnltte bis 4 mm Q zu. _
Achtung: Zurn Schutze- ihres Verstarkers soilte der Selector am Verstarker u n d der Box
4 angeschlossen seih!

\ g _

' K 1000 Selector
User Instructions .
The K 1000 Selector allows you to switch between one K 1000 unit and a pair of
loudspeakers. ' -
Connect the K 1000 Selector to the loudspeaker outputs of your hl-fi power amplifier '
- as shown in the diagram.
, A noninductive, high-wattage 25- ohm resistor is connected in parallel to each output
channel for the K 1000 in order to prevent a helmet condition at the amplifier output
_.__.___..(m_mu firm-eritiohaismrching mfiéKmbUWhite They are not cfinnectediwhicir " "T "
might damage the amplifier. ,The combined screw terminals/sockets accept standard '
banana plugs, U lugs, or stripped leads up to 4 mm in diameter.
Caution. To protect your amplifier, make sure the Selector is always connected to both
the amplifier and the loudspeakers!

Notice demplol
K 1000 Selector - '
Cel appareil. qui se raccorde aux fiis de liaison des haut-parleurs de votre chalne HiFi
(voir croquls) permet d' utiliser alternativement 0n K 1000 cu les haut- -parleiIrs.

'Lorsqu on utilise le K 1000 me resistance non inductive, de wattage sieve de 250 est
rnontée en parallele pour éviter d' avoir une extremité libre (lorsqu on regie par mé'gerde
sur K 1000 au lieu des enceintes alors que le K 1000 n 'est pas branché) a éviter dans le
cas de certains amplificateurs. Les prises a vis ou enfichables conviennent pour une fiche
banane aux normes, des barre en U et one section de cable (1 au moins 4 mm {a
N. 3. Pour proteger votre arnpll il est conseillé de raccorder le sélecteur a l amplificateur

" et aux enceintes; _

/ _ . I

Page 2

K 1000' Selector
Mode da-empleo

Esle aparato sirve para hacer conexlén con lasdlneas de los allavoces de su equlpoHi-FI - .
(véase dibulo), para poder utilizaropclonalmente Un K 1000 0105 allavoces.
Cuando el Selector se ulillza con el K 1000, seencuemra conectada'paralelamente una
reslstencia de alto vatiale, Sin ,induccién, de 25 ohmios para impedlr qua haya un .exlremo
abierto", noclvo para alguno's amplificadores (esto se produce _cuando el K 1000 no esté"
conectado y se hace, sln querer una conmutacién de las cajas al K 1000). Los clavijeros .
rascados 0 las hemprillas ,permllen la-»ulilizaci0n de enchufes banana normallzados,rbridas
en U y secoionesde cable de hasta 4 mm de diametro. _ _ ,
ATENCION: Para proteger sulamplificador, el Selector- debe estar conectado al ampllficador

y tambien a las caj'as.

"lstruzioni duso ,
K 1000 Selector " .

Questo apparec'chlo serve per collegare lcavi degli altoparlami con il vostro implanlo hi-li
(v. disegno);»in questo modo potete Vusare, a scelta, oyla K 1000 0 le casseacustic e1
Quando usate la K 1000, e collegala in parallelo rlspettivamenteuna resistenza no
induttiva dl'25 Ohm per evllare una estrémlta aperta (in caso che la K1000 non ,sla

collegata e si passl non volulamenle dalle casse alla K1000, che polr
_lampllficatore. Le bussole llleflatelad inneslo permetlono luso di spi

dannare
nlpolarl

normalizzate,di piastrine di congiunzlohe ad U nonché dl sezloni di cavl fino ad un dla- '

metrodiAmm. ' ~

Atlanzione: per proteggere il Vostro amplificatore, il Selector dovrebbelvenir collegalo con

lampllflcalore e-le casse. »

Ansdhlqulan/Caneetion diagram

: . . . EndyerswrkerlPower-amp
\ LaulsprecheranschluB
R f L Speakenermlnal _

+-.+-

lfi ;

Ilnkelleft

O
2

L


1 3 4
R


LS box

. L K1000 SELECTOR '_

Technlsche Anderungen vomehallen Speclhcallons subjecl lo change wilhoul nouce. Sous reserve de_ moallicahqns 1echniqueys
