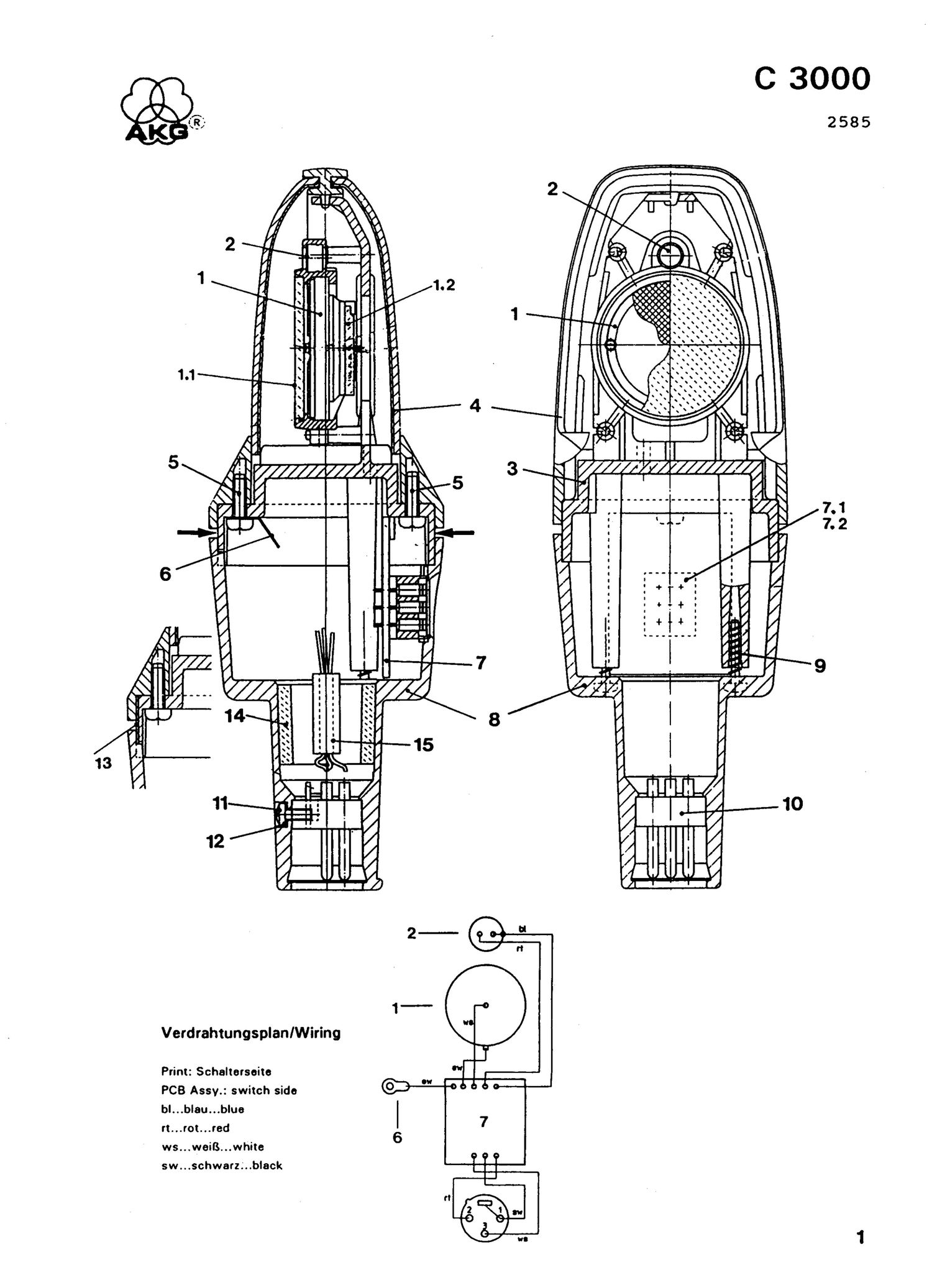

AKG - SERVICE INFO 1/1999

4 Seiten/4 pages

Lotzto Andaman: Poa. 3, Version ’8' hinzu I Last modification: Items 3. Variation '8’ added

C 3000
C 3000 silber / silver

2585 Z 0001: A
2585 Z 0002: B

Benennung Pos.Nr. Bestellnummer Stk.-Zahl Description.

Item Order number Quantity

A B

Kapse1+Lagerung 1 2585 M 1001 1 1 Capsu1e+suspension
Windschutz, vorne 1.1 2585 2 0801 1 1 Windscreen, front
Windschutz, hinten 1.2 2585 2 1101 1 1 Windscreen, rear
Kapsel CE20/27 2 2585 M 1101 1 1 Capsule CE 20/27
Trager 3 2585 2 0101 1 1 Chassis
Trager ---------------- 3 ---------- 2595-5-1691 ------- 1 --------- Ghassis
Kappe, komplett 4 2585 M 0101 1 — Cap, complete
Kappe, komplett 4 2585 M 0102 - 1 Cap, complete
Schraube EJOT 5 0099 N 3006 2 2 Screw EJOT
hétfahne -------------- 6 ---------- 4149-N-6933 ------- 1 --------- Bolder-tag
Print, komplett 7 2585 M 0201 1 1 PCB - Assembly
Schalter Sl...S3 7.1 0040 E 0072 3 3 Switch 81...83
Schalterrahmen 7.2 2585 z 0901 1 1 Switch frame
Gehfiuse 8 2585 Z 0211 1 - Housing
Gehause 8 2585 Z 0212 - 1 Housing
Schraube EJOT 9 0099 N 3007 3 3 Screw EJOT
Steckereinsatz 10 0016 E 0355 1 1 Connector
Schraube M2,5x6 11 7985 D 2502 l 1 Screw M2,Sx5
Zahnscheibe A2,5 12 6797 D 2500 1 1 Toothed washer A2,5
Hfilse 13 2585 2 1501 1 - Sleeve
Hfilse 13 2585 Z 1502 - 1 Sleeve
Streifen 14 2585 z 1701 1 1 Strip
Rohrkern 15 0023 E 0082 1 1 Ferrite core
Stativanschl. SA41/1 -- 6001 H 0314 1 1 Stand adapter SA41/1

(I,

(3.".
GWI’
