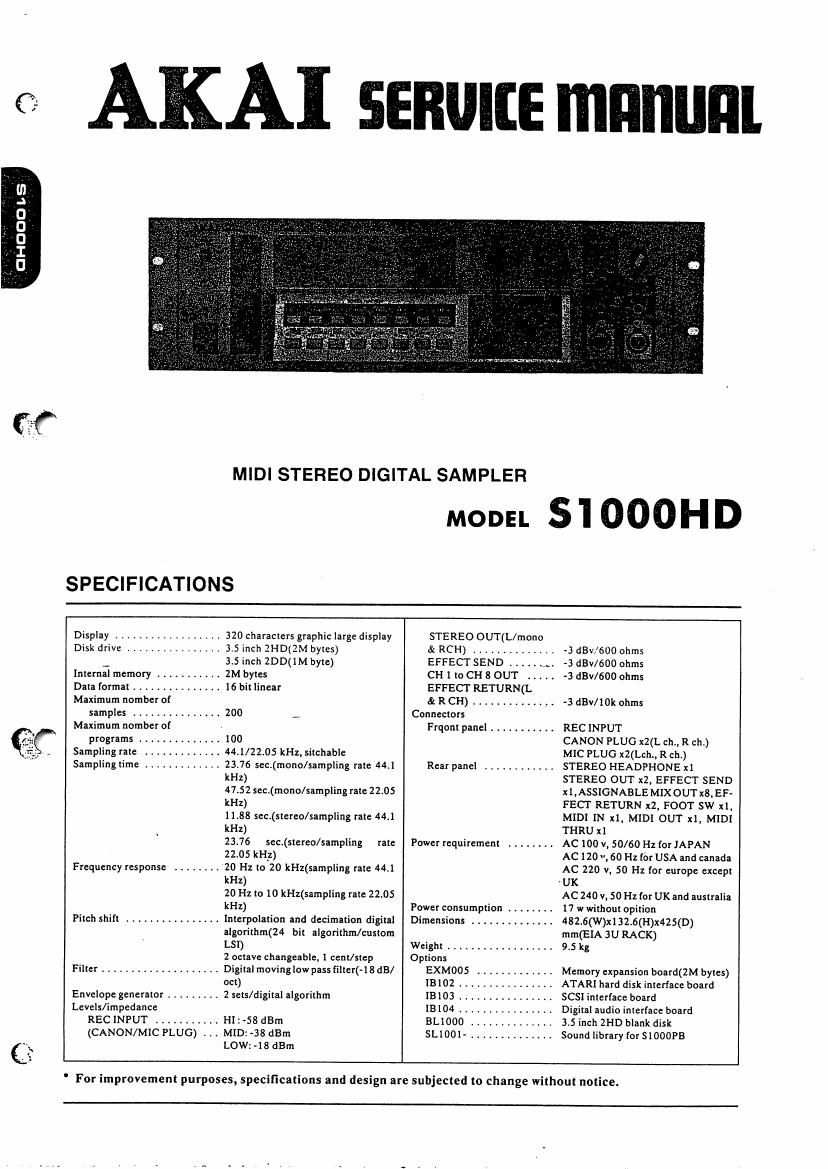

Page 1

MIDI STEREO DIGITAL SAMPLER

mount 51 OOOHD

SPECIFICATIONS

Display ........
Disk drive ......

Internal memory . . 7
Data formal .......
Maximum nomber of

samples ...............
Maximum nomber of

programs . i
Sampling rate
Samplingtime .

Frequency response

Fitch shiIt ................

Filter ....................

Envelope generator .........
Levels/impedance
REC INPUT
(CANON/MIC PLUG) . .,

320 characters graphic large display
3.5 inch 2HD(2M bytes)

3.5 inch 2DD(1M byte)

2M bytes

16 bit linear

200 _.

. 100

ALI/22.05 kHz, sitchable
23.76 sec.(mono/sampling rate 4411

kHz)
47.52 sec.(mono/sampling rate 22.05
kHz)

“118 sec,(stereo/sampling rate 44.1
kHz)

23t76 sec,(stereo/sampling rate
22.05 kHz)

20 Hz to 20 kHz(sampling rate 44.1
kHz)

20 Hz to 10 kHz(sampling rate 22.05
kHz)

Interpolation and decimation digital
algorithm(24 bit algorithm/custom
L51)

2 octave changeable, 1 cent/step
Digital moving low pass filler(-1 8 dB/
act)

2 sets/digital algorithm

HI:-SI3 dBm
MID: -38 dBm
LOW:-18 dBm

STEREO DUT(L/monu

& RCH) ........ . . . .
EFFECT SEND , .
CH 1 to CH 8 OUT
EFFECT RETURNG.

At R CH) ..............

Connectors
Frqont panel ...........

Rear panel ............

Power requirement 1 . .

Power consumption ........
Dimensions ..............

Weight ..................

Options
EXMOOS .1
113102 .....
“3103 .
IBID4 .
BL1000 r
SL1001- ..............

-3 dBv,’600 ohms
-3 dBv/600 ohms
-3 dBv/600 ohms

~3 dBv/lOk ohms

REC INPUT

CANON PLUG x2(L ch., R chl)
MIC PLUG x2(Lch., R ch)
STEREO HEADPHONE x1
STEREO OUT x2, EFFECT SEND
x1,ASSIGNABLEMIXOUTX8.EF-
FECI' RETURN x2, FOOT SW x1.
MIDI IN x1, MIDI OUT x1, MIDI
THRU x1

AC 100 v, 50/60 Hz for JAPAN

AC 120 v, 60 Hz {or USA and canada
AC 220 v, 50 Hz for europe except

‘UK

AC 240 v, 50 Hz for UK and australia
17 w without opition
482.6(W)x132.6(1-I)x425(D)
mm(E1A 3U RACK)

9.5 kg

Memory expansion board(2M bytes)
ATARI hard disk interface board
SCSI interface board

Digital audio interface board

3.5 inch ZHD blank disk

Sound library for S l OOOPB

‘ For improvement purposes, specifications and design are subjected to change without notice.

Page 2

* SAFETY INSTRUCTIONS

PRECAUTIONS DURING SERVICING

1. Parts identified by the A (*) symbol are critical for safety.
Replace only with pans number specified.

2. In addition to safety, other parts and assemblies are
specified for conformance with such regulations as those
applying to spurious radiation.

These must also be replaced only with specified
replacements.

Examples: RF converters, tuner units, antenna selector
switches, RF cables, noise blocking capacitors, noise
blocking filters, etc.

3. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads

4. Use specified insulating materials for hazardous live parts.

Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers (Insulating Barriers)

4) Insulation sheets for transistors

5) Plastic screws for fixing microswitch (especially in
tumtable)

5. When replacing AC primary side components (transform-
ers, power cords, noise blocking capacitors, etc.), wrap
ends of wires securely about the terminals before soldering.

\fiw my

6. Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors,
etc). '4

* INFORMATION

7. Check that replaced wires do not contact sharp edged or
pointed parts.

8. Also check areas surrounding repaired locations.

9. Use care that foreign objects (screws, solder droplets, etc.)
do not remain inside the set.

SAFETY CHECK AFI‘ ER SERVICING

After servicing, make measurements of leakage—current or
resistance in order to determine that exposed parts are
acceptably insulated from the supply circuit.

The leakage—current measurement should be done between
accessible metal pans (such as chassis, ground terminal,
microphone jacks, signal-input/output connectors, etc.) and
the earth ground through a resister of 1500 ohms paralleled
with a 0.15 HF capacitor, under the unit‘s normal working
conditions. The leakage-current should be less than 0.5 mA
nns AC.

The resistance measurement should be done between accessi-
ble exposed metal pans and power cord plug prongs with the
power switch (if included) “ON“. The resistance should be
more than 2.2 Mohms.

PRECAUTIONS FOR LITHIUM BATTERY

The lithium battery may explode when heated excessively.
[OBSERVE THE FOLLOWING WHEN REPLACING]
O replace with the same make and type only.

0 Use soldering iron in “recommended way" only.

0 Place battery in correct polarity.

I Do not short the terminals.

0 Do not recharge battery.

0 Do not dispose of battery in lire.

[DANGER] [RECOMMENDED WAY]

SYMBOLS FOR PRIMARY DESTINATION
Alphabet indicates the destination of the units as listed below.

Symbols Principal Destinations

USA

UK

Canada

[E Europe (except UK)

Japan

IE Australia
W. Germany only
Universal Area
Custom version

SERVICE MANUAL

@
