Akai PRO 1000 Service Manual

This is the 47 pages manual for Akai PRO 1000 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 47
left right
Akai PRO 1000 Service Manual

Extracted text from Akai PRO 1000 Service Manual (Ocr-read)


Page 1

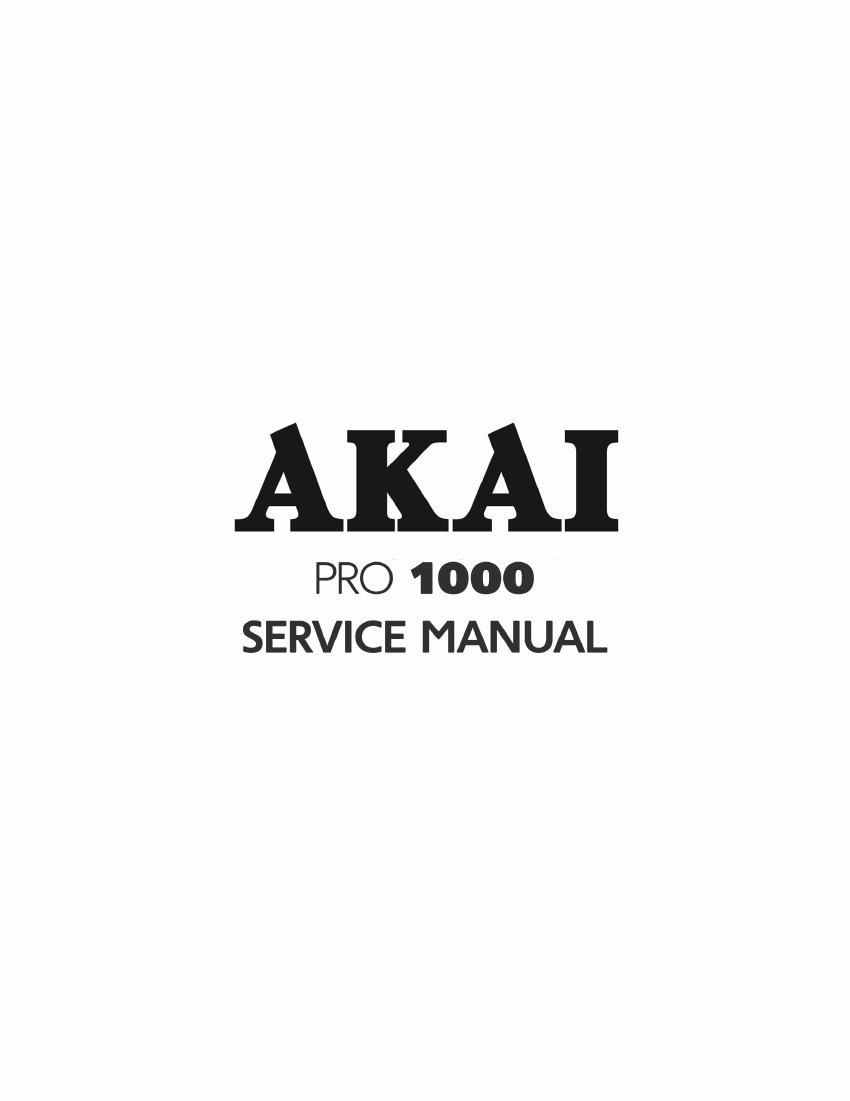

AKAI

PRO 1000
SERVICE MANUAL

Page 2

I'. TECHNICAL DATA

RECORDING TRACK SYSTEM
PLAYBACK TRACK SYSTEM

MAXIMUM REEL SIZE
TAPE SPEED

2-track, 2-channel stereo system
Z—track, 2-channel stereo system
4-track, 2-channel stereo system
Size 26 (No. 10)

38cm/sec, Dem/sec, 9.5cm/sec

TAPE SPEED DEVIATION $0.570
WOW AND AND FLUTTER SBCm/sec: 0.025% WRMS
l9cm/sec: 0.04% WRMS

TAPE RISING CHARACTERISTICS

FREQUENCY CHARACTERISTICS

OVERALL HARMONICS DISTORTION RATE

9.5cm/sec: 0.08% WRMS

0.8 sec at 38cm/sec speed

(Time from start—up to time wow and flutter enter specified value)
38cm/sec, OVU recording: 50~20,000Hz, ildB

19cm/sec, OVU recording: 40~24,000Hz, i3dB

9.5cm/sec, OVU recording: 60~12,000Hz, 13d];

Not more than 1%, 1kHz, OVU (38cm/sec, chm/sec, 9.5cm/sec)

TOTAL S/N RATIO 60dB
PLAYBACK COMPENSATION CHARACTERISTICS ' NAB
ERASE RATIO 70dB
RECORDING BIAS FREQUENCY 150kHz

HEADS (4) 2—track recording GX head, 2-track playback GX head
4-track playback GX head, Full-track erase head
MOTORS (3) AC servo, oil circulating type, no-oil—supply motor with built-in CPG for

FAST-FORWARDING AND REWINDING TYPE

capstan drive x l ‘ ]
Oil-circulating type, no-oflsupply, 6-pole, eddy cerrent motor x 2
Within 120 sec (for 740m tape)

INPUT MICROPHONE (4) Optimum impedance: 600~10 kohms \
Minimum input level: 0.3mV/769dB
LINE (4) Input impedance: 100 kohm's
Minimum input level: 70mV/—21dB
OUTPUT LINE (4) Load impedance: Not less than 10 kohms
Output impedance: Not more than 100 ohms
Reference output: OdB (0.775V)
MIXER (2) Load impedance: Not less than 20 kohms
, , 7 ‘ Output impedance: Not more than 1 kohms
Output level: 300mV
HEADPHONES 50mV/8 ohms . '
LEVEL METER PEAK Conforms to DIN Standard, Response time: 0.01 sec
Meter return time: 0.8 sec
VU Conforms to BTS Standard

SEMICONDUCTORS

POWER SUPPLY

POWER CONSUMPTION

EXTERNAL DIMENSIONS (W x H x D)

WEIGHT

STANDARD ACCESSORIES

130 transistors, 4 diodes, 6 FETs and 2 le.
100V AC, 50/60Hz
116W

Mechanism section:
Amplifier section:
Mechanism section: 28.3kg

Amplifier section: 10.2kg

Metalic Size 26 (No. 10) empty reel x 1, reel hub adapter x 2,
recording connection cord x 1 set, sensing tape x 1 and

486 x 412 x 284mm
486 x 231 x 309mm

operator’s manual x 1

*Technical Data and external appearance are subject to change without notice.
* If not stated otherwise, the Technical Data are those obtained through measurements carried out in conformity with methods specified
in the Japanese Industrial Standard (JIS) and with SCOTCH #206 used as the standard tape.
