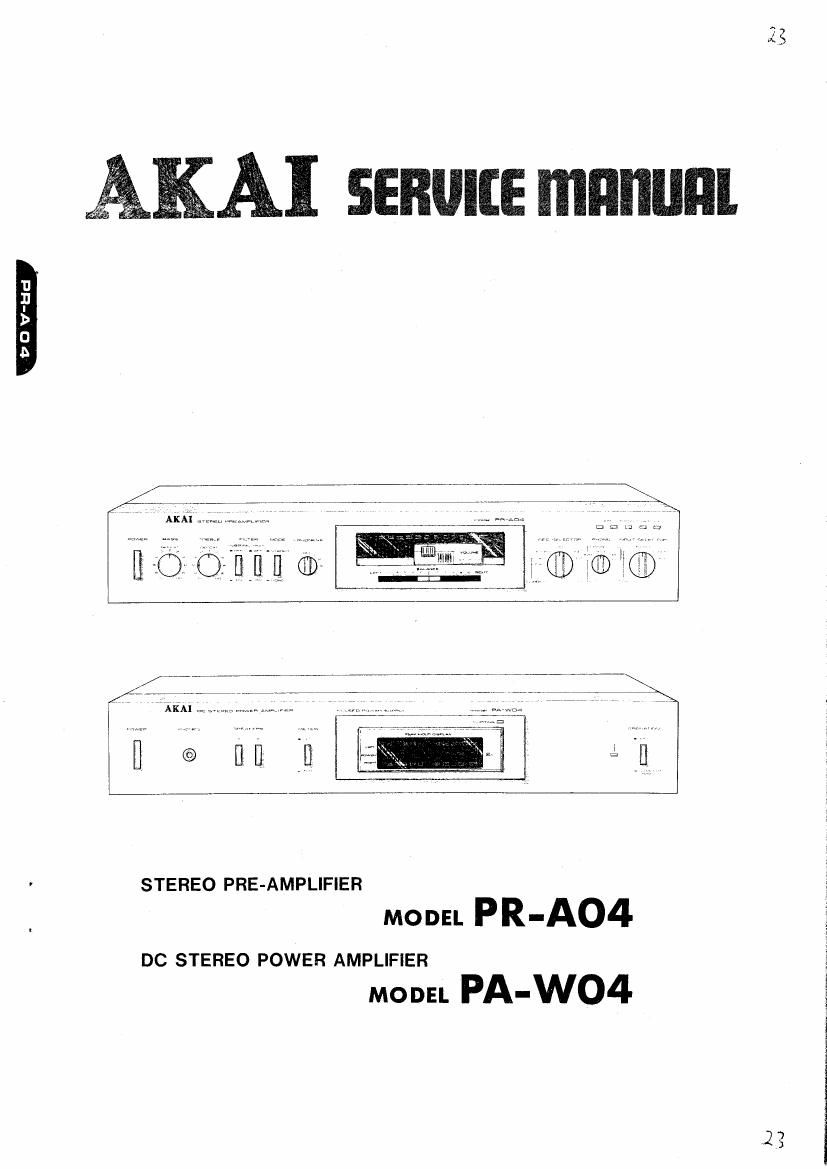

Akai PAW 04 Service Manual

Extracted text from Akai PAW 04 Service Manual (Ocr-read)


Page 2

SECTION 1
SECTION 2
SECTION 3
SECTION 4

PR~AO4

TABLE OF CONTENTS

MODEL PR-A04 ....................... 3
MODEL PA-W04 ....................... 17
PARTS LIST .......................... 33
SCHEMATIC DIAGRAM ................ 54

E
i
i

Page 42

ll. MODEL PA-WO4

1. RECOMMENDED SPARE PARTS LIST

Because, if the parts listed below are on hand, almost any repair can be accomplished, we suggest that you stock these
Recommended Spare Parts Items, ‘

Parts No. Description Notes
BA320030 Main Amp P.C Board Comp. PA-W04 (CEE) CEE, UK, SAA
BA320029 Main Amp P.C Board Comp. PA-W04 (CSA) CSA, AAL
BA320671 Main Amp P.C Board Comp. PA-W04 (U/T)

BT325299 A Power Trans. PA-W04T-30 CSA, AAL
BT325300 A Power Trans. PA-W04T40 CEE
BT325301 A Power Trans. PA-W04T-50 UK, SAA
BT325302 A Power Trans. PA-W04T-70 U/ T
BT325267 Pulse Trans. PT—W04T

EC314688 - A Ceramic/C. DE7150 FZ 0.01uF (P) 125WV CSA, AAL
EC301320 A MP/C. 4700PF (M) 250WV U/T, CEE, UK, SAA
ED562386 Germanium Diode 15188AM

ED322772 LED SLPvl 55D-01

ED322773 LED SLP-255D-01

ED323513 Silicon Diode CTU-24R

ED323512 Silicon Diode CTU-245

ED325275 Silicon Diode 55295D

ED323056 Silicon Diode 152091

ED214457 Silicon Diode 152472

ED624903 Silicon Diode 152473

ED560913 Silicon Diode 152473-VE

ED316143 Silicon Diode 152473-1-15

ED325264 Silicon Stack 3.14841

ED323057 Silicon Varister MV12

ED323573 Trigger Diode 152093

ED322810 Zener Diode WZ-040

ED323530 Zener Diode 05Z-12U

ED303156 Zener Diode 052-22U

ED324937 Zener Diode 05Z6.8U

ED322774 Zener Diode OSZSJU

EF306950 A Fuse 2A 250V U/T

EF306957 A Fuse 4A 125V CSA, AAL
EF300581 A Fuse (EAK) 2AT CEE, UK, SAA
E1322791 IC LC7556
EI325303 IC STK-OOSO (2)

EI323563 1C STK-3042
EI323564 IC TA7317P
E1323054 IC TA7322P
E1322599 IC TA754585
EI325947 05C. Trans. P.C Board Assy AM-U06
E1650261 A AC Outlet 5-16432 U/T, CSA, AAL
