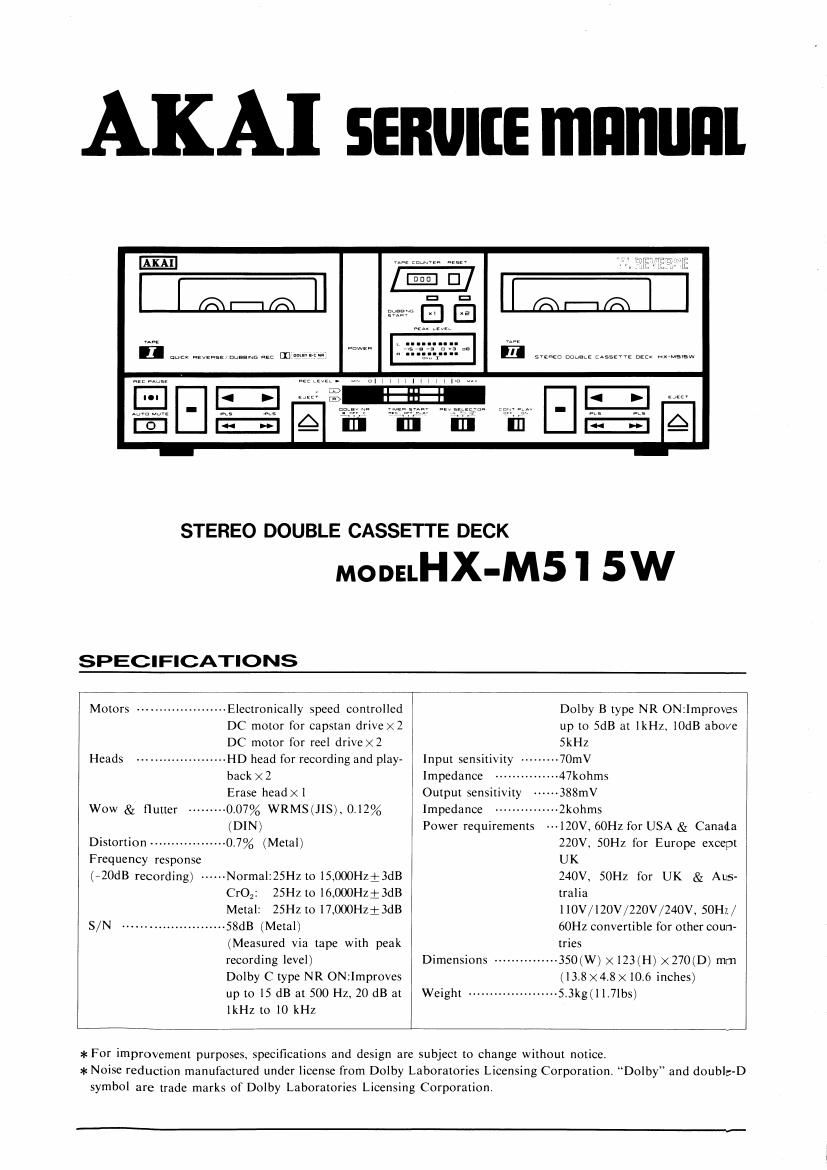

Akai HXM 515 W Service Manual

This is the 30 pages manual for Akai HXM 515 W Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 30
left right
Akai HXM 515 W Service Manual

Extracted text from Akai HXM 515 W Service Manual (Ocr-read)


Page 2

SAFETY INSTRUCTIONS

PRECAUTIONS DURING SERVICING

1. Parts identified by the A symbol parts are critical
for safety. Replace only with parts number specified.

2. In addition to safety other parts and assemblies are
specified for conformance with such regulations
asthose applying to spurious rediation.
These must also be replaced only with specified
replacements.
Examples: RF converters, tuner units, antenna selec-
tor switches. RF cables, noise blocking capacitors.
noise blocking filters, etc.

3. Use specified internal wiring. Note especially:
) Wircs covered with PVC tubing.
2) Double insulated wires
3) High voltage leads

4. Use specified insulating materials for hazardous live
parts. Note especially:
1) Insulation Tape

) PVC tubing

3) Spacers (Insulating Barriers)

) Insulation sheets for transistors

) Plastic screws for fixing mieroswitch (espe»

cially in turntable)

5. When replacing AC primary side components
(transformers. power cords. noise blocking
capacitors. etc). wrap ends of wires securely about

the terminals before soldering.

6. Observe that wires do not contact heat producing
parts (heatsinks. oxide metal film resistors. fusible
resistors, etc).

USEFUL INFORMATIONS

PRINCIPAL DESTINATION AND SYMBOLS

Symbols : Principal Distinations
Al ‘ America
B_‘ United Kingdam
5 Canada
T Europe
[J Japan
)5) Australia
U] West Germany
M l Other countries

SERVICE MANUAL

7, Check that replaced wires do not contact sharp
edged or pointed parts.

8. Also check areas surrounding repaired locations.
Use care that foreign objects (screws. solder dro-
plets, etc.) do not remain inside the set.

SAFETY CHECK AFTER SERVICING
Confirm the specified insulation resistance between
power cord plug prongs and externally exposed parts of
the set is greater than 10 Mohms, but for equipment with
external antenna terminals (tuner, receiver, etc.) and is
intended for m or E, specified insulation resistance
should be headphone jacks. line»in-out jacks etc.) more
than 2.2 Mohms (groud terminals, microphone jacks.
headphone jacks, line—in-out jacks etc.)

VOLTAGE CONVERSION (ml model only)
Before connecting the power cord, turn the VOLTAGE
SELECTOR located on the Rear panel with a screw,

driver untill the correct voltage is indicated.

VOLTAGE
SELECTOR
