Akai GXF 66 RC Service Manual

This is the 37 pages manual for Akai GXF 66 RC Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 37
left right

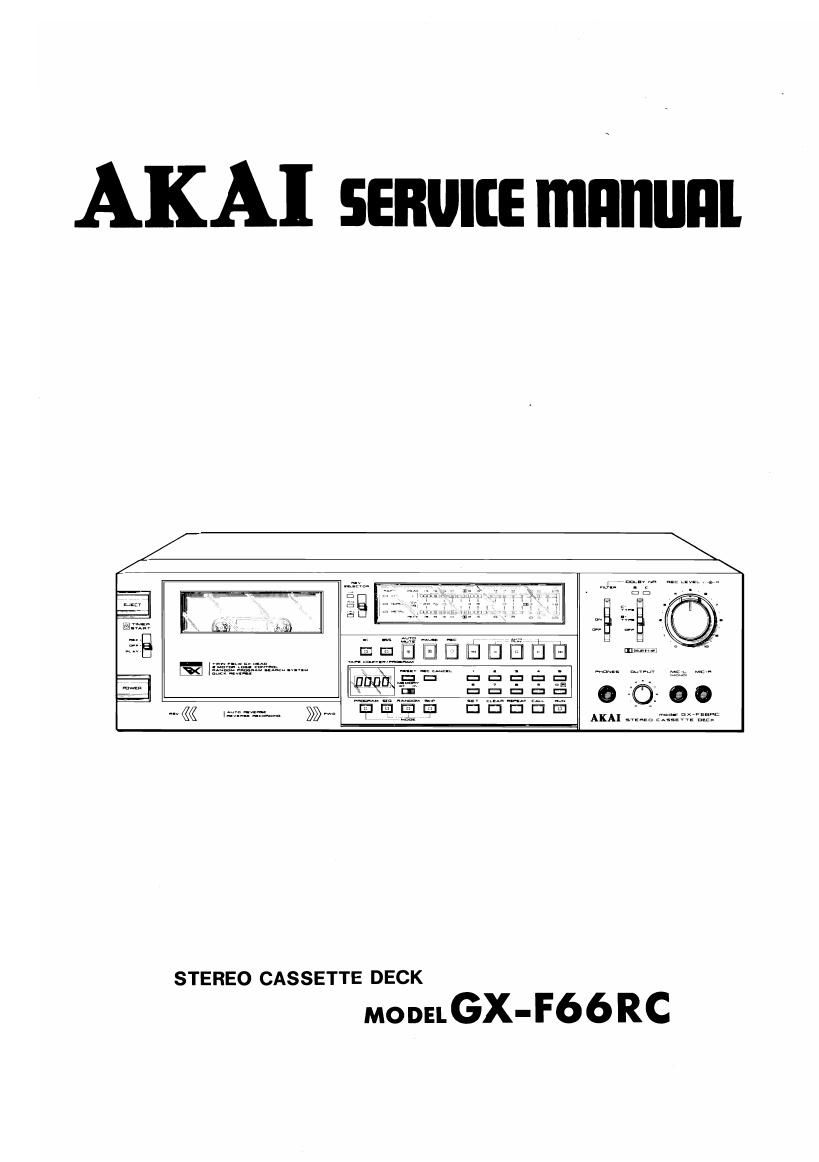

Akai GXF 66 RC Service Manual

Extracted text from Akai GXF 66 RC Service Manual (Ocr-read)


Page 5

I . SPECIFICATIONS

TRAC K SYSTEM

4 Track 2 Channel Stereo System

TAPE

Philips Type Cassette

TAPE SPEED
HEADS

4.76 cm/s :1.5%(1-7/8 ips. i1 5%)

Twin Field Super GX head for recording/playback x 1

Erase head x 2

MOTORS

Electronically speed controlled DC. motor for capstan drive x 1

DC. motor for reel drive x 1

WOW & FLUTTER

Less than 0.035% WRMS, 0.11% (DIN 45 500)

TAPE WINDING TIME

80 sec. using a C-60 cassette tape

FREQUENCY RESPONSE

SIGNAL T0 NOISE RATIO

Normal: 25 to 16,000 I-Izi3 dB (~20 VU).
00:: 25 to 17,000 Hz.+.3 dB (-20 VU).
25 to 9,000 Hzi3 dB (0 VU).

25 to 19,000 I-izt3 dB (-20 VU).
25 to 13,000 H213 dB (0 VU).
Normal: Better than 58 dB

00;: Better than 60 dB

Metal: Better than 60 dB

(measured via tape with peak recording level)

Metal:

Dolby B-type NR switch ON: Improves up to 5 dB at 1 kHz, 10

dB above 5 kHz

Dolby C-type NR switch ON: Improves up to 15 dB at 500 Hz,

20 dB at 1 kHz to 10 kHz

HARMONIC DISTORTION

Normal: Less than 0.8%
00:: Less than 0.7%
Metal: Less than 0.7%

INPUT

MIC: 025 mV (input impedance 5.0 kohms)
Required microphone impedance: 600 ohms
Line: 70 mV (input impedance 47 kohms)

OUTPUT

DIN

POWE R CONSUMPTION

line: 410 mV at 0 VU

Required load impedance: more than 20 kohms
Phone: 1.3 mW/S ohms at 0 VU

Input: 2.0 mV (input impedance 10 kohms)
Output: 410 mV

Required load impedance: more than 20 kohms
36 W

POWER REQUIREMENTS

100V, 50/60 Hz for Japan

120V, 60 Hz for USA and Canada
220V, 50 Hz for Europe except UK
240V, 50 Hz for UK and Australia

110V/120V/220V/240V, 50/60 HZ switchable for other count-

ries.

DIMENSIONS 440(W) x 118(H) x 309(D) mm
(17.3 x 4.6 x 12.2 inches)
WEIGHT 8.6 kg (190 lbs)

* For improvement purposes, speciļ¬cations and design are subject to change without notice.
* -œDolby- and the Double D symbol are trademarks of Dolby Laboratories.
(Manufactured under license from Dolby Laboratories)

Page 25

MECHA FRAME BLOCK

24
