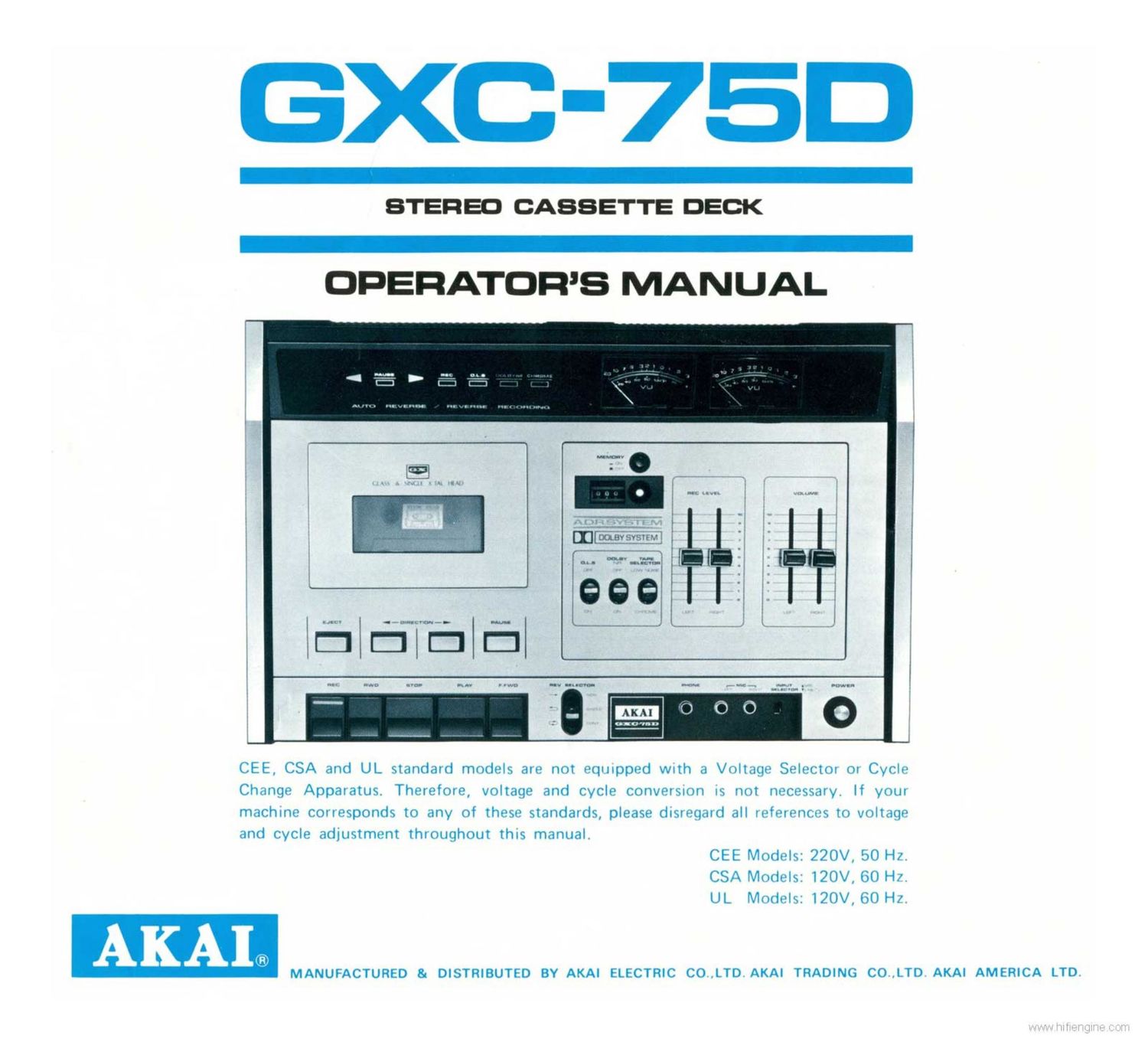

Page 1
GXC-75-
STEREO CASSETTE DECK
DPERATORS MANUAL
Ahm-
a\( \("'u\: .Yl "
_-.-n---._.
, may svsfi'fil
-OI-ICVm->
lFIlr-Ilr'llfil
CEE, CSA and UL standard models are not equipped With a Voltage Selector or Cycle
Change Apparatus. Therefore, voltage and cycle conversion is not necessary. If your
machine corresponds to any of these standards, please disregard all references to voltage
and cycle adjustment throughout this manual.
CEE Models: 220V, 50 Hz.
CSA Models: 120V, 60 Hz.
UL Models: 120V, 60 HI.
MANUFACTURED 8: DISTRIBUTED BY AKAI ELECTRIC CO.LTD.AKA| TRADING CO..LTD AKAI AMERICA LTD.
Page 2
CONNECT IONS
FOR PLAYBACK
OUT
The Din Jack can be used instead of the Line
Jacks. This enables recording or playback with
a single Din/Din connection cord. Set Din
Jack HIGH/LOW input switch to correspond
with the output of your amplifier.
" When employ~
ing Din Jack.
set Input Sele-
ctor to Ml(
position.
PLAYBACK
Connect an external amplifier/speaker system to the line output jacks
as shown in CONNECTIONS FOR PLAYBACK.
A. Connect power cord and turn on Power Switch.
B. Depress Eject Button and load a pre-recorded tape.
C. Depress forward or reverse direction Manual Reverse Button for
forward or reverse playback mode.
. Depress Play Key to being playback.
Adjust Volume Controls and external amplifier controls.
. Depress Stop Key to stop tape travel.
it Because this model employs an automatic and manual reversing
system, it is not necessary to invert cassette for playback of Side
B. (Refer to Reverse Selector under CONTROLS).
11511:;
